12 Volt Electrical System

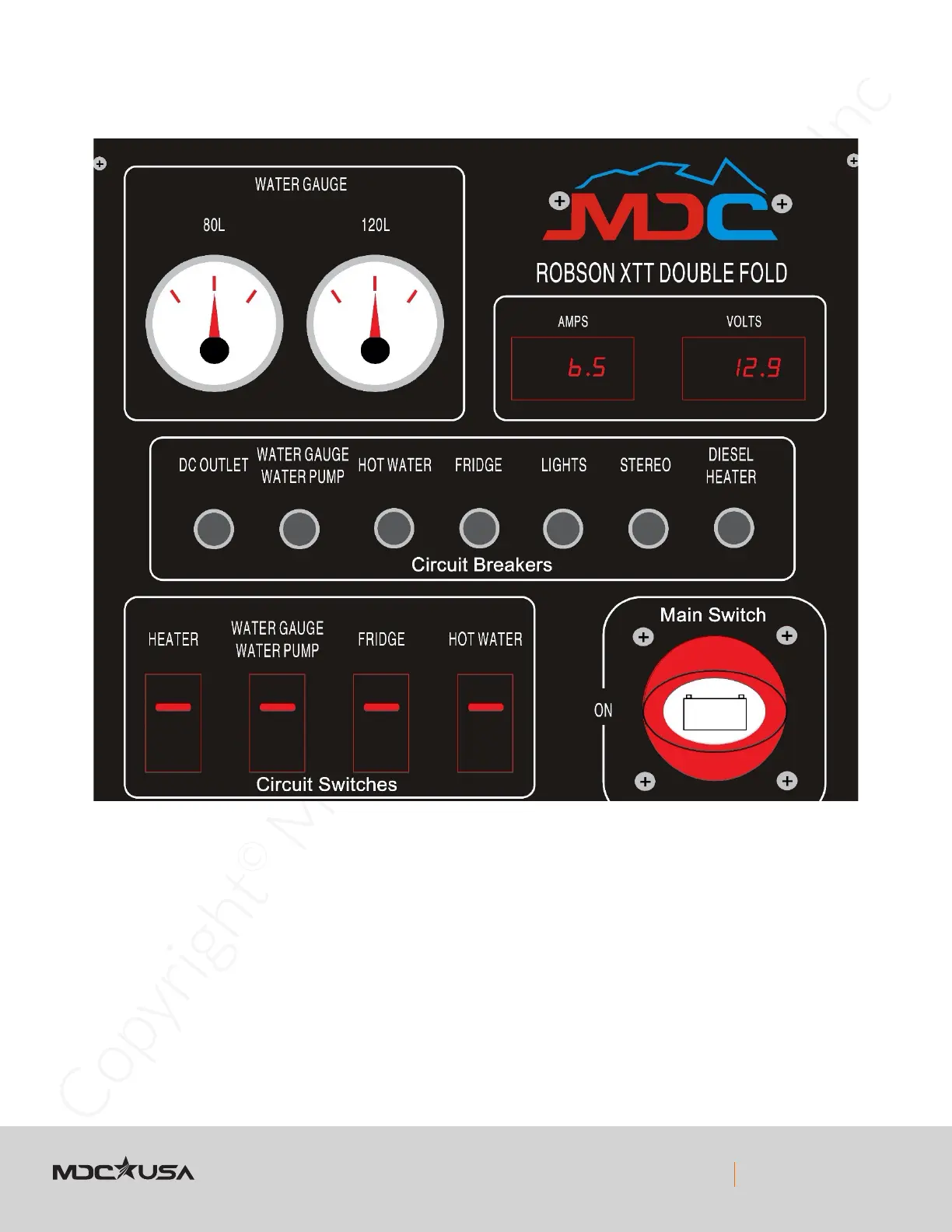

Control Panel
Control Panel Use
Main Rotary Switch: This is used to switch on or isolate the entire 12 volt system.
Circuit Breakers: The round rubber capped Circuit breakers are resettable. To reset the circuit push in the rubber cap.
Each circuit breaker is marked with applicable circuit.
Circuit Switches: Each circuit is individually switched so it may be isolated when not in use.
Voltmeter: This meter will show battery voltage/ state when not being charged and charge voltage when the charger is
activated. Resting voltage of a fully charged AGM battery bank will be 13 - 13.1 Volts.
Amp Meter: This meter will show current being drawn from the battery.
Internal Lights: The LED lights inside your trailer are individually switched on the cord of each light
