MDC ROBSON XTT - Uncoupling

www.mdcusa.com Ph: 833 632 8721
28
Uncoupling

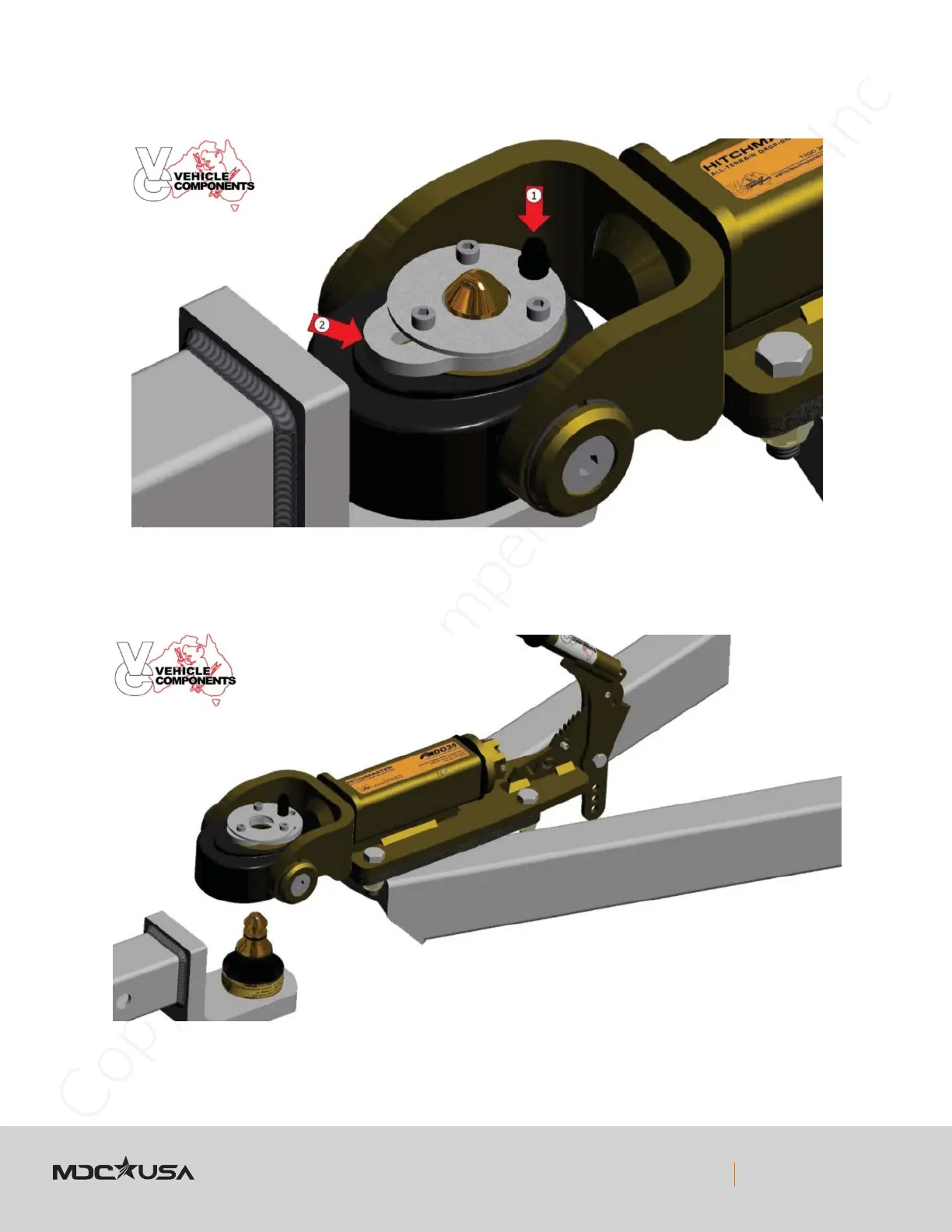

STEP 1
Push down the button 1 and push the locking mechanism back 2. When the locking mechanism is all the way back
release the button while holding the mechanism to ensure it does not spring back to the locked position.
STEP 2
Lift the coupling up off the tow pin.
