MDS GP2 - Tri-Mode Speaker Connections

FUSE
POWER
+12V
REM GND
30A
30A
+ LF -
BRIDGE
BRIDGE
+ RF -
+ LR -
+ RR -
4 Ohm Speaker4 Ohm Speaker
4 Ohm Speaker4 Ohm Speaker

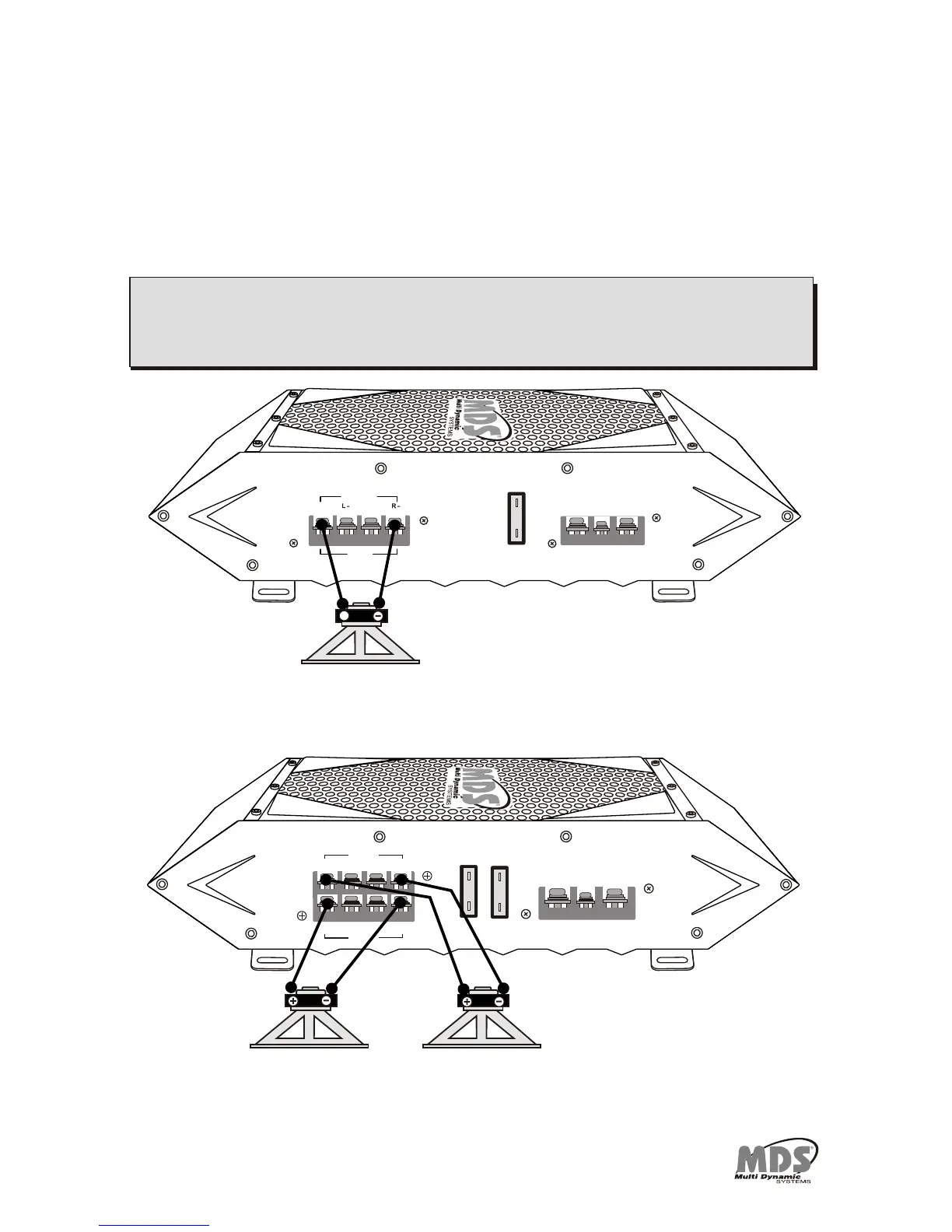

TWO CHANNEL BRIDGED SPEAKER CONNECTIONS
FOUR CHANNEL BRIDGED SPEAKER CONNECTIONS
SPEAKER CONNECTIONS (BRIDGED)
The MDS amplifiers are capable of being bridged in a mono configuration. This feature
allows you the flexibility of using the amplifier to drive a ** subwoofer or a center channel.
In this configuration the amplifier sums the right and left channel to deliver one channel
(mono) output.
Please note: in order for the amplifier to sum right and left signal information, both right
and left RCA connections must be made.
**CAUTION! In the bridged mode, the amplifier must see a 4 Ohm load or higher. Any
lower than 4 Ohms will cause the amplifier to overheat and possibly cause permanent damage
to the amplifier!
12
SPEAKERS
FUSE
POWER
+12V
REM GND
20A
L+
R+
BRIDGE
++
4 Ohm Speaker4 Ohm Speaker
