SPEAKERS
FUSE
POWER
+12V
REM GND
20A
L+
R+
BRIDGE
CAUTION! In Tri- mode operation, the amplifier must see a 2 Ohm load or higher for the
stereo satellites and no lower than 4 Ohms for the subwoofer(s). Any lower than the above
mentioned impedance will cause the amplifier to overheat and possibly cause permanent
damage to the amplifier.

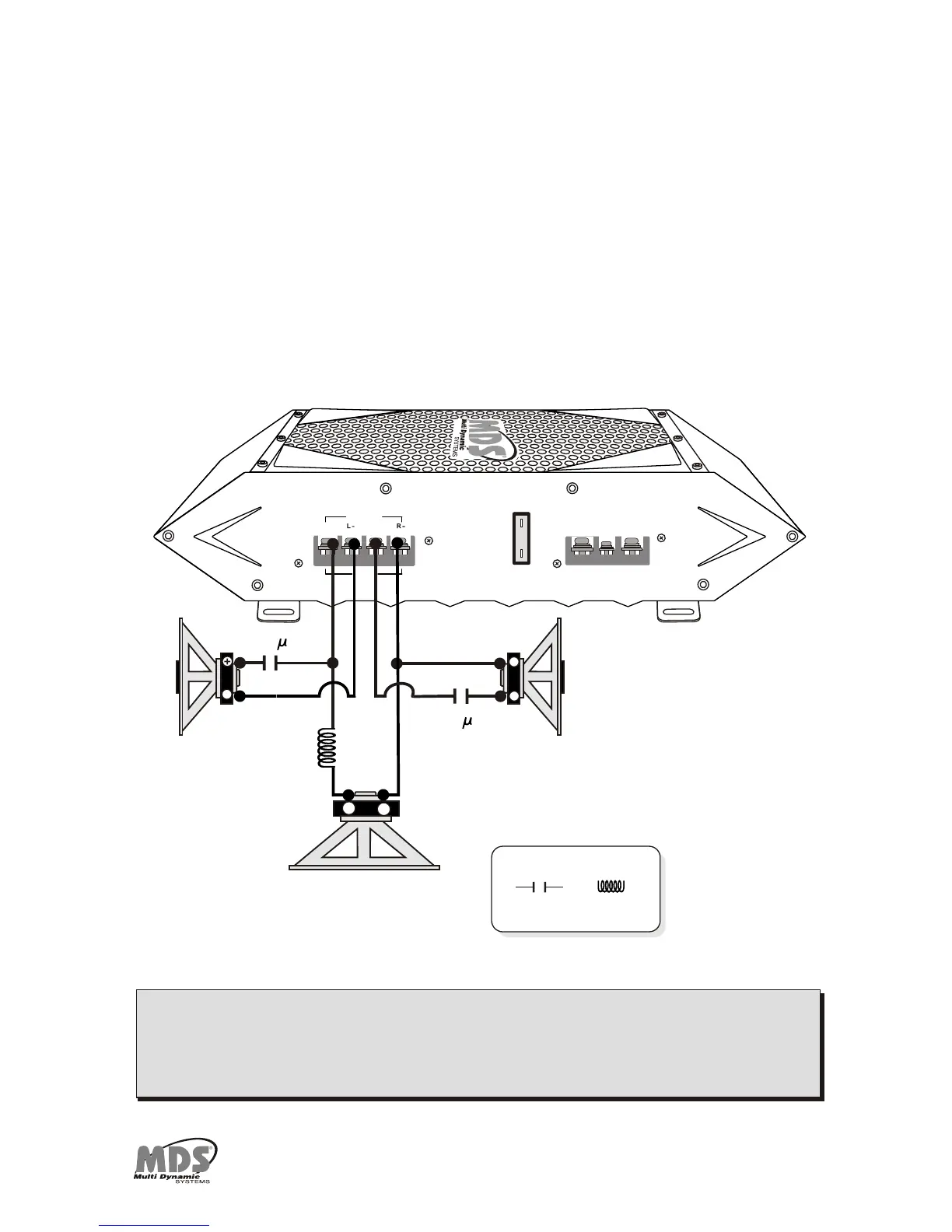

SPEAKER CONNECTIONS (TRI-MODE)
NON-POLAR
CAPACITOR
NON-POLAR
CAPACITOR
INDUCTOR
(COIL)
INDUCTOR
(COIL)
LEGENDLEGEND
FF100100
++
--
FF100100
++
--
--
4 mH4 mH
Left
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
Left
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
Mono Woofer
8 Ohm
(4 Ohm Minimum)
Mono Woofer
8 Ohm
(4 Ohm Minimum)
Right
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
Right
Mid / Tweeter
4 Ohm
(2 Ohm Minimum)
13
The amplifier is capable of running in a Mono / Stereo mode. This feature gives the
amplifier the ability to run stereo satellites (midbass & tweeter) simultaneously with a
mono subwoofer.
These connections are more complicated because they require the use of passive
crossover networks (Not provided) to divide the frequencies to the speakers. We have
included a sample diagram for 4 Ohm connections. If you wish to use multiple speakers
to achieve a lower impedance and higher power, it is strongly recommended that you
seek professional advice from your MDS retailer before attempting to make these
connections.
Please Note: In the Tri-mode configuration, the amplifier’s built-in crossover must be set
to the ”FULL” position so the speakers receive full range output.
