MDS GP3 - SPEAKER CONNECTIONS; TWO CHANNEL SPEAKER CONNECTIONS; FOUR CHANNEL SPEAKER CONNECTIONS

FUSE
POWER
+12V
REM GND
30A
30A
+ LF -
BRIDGE
BRIDGE
+ RF -
+ LR -
+ RR -
SPEAKERS
FUSE
POWER
+12V
REM GND
20A
L+
R+
BRIDGE
Make the speaker connections using speaker wire that is at least 16 gauge or heavier.
As with any audio component, proper phasing of the amplifier and speakers is essential
for strong bass response. When connecting, make sure that positive (+) from the
amplifier is connected to the positive (+) of the speaker, and the same for negative (-).

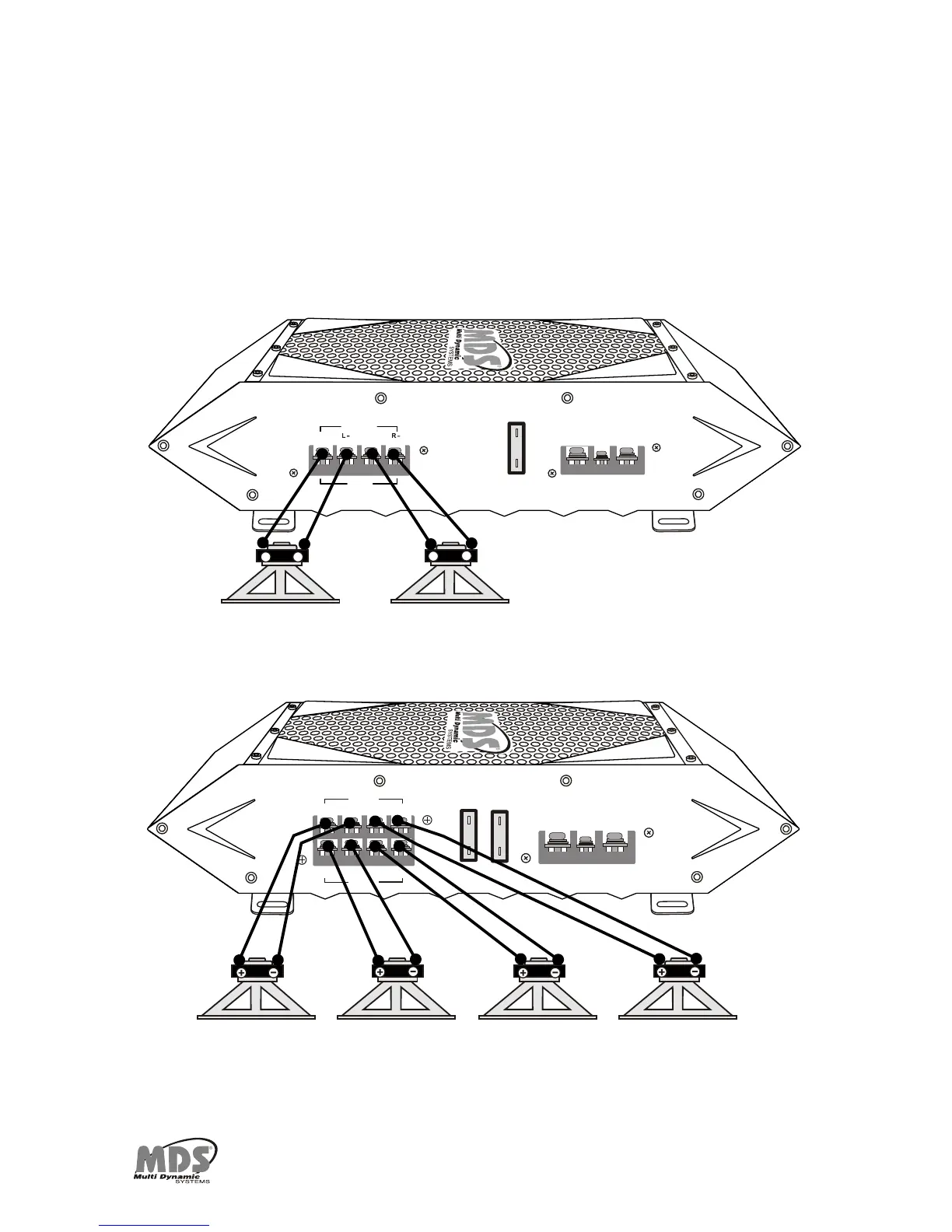

SPEAKER CONNECTIONS
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
FOUR CHANNEL SPEAKER CONNECTIONS
11
TWO CHANNEL
SPEAKER CONNECTIONS
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
++
--
++
--
