BASS BOOST
REMOTE
12dB
OdB
HIGH PASS LOW PASS
50Hz 400Hz
10Hz 40Hz
LEVEL
0.2V
5V
POWER
INPUT
L
R
PROTECT

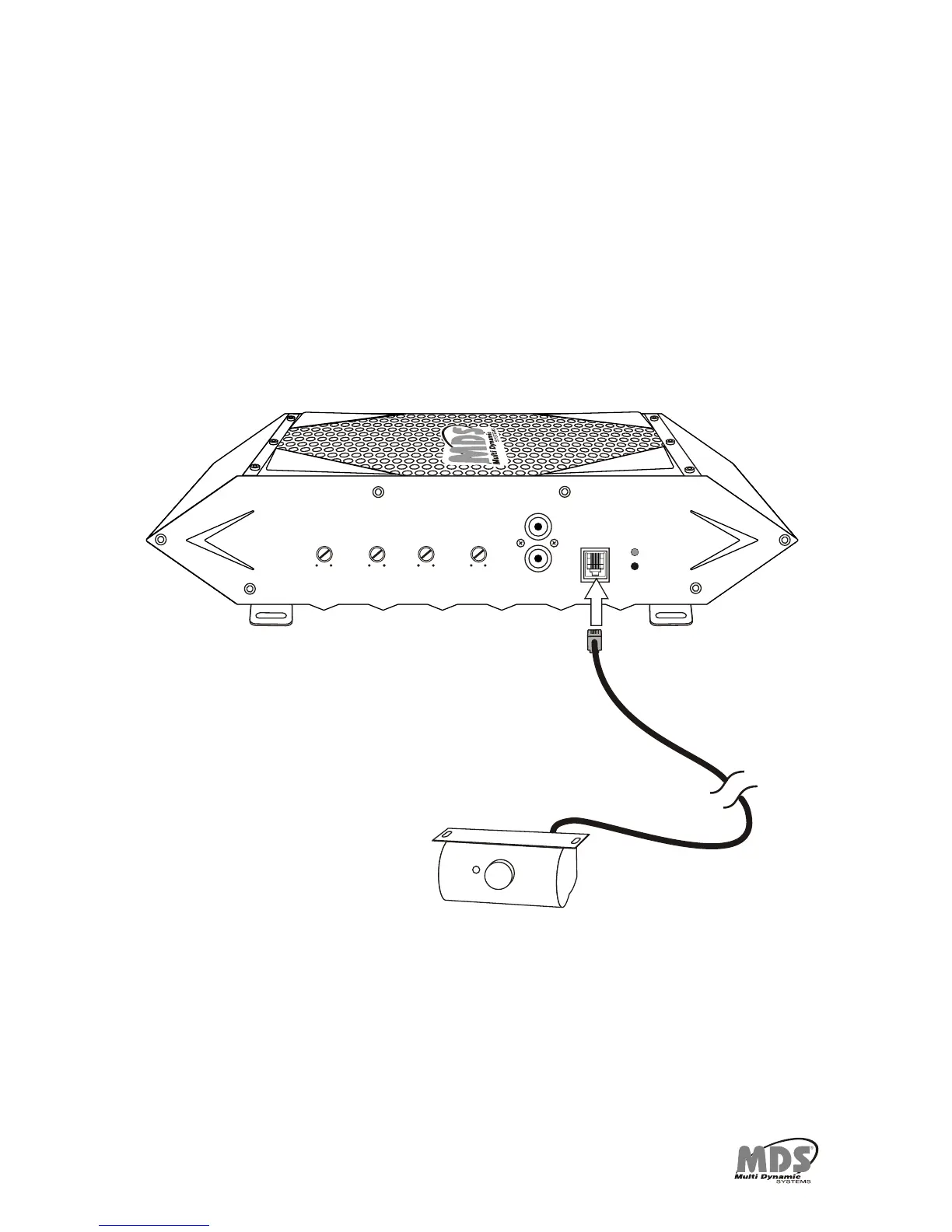

REMOTE BASS CONTROL MODULE
Before connecting the remote, it will be necessary to find a mounting location that will be
easy to access for adjustment. Once you select your mounting location, you will need to
run the control wire from the remote to the amplifier. To avoid possibility of induced noise
from the car's electrical system (i.e. popping noises or engine noise), run the cable from
the remote to the amplifier away from the car's electrical wiring.
Please note: Once the remote is plugged in, it overrides the bass boost on the amplifier
and becomes the primary bass adjustment.
10
