BASS BOOST
REMOTE
12dB
OdB
HIGH PASS LOW PASS
50Hz 400Hz
10Hz 40Hz
LEVEL
0.2V
5V
POWER
INPUT
L
R
PROTECT
SIGNAL CONNECTIONS
8
SIGNAL CONNECTIONS

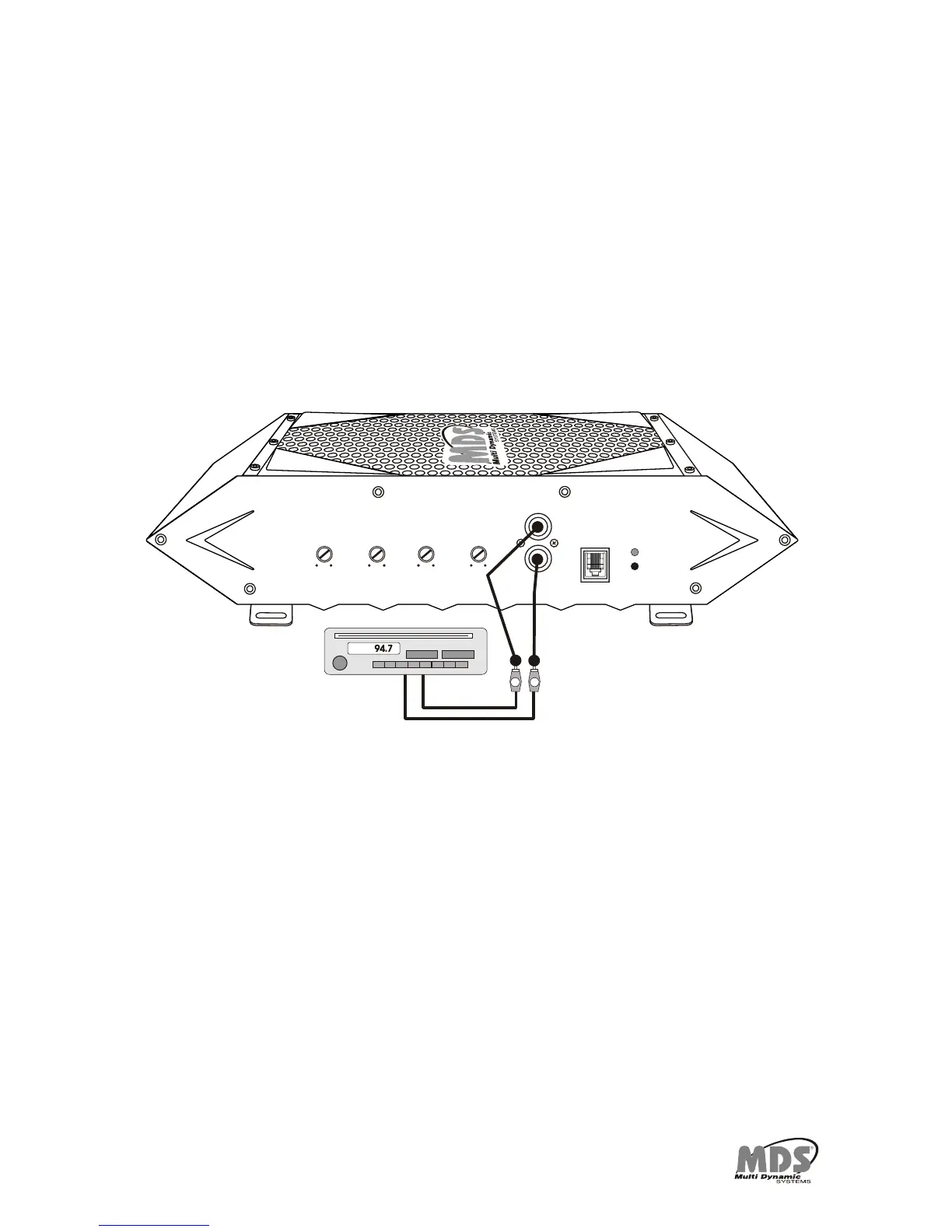

Connect the RCA output of the head unit (AM/FM cassette player, CD, or DAT) to
the RCA input terminals of the amplifier.
To make these connections, we recommend high quality RCA cables, which are
available at your local car audio retailer. Run signal wires away from electrical wires to
avoid possibility of induced noise from the car's electrical system (i.e. popping noises or
engine noise). Please note that when making these connections the signal inputs
correspond with the speaker outputs.
LLRR
