MDS Mosfet C2 - Speaker Connections (Bridged)

4 Ohm Speaker4 Ohm Speaker 4 Ohm Speaker4 Ohm Speaker

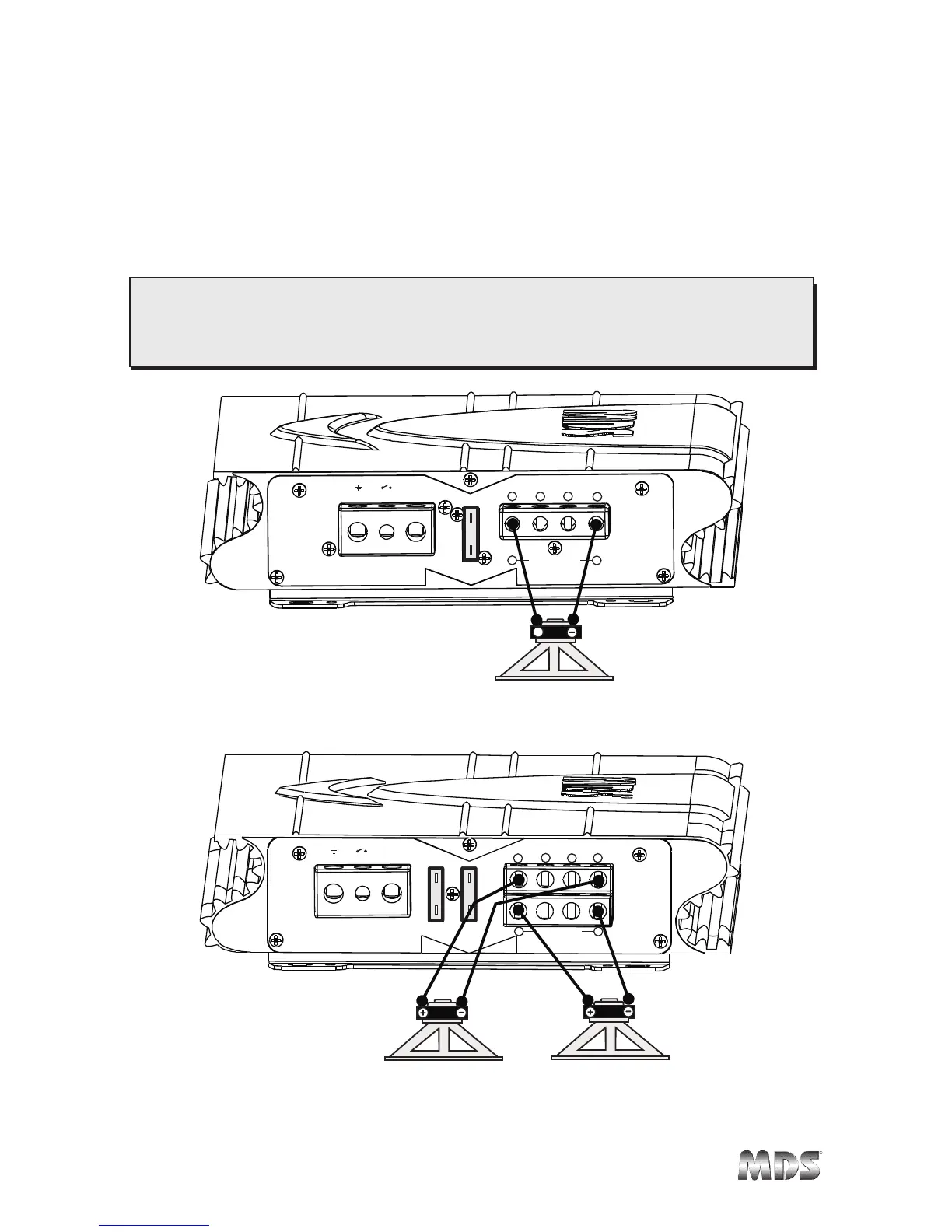

TWO CHANNEL BRIDGED SPEAKER CONNECTIONS
FOUR CHANNEL BRIDGED SPEAKER CONNECTIONS
SPEAKER CONNECTIONS (BRIDGED)
The MDS amplifiers are capable of being bridged in a mono configuration. This feature
allows you the flexibility of using the amplifier to drive a ** subwoofer or a center channel.
In this configuration the amplifier sums the right and left channel to deliver one channel
(mono) output.
Please note: in order for the amplifier to sum right and left signal information, both right
and left RCA connections must be made.
**CAUTION! In the bridged mode, the amplifier must see a 4 Ohm load or higher. Any
lower than 4 Ohms will cause the amplifier to overheat and possibly cause permanent damage
to the amplifier!
