MDS Mosfet C2 - Speaker Connections

FUSE
BRIDGE MODE
+12V
20A
R
L
SUPPLY
REMOTEGROUND
-
+
-
-
+
+
25A 25A
BRIDGE MODE
SPEAKERS
FRONT
REAR
R
L
+
-
-
+
-
+
FUSE
+12V
SUPPLY
REMOTEGROUND
Make the speaker connections using speaker wire that is at least 16 gauge or heavier.
As with any audio component, proper phasing of the amplifier and speakers is essential
for strong bass response. When connecting, make sure that positive (+) from the
amplifier is connected to the positive (+) of the speaker, and the same for negative (-).
SPEAKER CONNECTIONS
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)

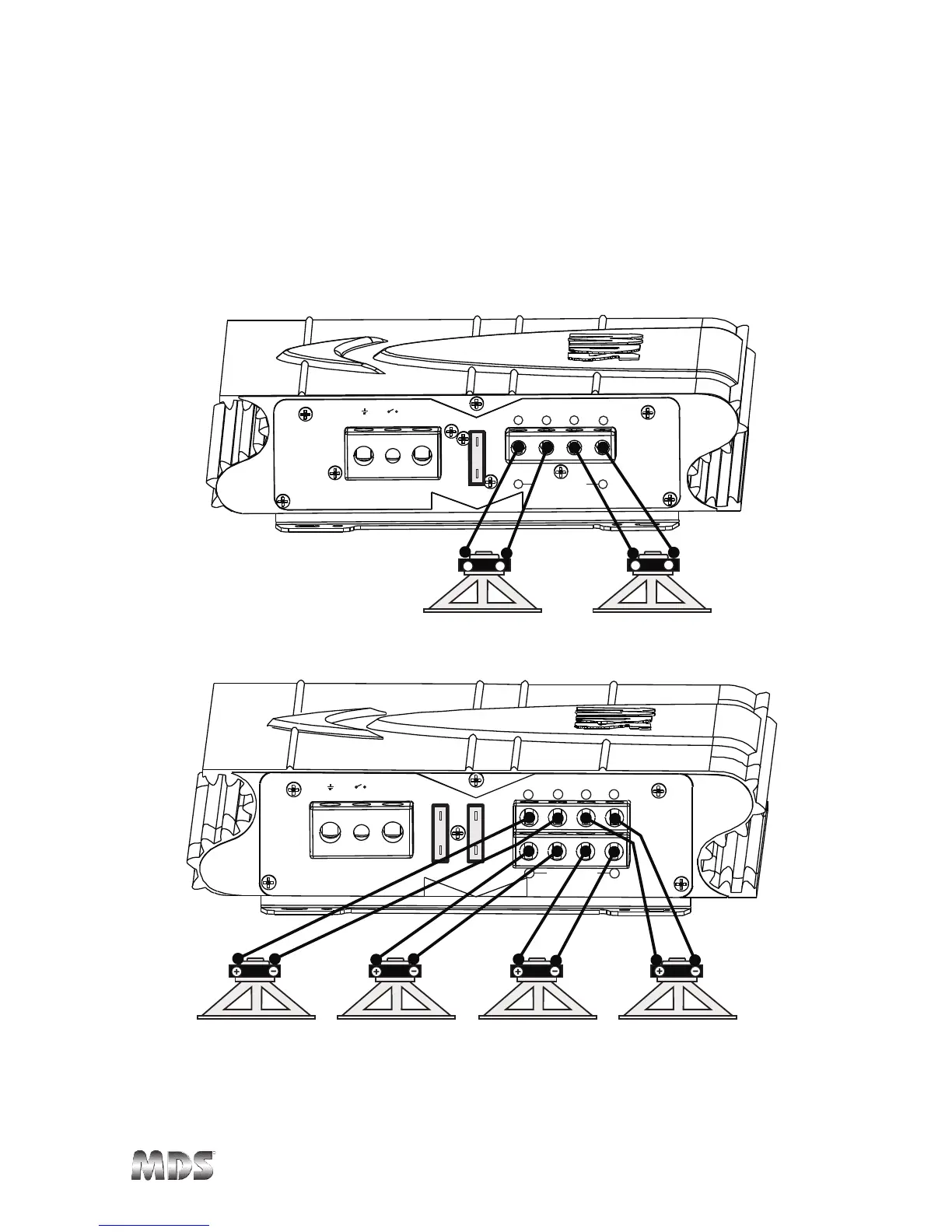

FOUR CHANNEL SPEAKER CONNECTIONS
9
TWO CHANNEL
SPEAKER CONNECTIONS
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
++
--
++
--
