MEA Incorporated | Hawk Actuator Instruction and Operation Manual
02/2018
13
The heat output of the heat tracing, shown below, is self-regulating and dependent on ambient
temperature.

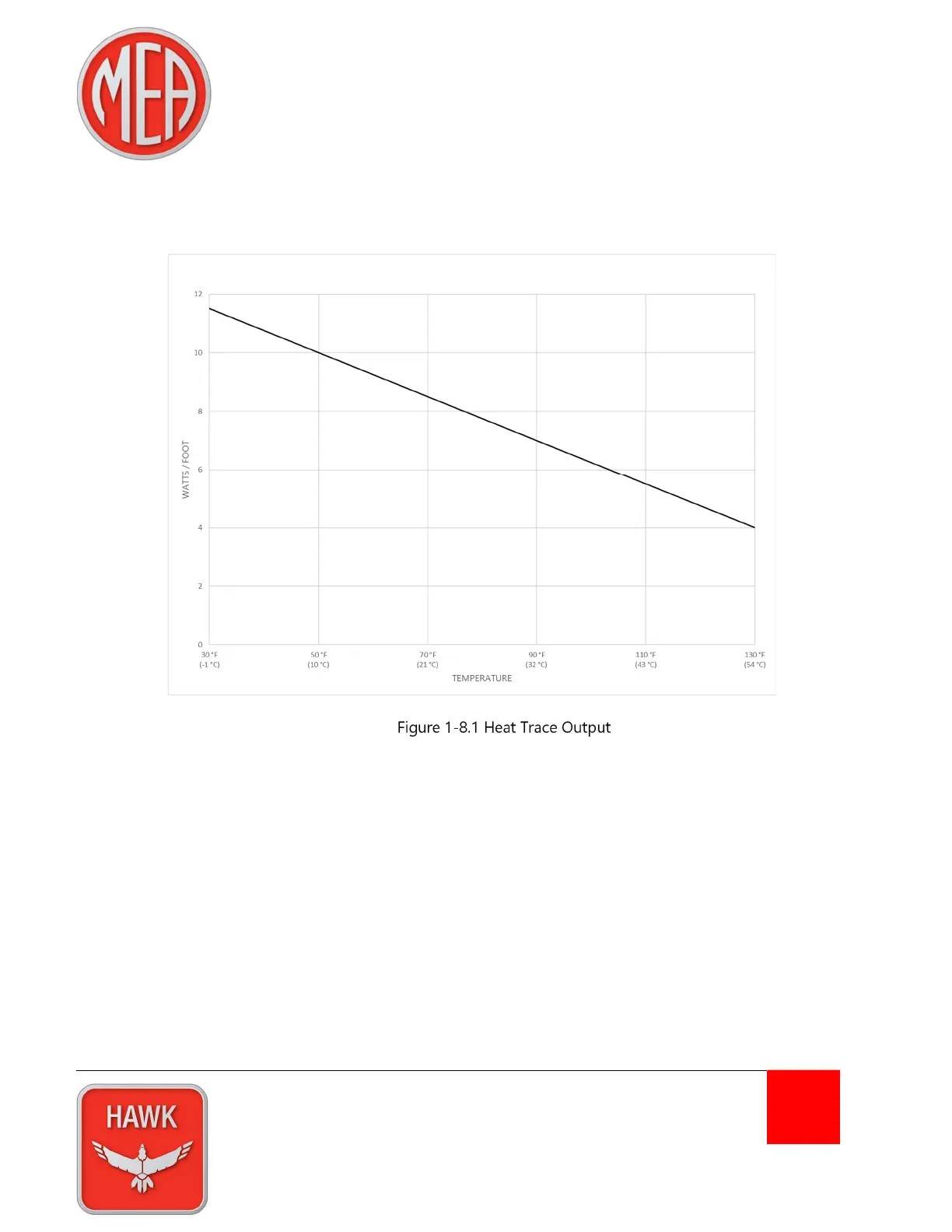

Figure 1-8.1 Heat Trace Output
1-9 Special Tool Requirements
The following tools required for Hawk installation and maintenance may be considered special. Standard
hand tools are used for all other installation and maintenance procedures.
Hydraulic Fluid Fill Gun
Nitrogen Fill Kit (Only applicable to actuators with Accumulator or Safe Seat features)
