MEA Incorporated | Hawk Actuator Instruction and Operation Manual
02/2018
23
4-3 Control Signal and Position Calibration
Prior to operation the HAWK actuator stroke endpoints and corresponding control signal inputs must be
calibrated. For units controlled by 4-20 mA analog control signals the control can be configured as open
on increasing signal (20 mA = open, 4 mA = closed) or close on increasing (4 mA = open, 20 mA =
closed). The Hawk controls will scale the input accordingly. To set the actuator position calibration
perform the following procedure:
1) Power the Hawk Control Enclosure and confirm the HMI boots up. Press the Login button and
login using the Admin username and password.

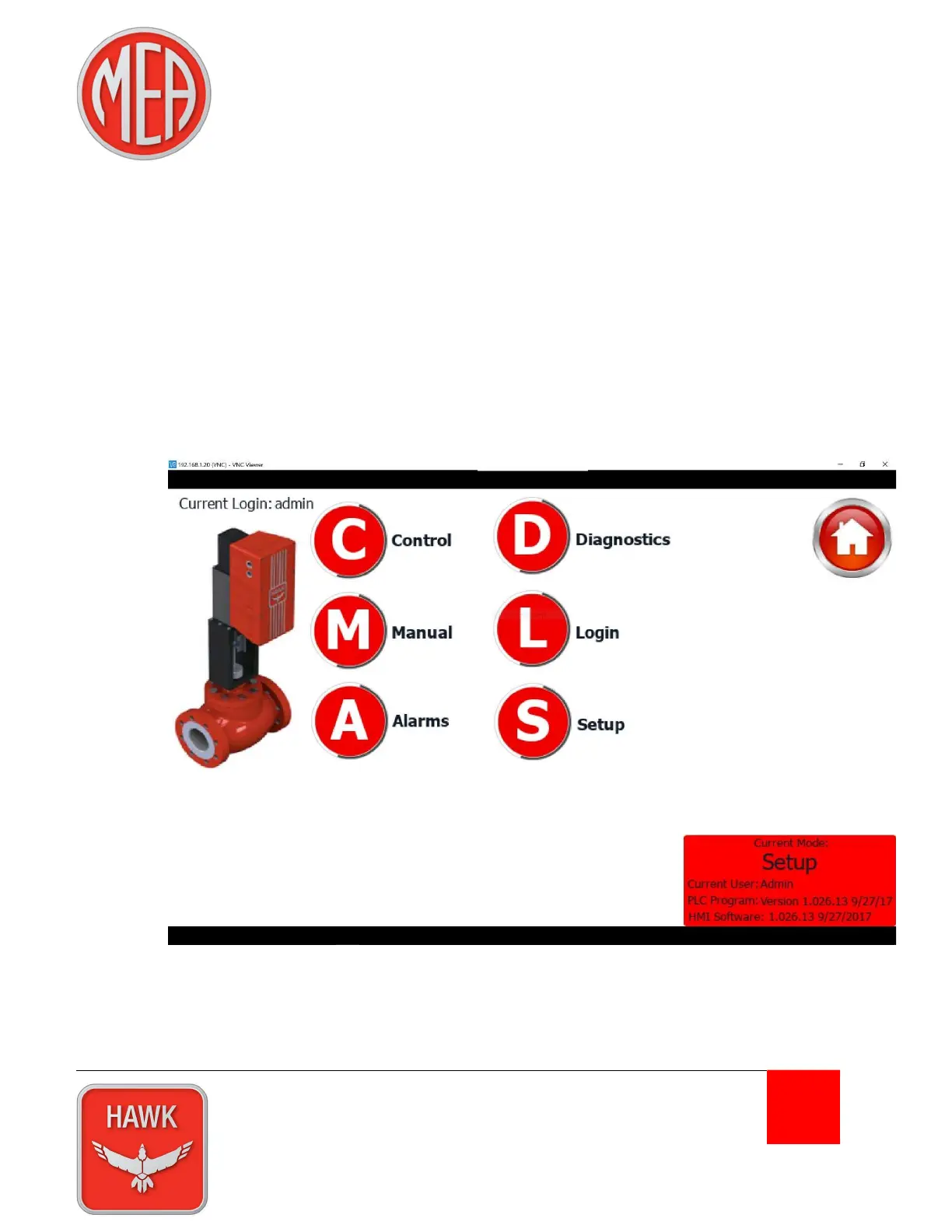

2) Return to the Home screen, which should now include a Setup button. Press the Setup button.
