"2033ES / 2633ES" Service & Parts Manual - ANSI Specifications October 2008
Page 3-7
Rear Wheel Brakes
Remove
1. Raise and support the rear end of machine (see
Raising the Machine
).
2. Remove the wheel and tire assembly to access brake.
3. Disconnect hose assemblies from the brake.
4. Remove the relief valve.
5. Remove the cap screws and remove the brake from the housing.
Replace
Installation is reverse of removal.

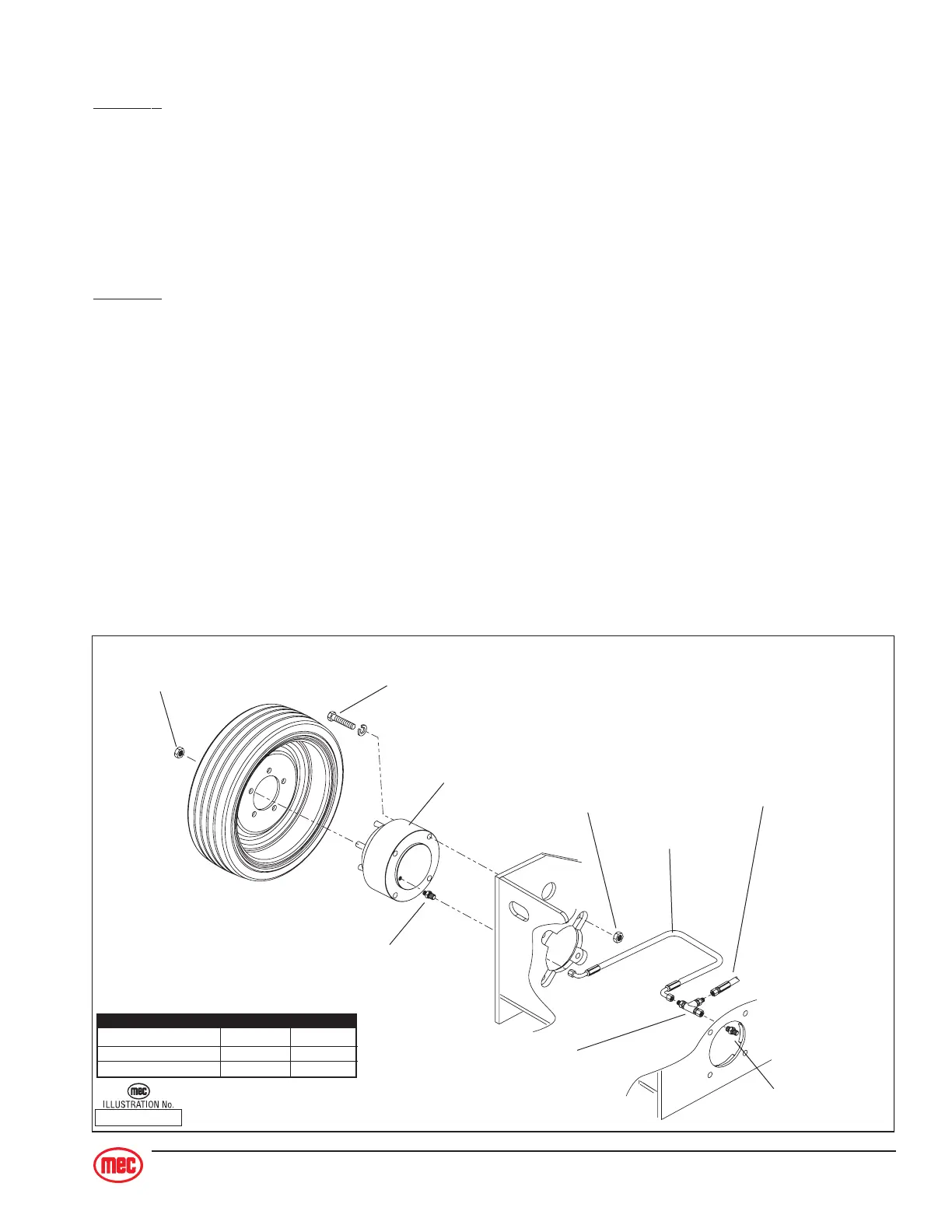

ART_2188
TORQUE Ft. lbs. Nm
Lug Nuts 75 - 85 102 - 115
Brake Mount Bolts 65 - 72 88 - 97.5
Brake
Female to Male
Hose Adapter
Female to Male
Hose Adapter
Mounting Nut (4 each)
Brake Hose
Brake to Manifold
Hose
“T” Fitting
(male-male-female)
Lug Nut
(5 each)
Mounting Bolt
(4 each)
TO PORT 5
To Next Page
