"2033ES / 2633ES" Service & Parts Manual - ANSI Specifications October 2008
Page 5-9

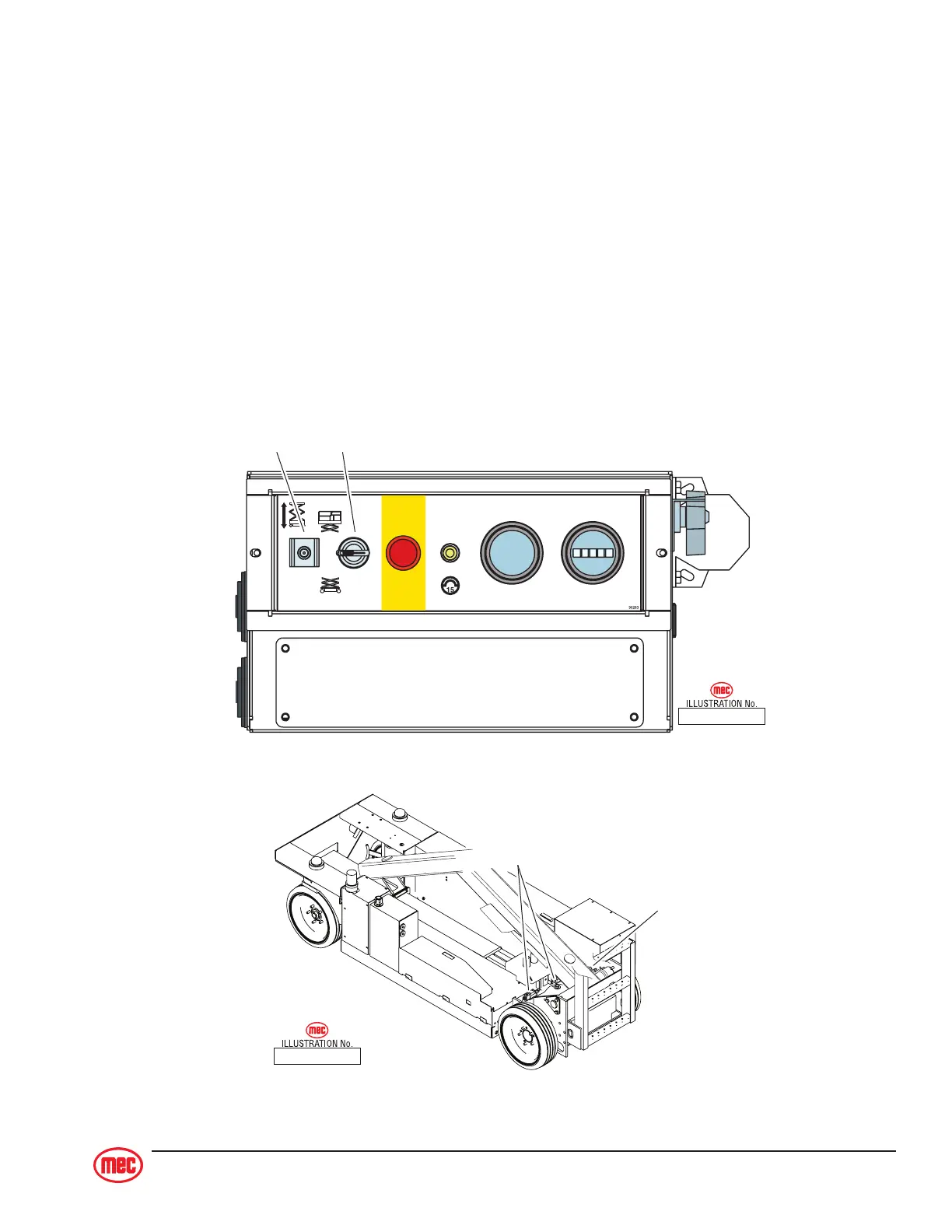

ELECTRIC SCHEMATICS
NOTES: (Unless otherwise specified)
1. Switch S1 BASE/PLATFORM makes contact from the CENTER to the LEFT position
when placed in BASE.
2. Switch S2 UP/DOWN makes contact from the CENTER to the LEFT position when the
switch is held in the CONTACT position and automatically returns to the CENTER position
when released.
3. Switch LS1 breaks the N/C set of contacts and makes the N/O set of contacts when the
platform reaches approximately 7 feet.
4. Switch LS2 and LS3 makes the N/C set of contacts when the Pothole Bars are down and
locked in place.
S1S2
ART_2236
ART_2244
LS1
LS2 & LS3
To Next Page
