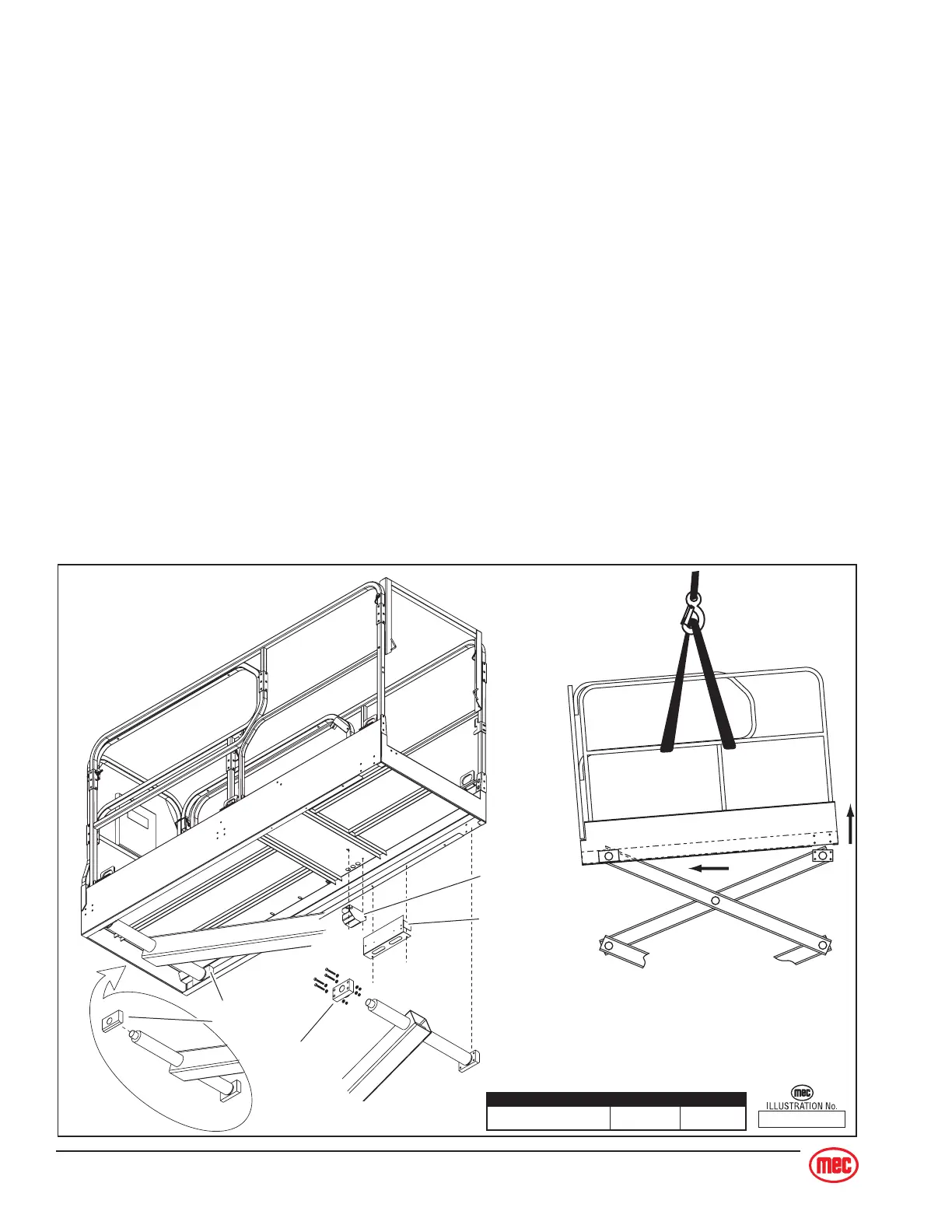

TORQUE Ft. lbs. Nm
Fixed Block Bolts 86 - 96 116 - 180
Terminal Srtip
Cover
Slide Block
Fixed Block
Horn
(option)
Platform Removal
1. Raise platform and support with the maintenance lock (see
General Safety Tips)
.
2. Connect overhead crane by appropriate lifting device to platform.
3. Remove the terminal strip cover and disconnect all platform wires. Remove any compo-
nents that will obstruct the scissor slide path.
4. Remove the bolts from both fixed blocks at the rear of the platform.
5. Lift the rear of the platform until the fixed blocks are clear.
6. Slide the platform assembly forward until the slide blocks align with the slide track open-
ing at the rear of the platform.
7. Remove the platform assembly.
8. Installation is reverse of removal.
