Mec 3084RT - Page 206

Page 199 Speed Level Series - Service & Parts Manual
January 2019Section 11 - Controls

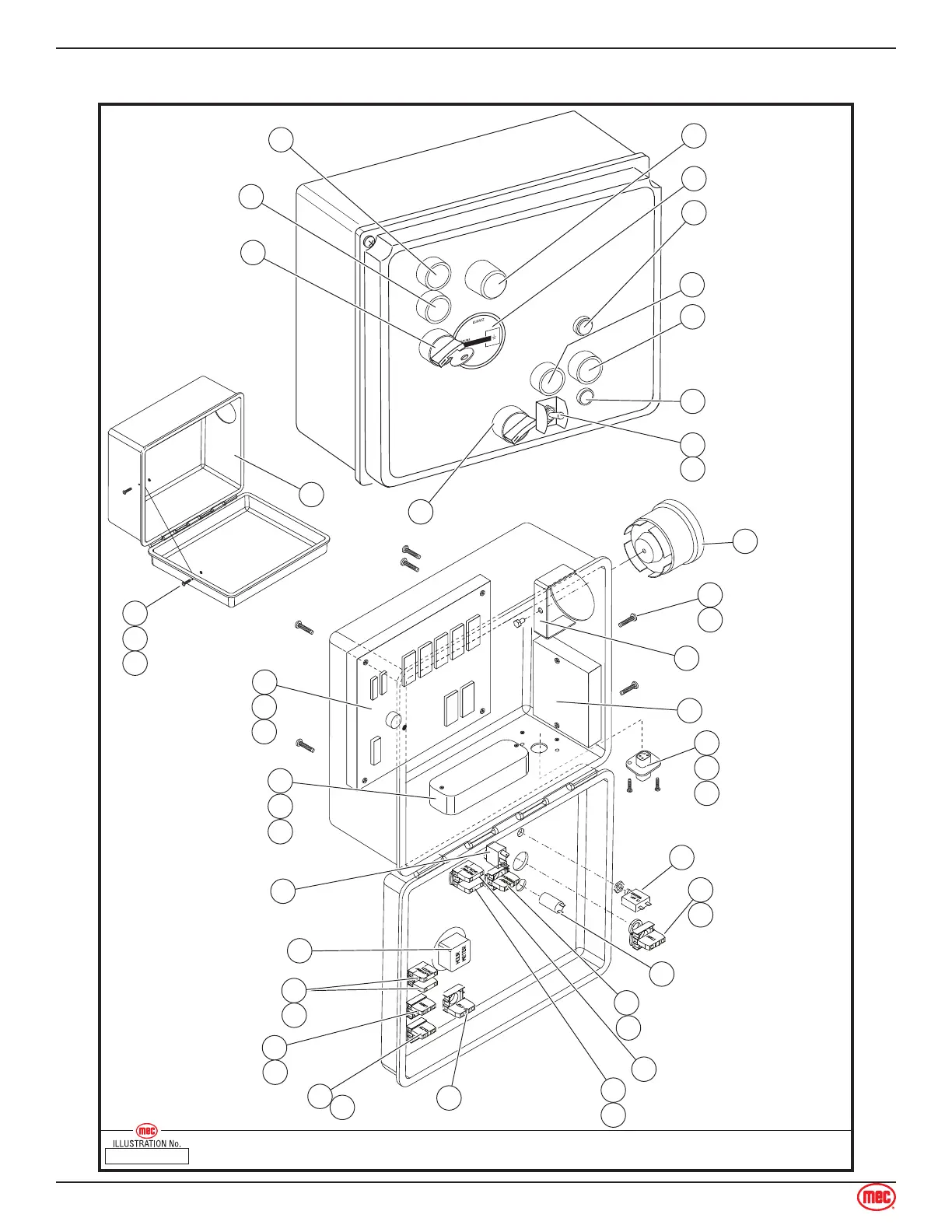

Lower Controls, 3084RT Dual Fuel Models
ART_3076
Lower Controls, Dual Fuel
15
Emergency Stop
Hour Meter
Hour Meter
Circuit Breaker
Emergency Lower
Toggle Switch
Emergency Lower
Toggle Switch
Emergency Stop
(complete switch)
Circuit Breaker
TBM
Alarm
Platform / Base
Selector Switch
Platform / Base - N.O.
GP400
Connector
Start - N.O.
Choke - N.O.
Lower (Green)
Raise (Green)
Start (Green)
30 Sec Delay (Red)
30 Sec Delay (Red)
Choke (Black)
Lower - N.O.
Raise - N.O.
Fuel Select
Gasoline - N.C.
10
Propane - N.O.
11
24
22 x2
23 x2
19
22 x2
23 x2
20 x4
21 x4
20 x2
21 x2
22 x2
23 x2
2
2
7
7
3
5
25
2
4
17
11
4
17
11
11
8
12
13
14
15
16
6
6
8
9
18
9
1
17
17
17
11 x2
17
11
