Mec Micro 19-XD - Platform Controls

Page 15 Micro 19-XD - Operator’s Manual
July 2020Section 7 - Components and Controls

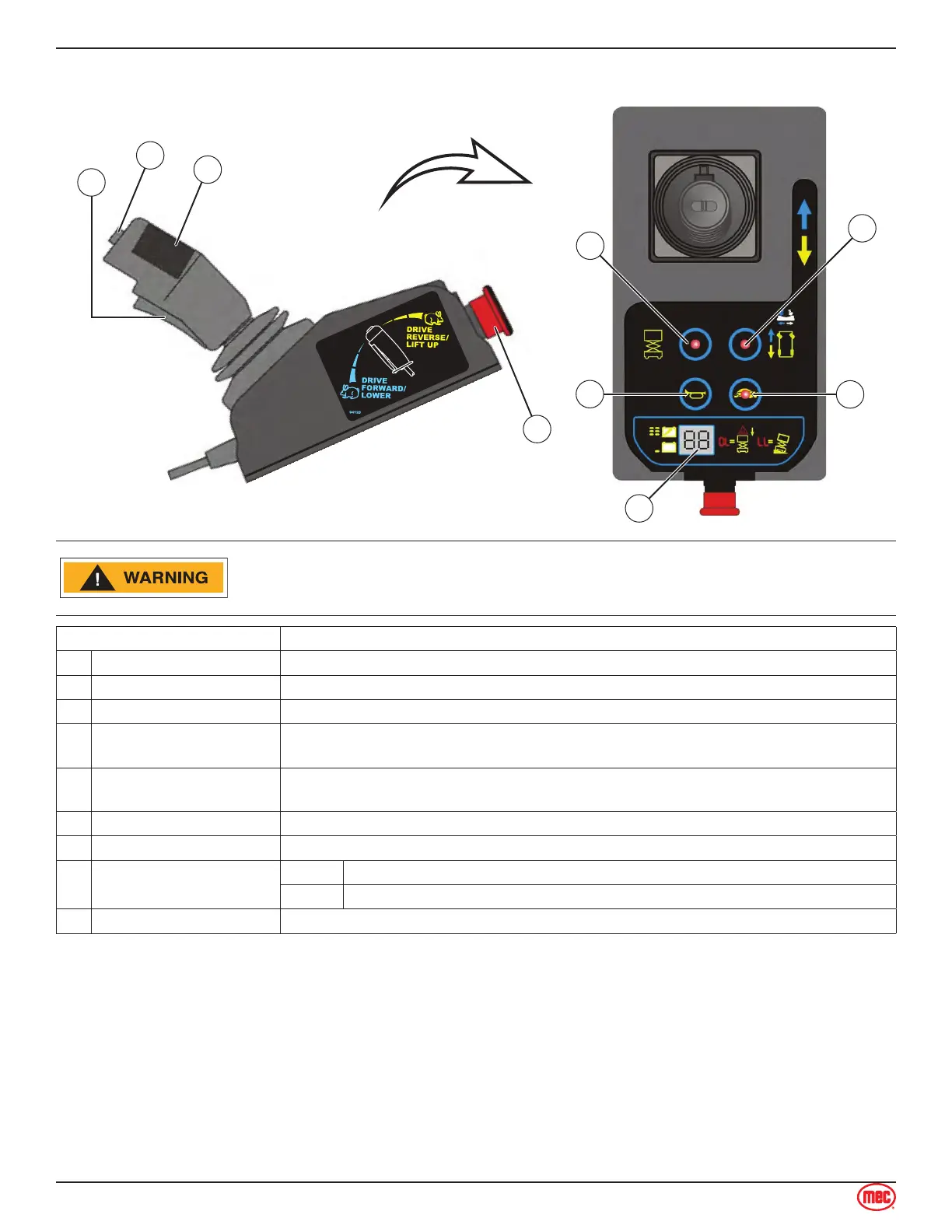

Platform Controls
1
8
4
6
5
7
3
2
9
Art_5534
ALWAYS be aware of the machine’s position and of your surroundings
before activating any control function.
Control Description
1 Thumb Rocker Switch Press the thumb rocker switch in either direction to activate steer function.
2 Drive Select Press this button to select the drive function.
3 Drive Speed Button Press this button to activate the slow or fast drive function.
4 Emergency Stop Switch
Press the EMERGENCY STOP switch at any time to stop all machine functions.
Turn the button clockwise to the on position to operate the machine.
5 LED Display
Indicates the state of battery charge and displays diagnostic codes when
necessary.
6 Horn Button Press to sound warning horn.
7 Lift Select Press this button to select the Lift function.
8
Proportional Control
Handle
DRIVE Proportionally controls Forward and Reverse travel.
LIFT Proportionally controls Lift and Lower functions.
9 Function Enable Switch Function Enable Switch for LIFT & DRIVE & STEER functions.
Lift function: Press the Lift Select switch. Squeeze the Function Enable Switch then move the
control handle in the direction indicated by the yellow arrow and the platform will raise. Squeeze the
Function Enable Switch then move the control handle in the direction indicated by the blue arrow and
the platform will lower. The descent alarm will sound while the platform is lowering.
Drive function: Press the Drive Select switch. Squeeze the Function Enable Switch then move the
control handle in the direction indicated by the blue arrow on the control panel and the machine will
move in the direction that the blue arrow points. Squeeze the Function Enable Switch then move the
control handle in the direction indicated by the yellow arrow on the control panel and the machine will
move in the direction that the yellow arrow points.
