Mec Micro 19-XD - Lower Controls

Page 16 Micro 19-XD - Operator’s Manual
July 2020Section 7 - Components and Controls

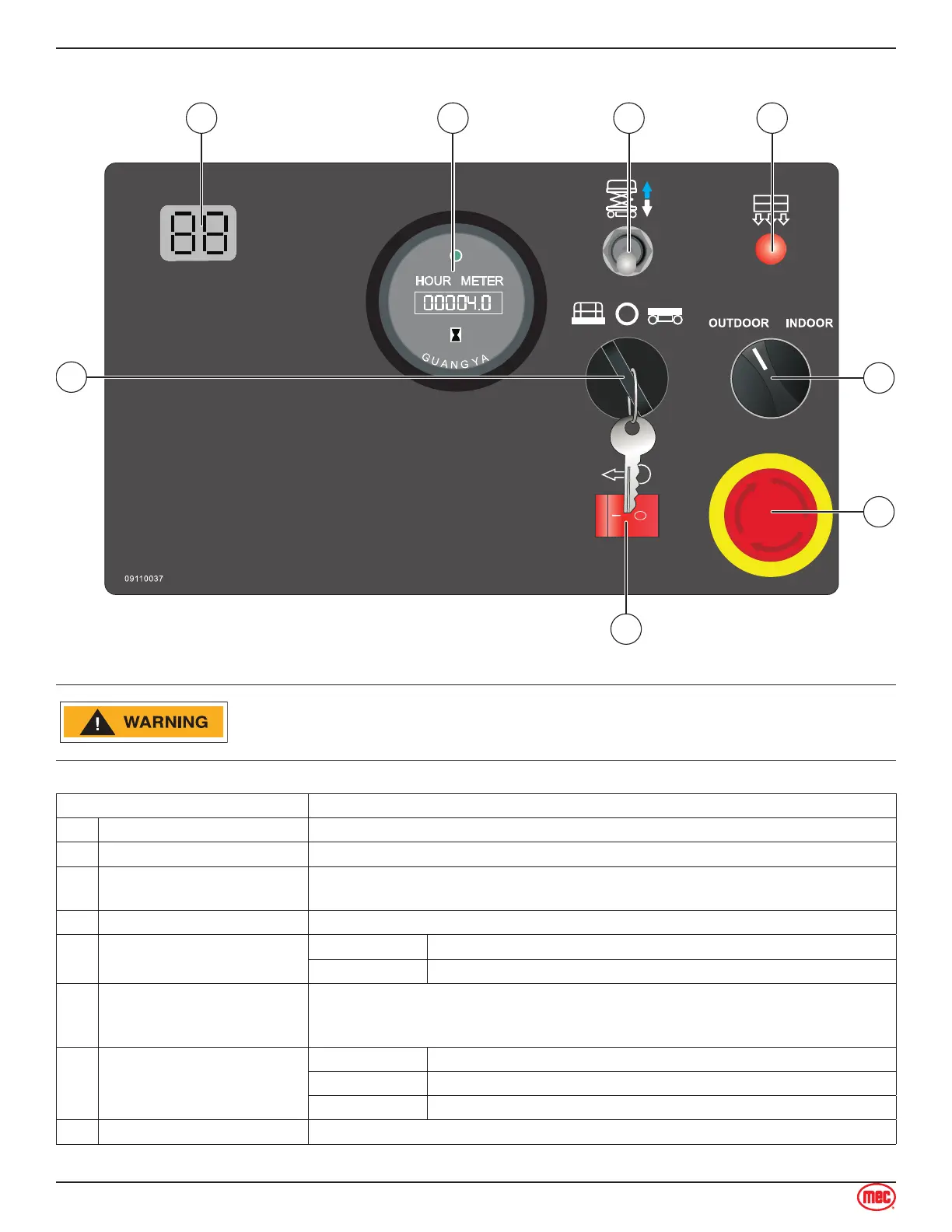

Lower Controls
1 3 4
5
6
8
2
7
Art_5587
ALWAYS be aware of the machine’s position and of your surroundings
before activating any control function.
Control Description
1 LED Displays diagnostic codes when necessary.
2 Hour Meter The hour meter displays the number of hours the machine has operated.
3
Platform Lift / Lower
Switch
With the Key Switch in the BASE position, move this switch up to lift the
platform or down to lower the platform.
4 Indicator Light ON indicates that machine system is powered up and functioning.
5 Outdoor/Indoor Switch
OUTDOORS Select to limit the maximum height when outdoors.
INDOORS Select to allow unrestricted height when indoors.
6 Emergency Stop Switch
Press the EMERGENCY STOP switch at any time to stop all machine
functions.
Turn button clockwise to the on position to operate the machine.
7 Key Switch
PLATFORM Select to operate from the platform control panel.
BASE Select to operate from the base control panel.
OFF Select to stop operation from either control panel.
8 Brake Release Switch See page 39 for instructions.
