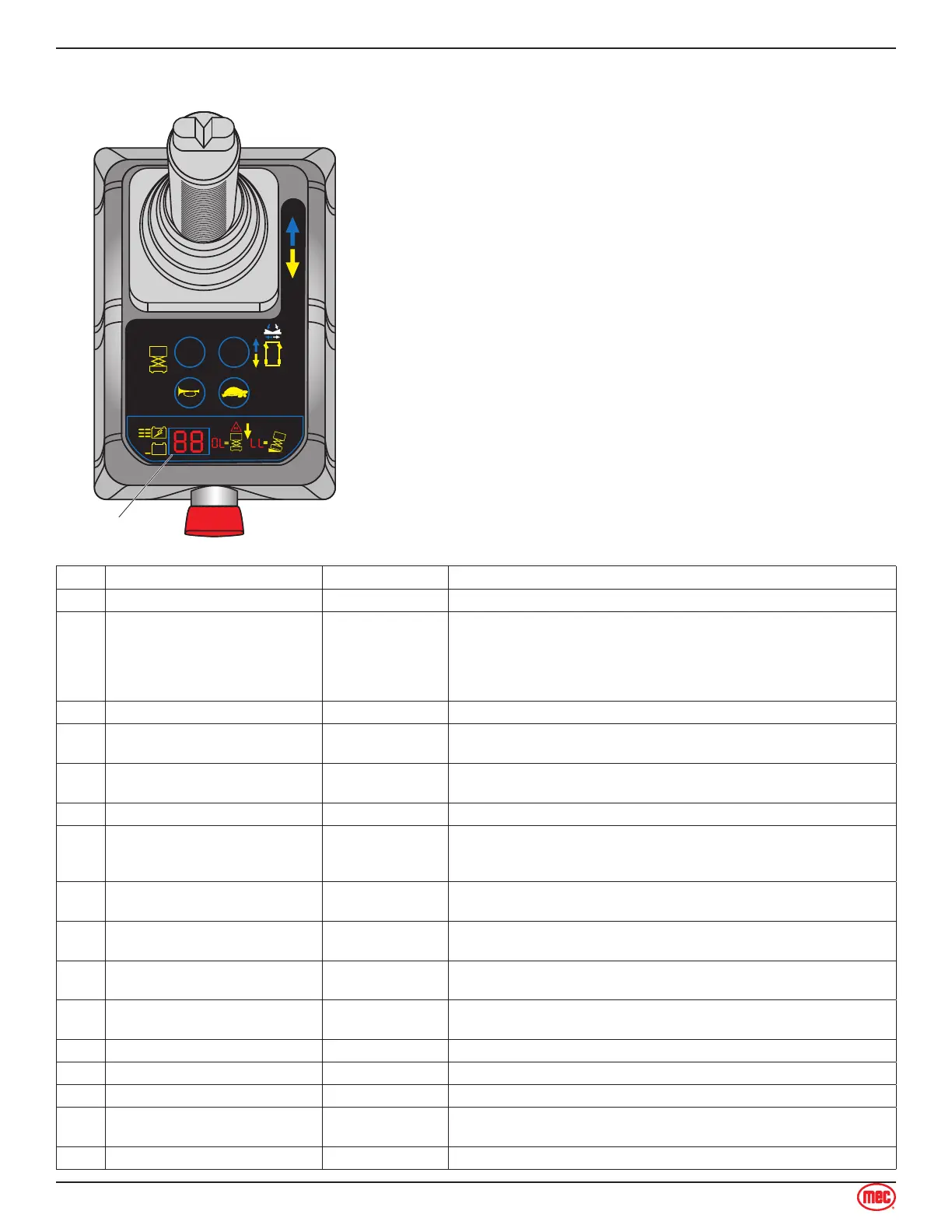

Fault Codes
ART_5126
LED Indicator
Upper Controls
Fault Codes, when present, appear on the LED Indicator at the
Upper Controls station.
Fault Description Models Solutions
01/10 System Initialization Fault All Models Check the ECU.
02/20 System Communication Fault All Models
Check the platform control.
Check the wiring on platform connector.
Check the ECU.
Check the battery.
Check the relay on ground control.
1.
2.
3.
4.
5.
03 Invalid Option Setting All Models Reset the option code.
12
Chassis Up or Down Switch ON
at power-up Fault
All Models
Check the wiring on toggle switch.
Check the toggle switch.
1.
2.
18 Pothole Guard Fault All Models
Check the pothole board and switches.
Check the speed switch.
1.
2.
31 Pressure Sensor Fault Micro 19 Check option code.
32 Angle Sensor Fault All Models
Check wiring to angle sensor.
Normal voltage range is 1.9-3.8V.
Check the option code.
1.
a.
1.
42 Left turn switch ON at power-up All Models
Check the left steer button.
Check the platform controller.
1.
2.
43
Right Turn Switch ON at power-
up
All Models
Check the right steer button.
Check the platform controller.
1.
2.
46
Joystick Enable Switch ON at
power-up
All Models
Wait several seconds when turn on the lift.
Check the joystick dead-man switch.
1.
2.
47
Joystick not in neutral at power-
up
All Models
Check the joystick.
Check the platform controller.
1.
2.
52 Drive Forward Coil Fault All Models Check the option code.
53 Drive Reverse Coil Fault All Models Check the option code.
54 Lift Up Coil Fault All Models Check the lift solenoid and wiring.
55 Lift Down Coil fault All Models
Check the down solenoid and wiring.
Check scissor harness for crushed or pinched wires.
1.
2.
56 Right Turn Coil Fault All Models Check the right steering solenoid and wiring.
