MediaKind RX8000 - ASI;HD-SDI;SD-SDI out Connector (RX8200 Only); ASI;SDI out Connector; CVBS Connector

RX8000 Integrated Receiver/Decoders
1553-FGB 101 759 Uen K
www.mediakind.com
2-6

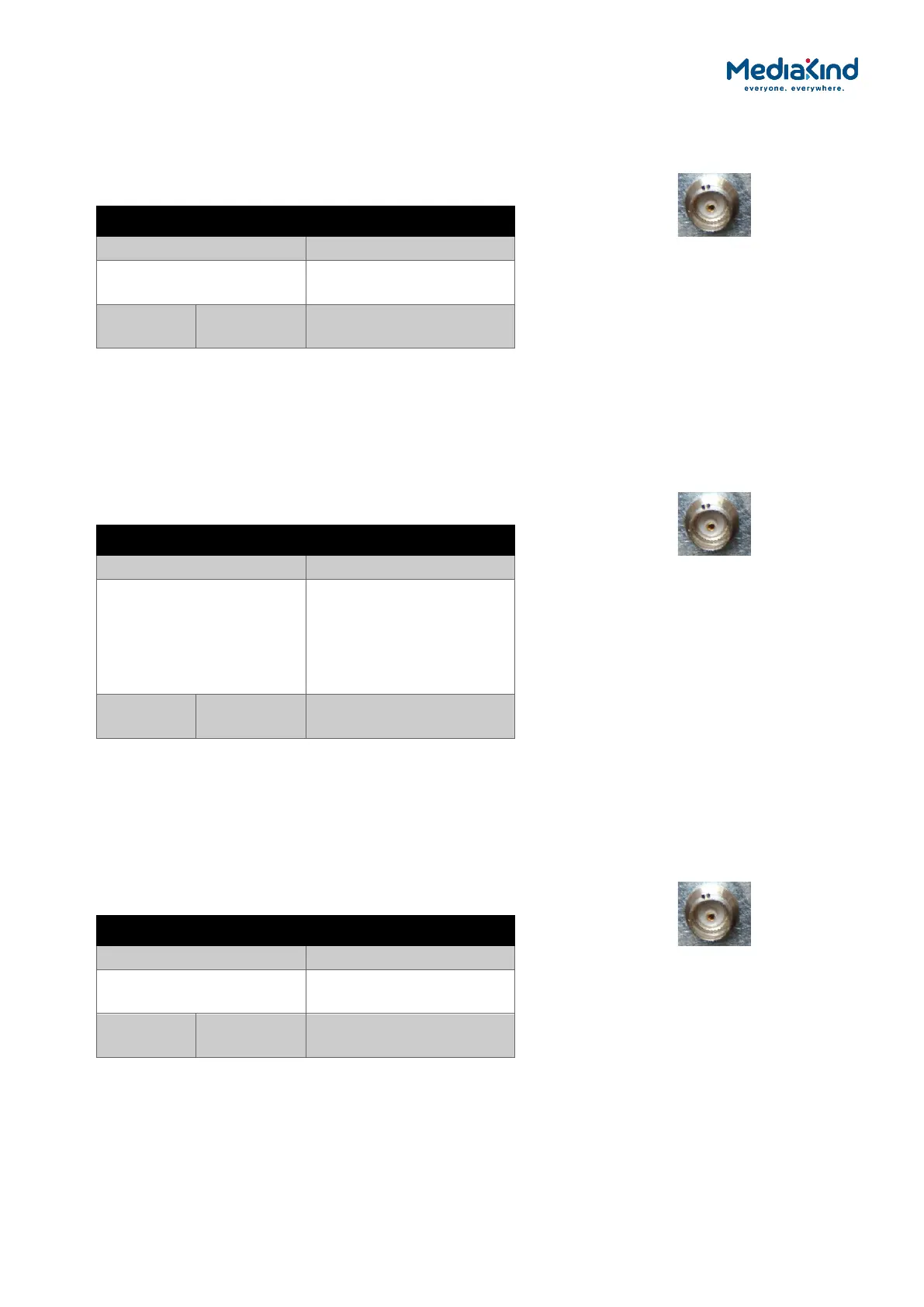

2.3.7. ASI/SDI OUT Connector
The unit provides two coaxial ASI/SDI outputs depending on the user selectable configuration.
Table 2-6 ASI/SDI OUT Connector
Item Specification
Connector type BNC 75 Ω female socket
Connector designation ASI/SDI OUT 1
ASI/SDI OUT 2
Pin-outs Centre
Shield
Output
Ground/Chassis
ASI/SDI OUT
2.3.8. ASI/HD-SDI/SD-SDI OUT Connector (RX8200 only)
The unit provides three coaxial ASI/HD-SDI/SD-SDI outputs depending on the user selectable
configuration. Where applicable, these connectors are also used for 3G-SDI output.
Table 2-7 ASI/HD-SDI/SD-SDI OUT Connector
Item Specification
Connector type BNC 75 Ω female socket
Connector designation
ASI/HD-SDI/SD-SDI OUT
1
ASI/HD-SDI/SD-SDI OUT
2
ASI/HD-SDI/SD-SDI OUT
3
Pin-outs Centre
Shield
Output
Ground/Chassis
ASI/HD-SDI/SD-SDI OUT
2.3.9. CVBS Connector
A coaxial socket provides composite video outputs supporting NTSC(M) (with and without
pedestal) and PAL(B,D,H,I,M).
Table 2-8 CVBS Connector
Item Specification
Connector type BNC 75 Ω female socket
Connector designation CVBS1
CVBS2 (RX83xx only)
Pin-outs Centre
Shield
Output
Ground/Chassis
CVBS
