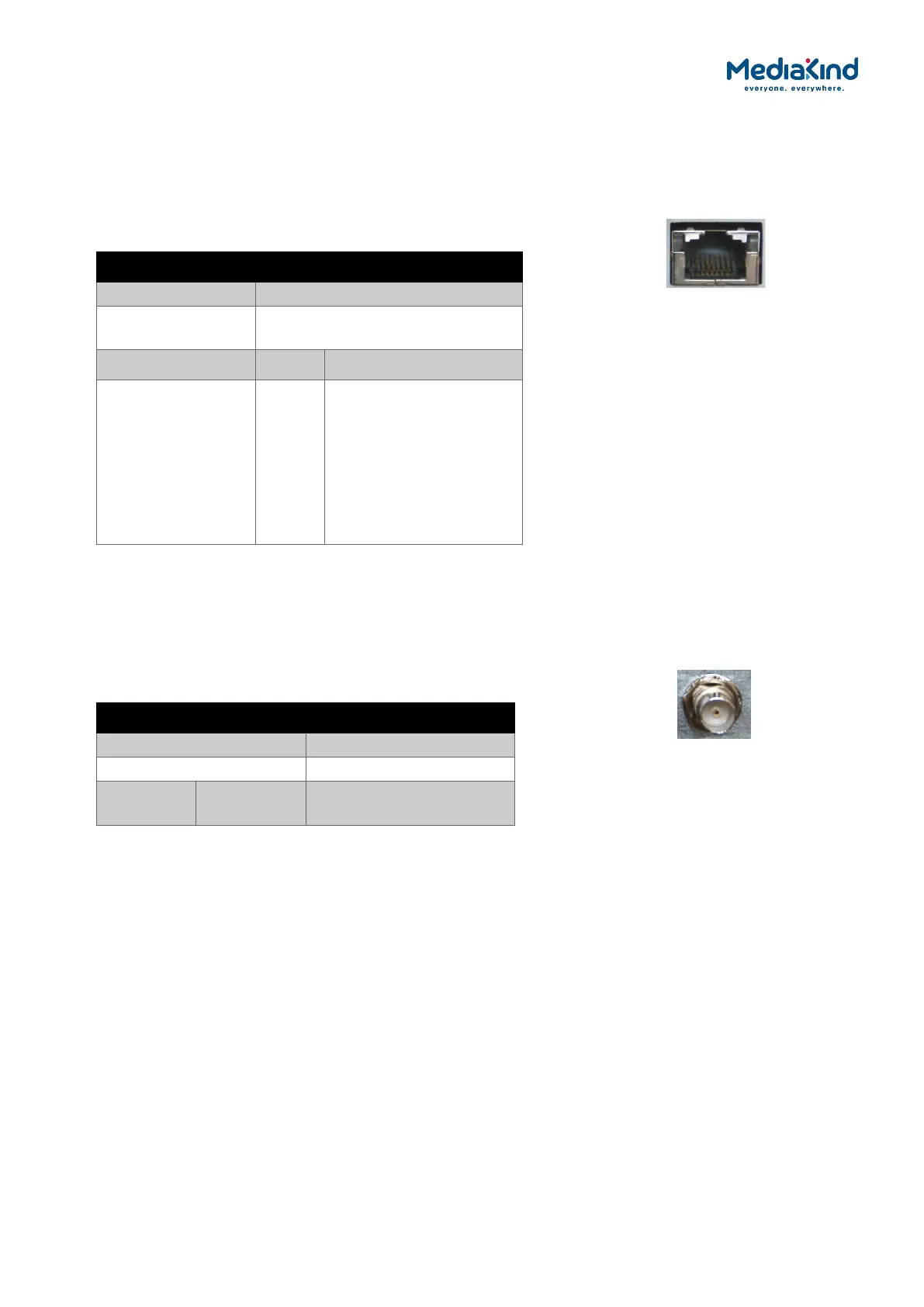

2.3.12. IP DATA Connector
Units can provide two Ethernet data interfaces.
Table 2-11 IP DATA Connector
Item Specification
Connector type RJ-45
Connector
designation
IP DATA 1
IP DATA 2
Pin
Pin-outs Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Tx Out (+)
Tx Out (-)
Rx In (+)
CMT
CMT
Rx In (-)
CMT
CMT
IP DATA
2.3.13. ASI IN Connector
The unit provides an ASI input socket for detection of the transport stream lock on the ASI input.
Table 2-12 ASI IN Connector
Item Specification
Connector type BNC 75 Ω female socket
Connector designation ASI IN
Pin-outs Centre
Shield
Input
Ground/Chassis
ASI IN
