Medisoft Ergocard CPX - Rear Panel

H4-EN General overview P
AGE 18/44
3

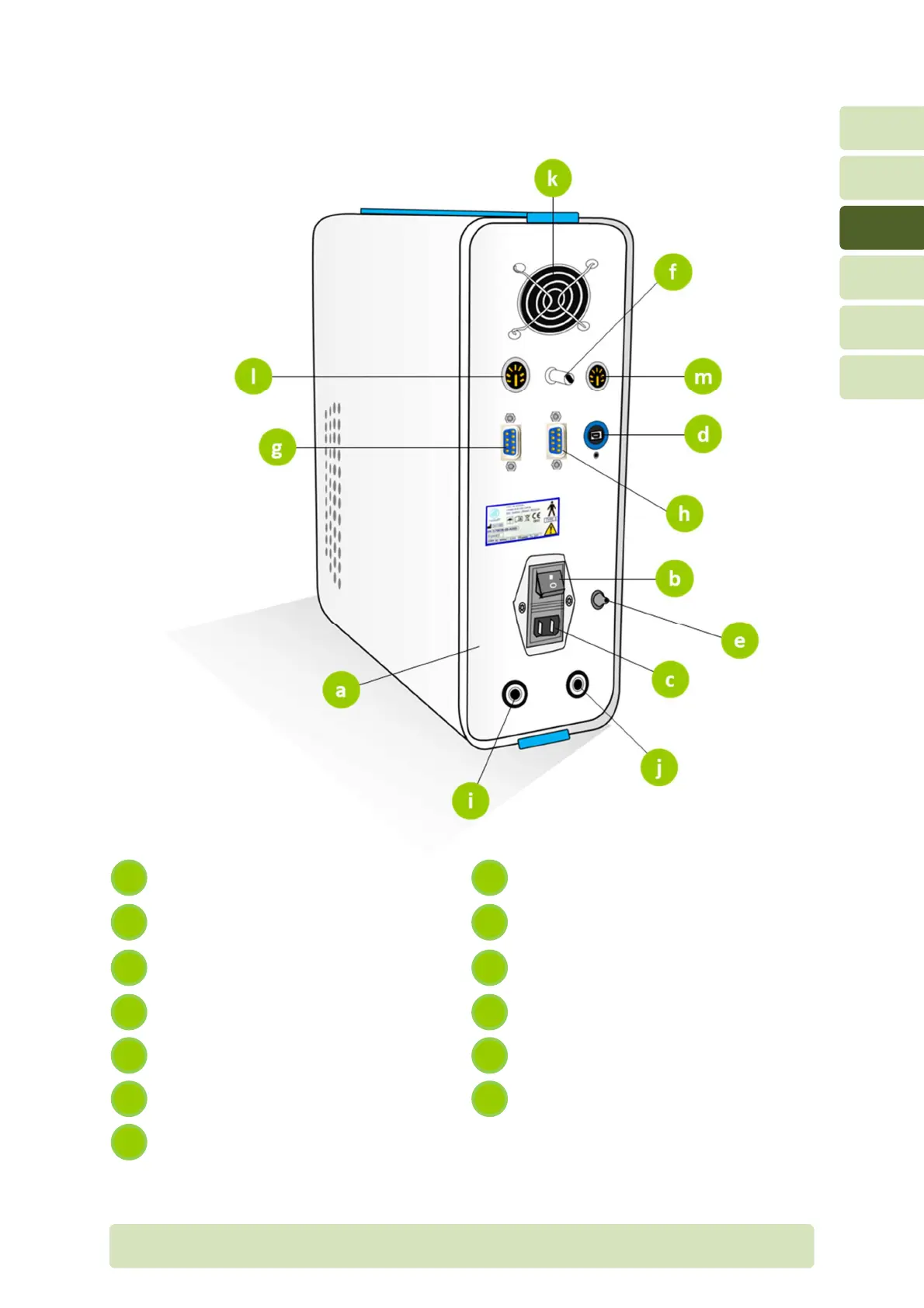

3.3 Rear panel
Rear panel Additional serial port (COM 4)
Power switch (ON/OFF)
Gas inlet for calibration
(16% O
2
– 4% CO
2
– balance N
2
)
Power supply entry
Gas inlet for ambient calibration
(21% O
2
– balance N
2
)
USB port (connected to computer) Cooling fan
Sample flow exhaust Analog Input
Humidity sensor Analog Output
Additional serial port (COM 3)
g
m
f
l
e
k
d
j
c
i
b
h
a
