ENGLISH

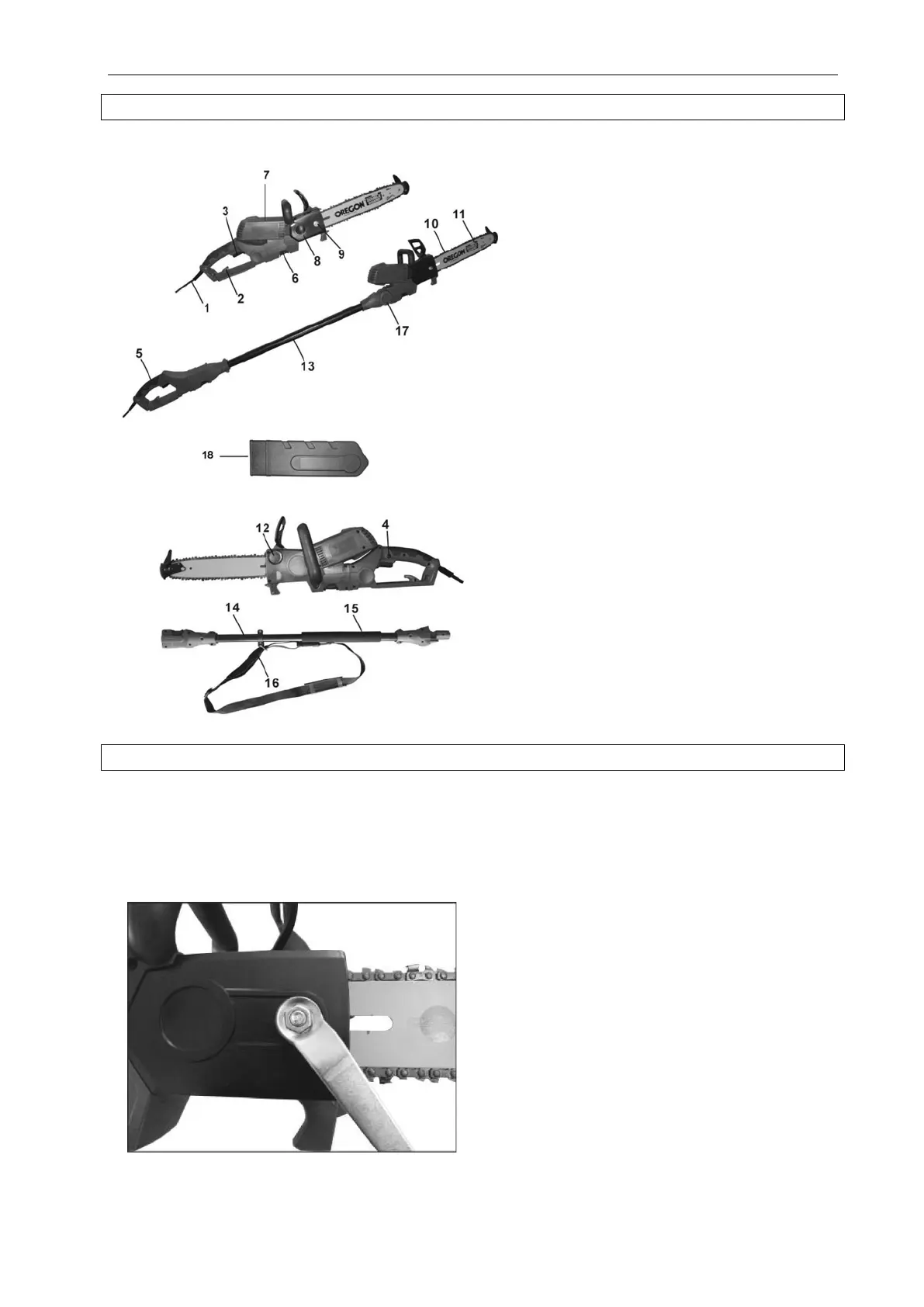

DESCRIPTION

1. Power cord

2. Strain reliever for power card

3. Power switch

4. Power switch lock

5. Handle

6. Telescopic lock

7. Motor housing

8. Sprocket cover

9. Lock nut

10. Chain

11. Bar

12. Oil filler cap

13. Telescopic shaft

14. Extension

15. Padded grip

16. Carrying strap

17. Adjusting button

18. Bar guard

ASSEMBLY

IMPORTANT: Never plug in the power cord until the tool has been fully assembled and the chain

tensioned. Wear safety gloves.

Fitting the bar and chain

• Carefully unpack all the parts and check that nothing is missing.

• Release the retaining screw for the sprocket

cover.

• Remove the sprocket cover.
