Meech HYPERION 233v4 - Alarm Logic Level Configuration; Alarm True = Hi Logic Setting; Alarm True = Lo Logic Setting

13
Alarm Logic Level
This is given by the conguration of the “Alarm True” setting using the BarMaster.

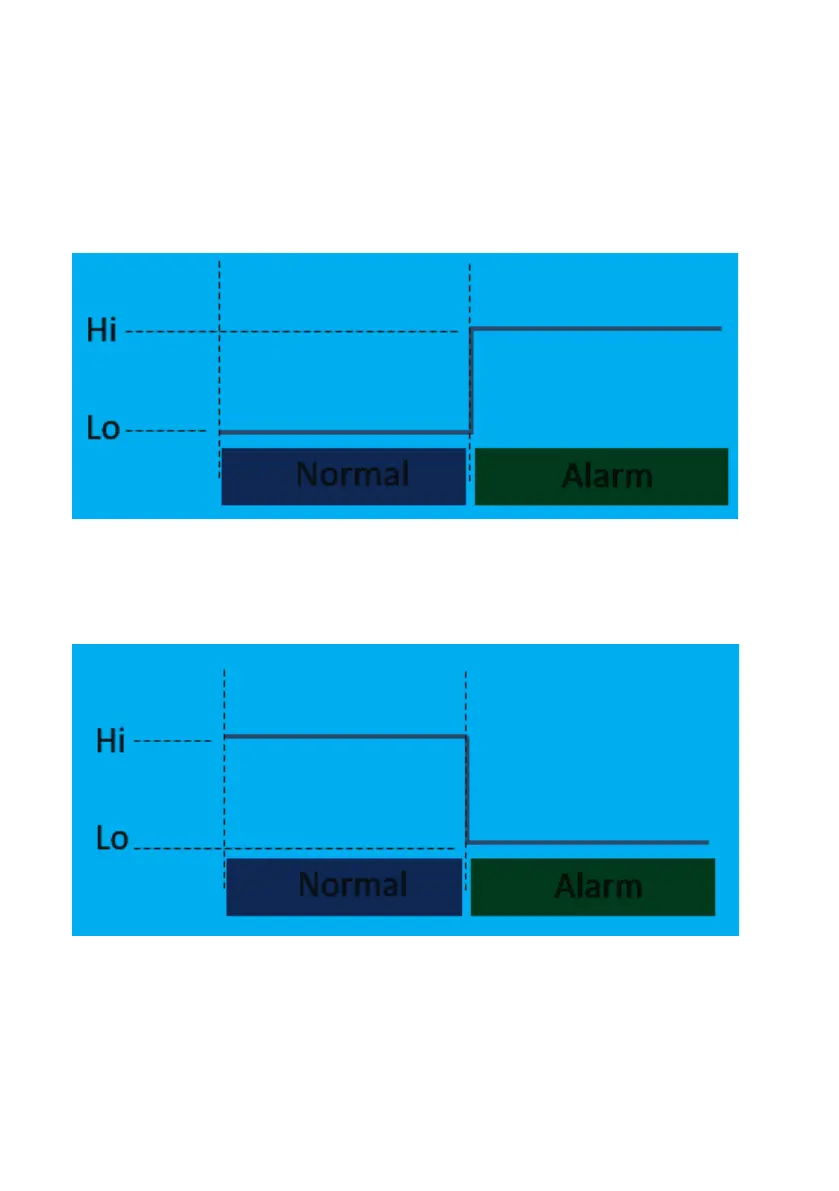

Alarm True = hi
This means the logic on both the alarm pins is active high.
Alarm True = lo
This means the logic on both the alarm pins is active low.
