Output Drive
There are 3 dierent output drive options which are designed to fulll the vast majority
of user requirements and to allow easy integration to PLC equipment.
Option 1 - NPN
Transistor-driven switch which presents a pull-up resistor to 24VDC on the alarm pin.
This conguration is the same for both alarm pins (pin-2 and pin-4).

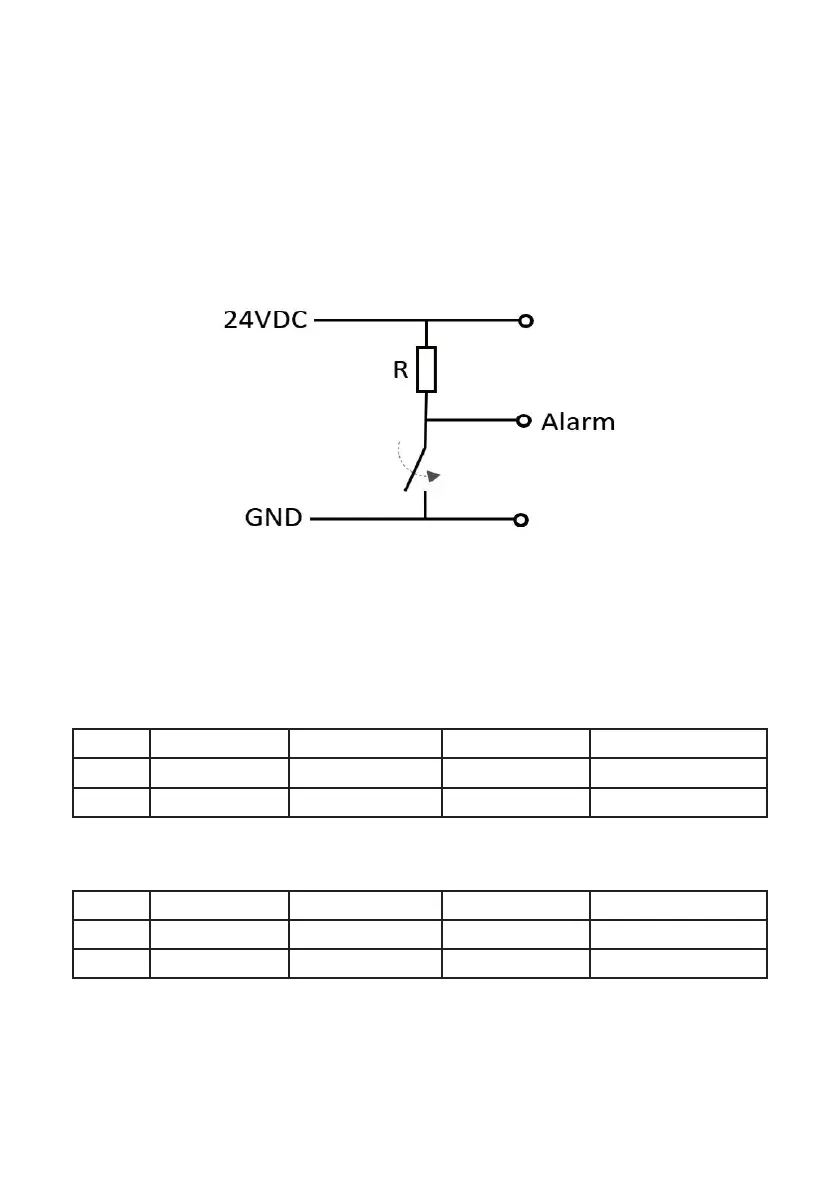

Simplied Diagram of NPN output
Logic Table
Alarm True = Hi
Start State Solid Green Flashing Red Solid Red
White Hi Lo Hi Hi
Black Hi Lo Lo Hi
Alarm True = Lo
Start State Solid Green Flashing Red Solid Red
White Hi Hi Lo Lo
Black Hi Hi Hi Lo
Note: On unit power-up, both alarm pins remain in Hi state for up to 60 seconds
before these are used as alarm pins.
2.2kΩ
