10
Electrical Installation
WARNING
THIS EQUIPMENT MUST BE GROUNDED VIA THE GROUND / EARTH POST
ON THE BAR AND/OR A 24V DC GROUNDED SUPPLY. FAILURE TO SO WILL
RESULT IN DAMAGE TO THE BAR OR THE 24V SUPPLY AND WILL VOID THE
WARRANTY.

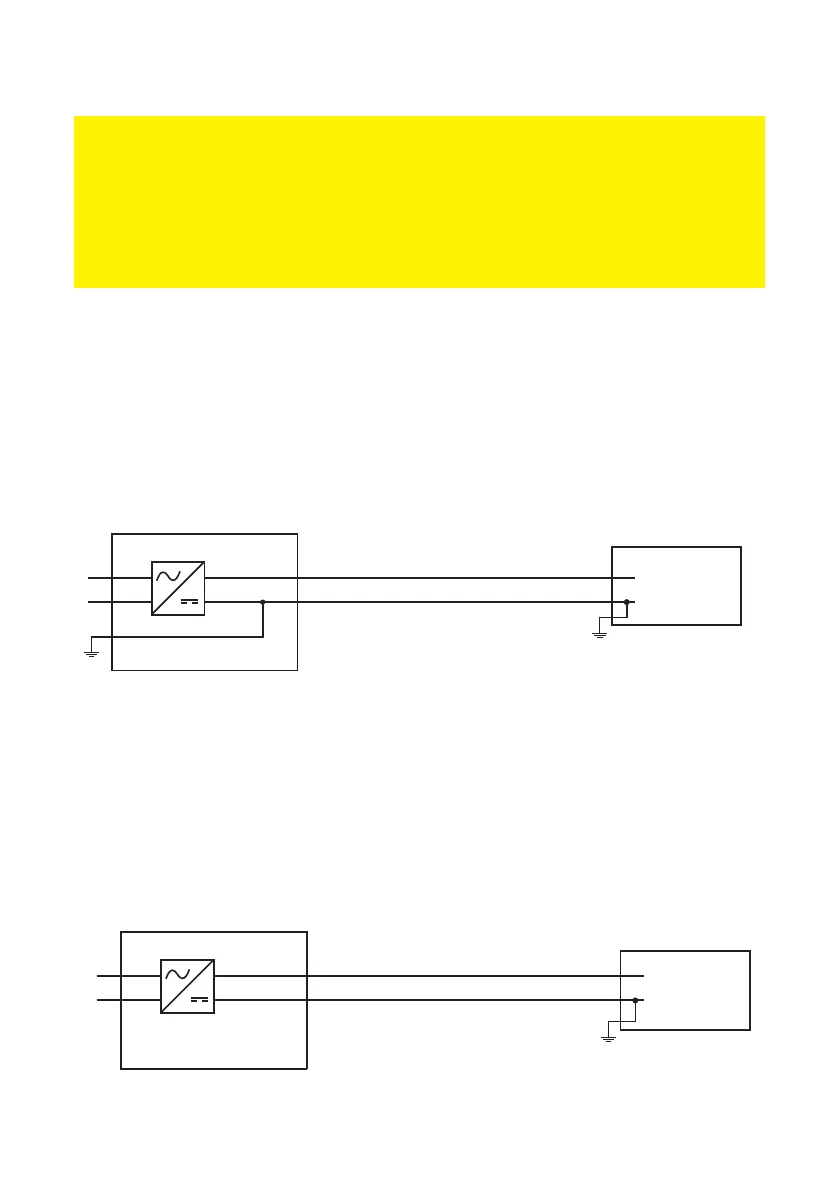

Connection using a Grounded 24V DC power supply. E.g. Meech part number
A900IPS-SM2MS.
Meech 24V DC supplies are grounded internally. They are supplied with a
three wire IEC C5 cable.
The ground connection must be correctly connected at the mains connection.
The 960IPS should also be grounded by it’s grounding post, to provide
additional safety.
Connection using an ungrounded 24V DC power supply.
The output of many 24V power supplies are not grounded.
If this type of power supply is used, it is vital that the system is grounded
using the ground post on the bar.
AC
24V
0V
960IPS
Grounded 24V supply
e.g. Meech A900IPS-SM2MS-48W
960IPS grounded
by power supply and
ground on bar.
AC
24V
0V
Ungrounded 24V supply
960IPS grounded
by ground post.
960IPS
