Default settings
Press Enter to reset all fixture personalities to the default values. Default setting are
Reverse Pan: Off
Reverse Tilt: Of f
16 bit resolution: On
Lamp on automatically: Off
Lamp sensor: On
Display options: On
Display options: 100
Display turn: Turn
Feed back: On
Lamp Control: On
Fan Speed: Auto

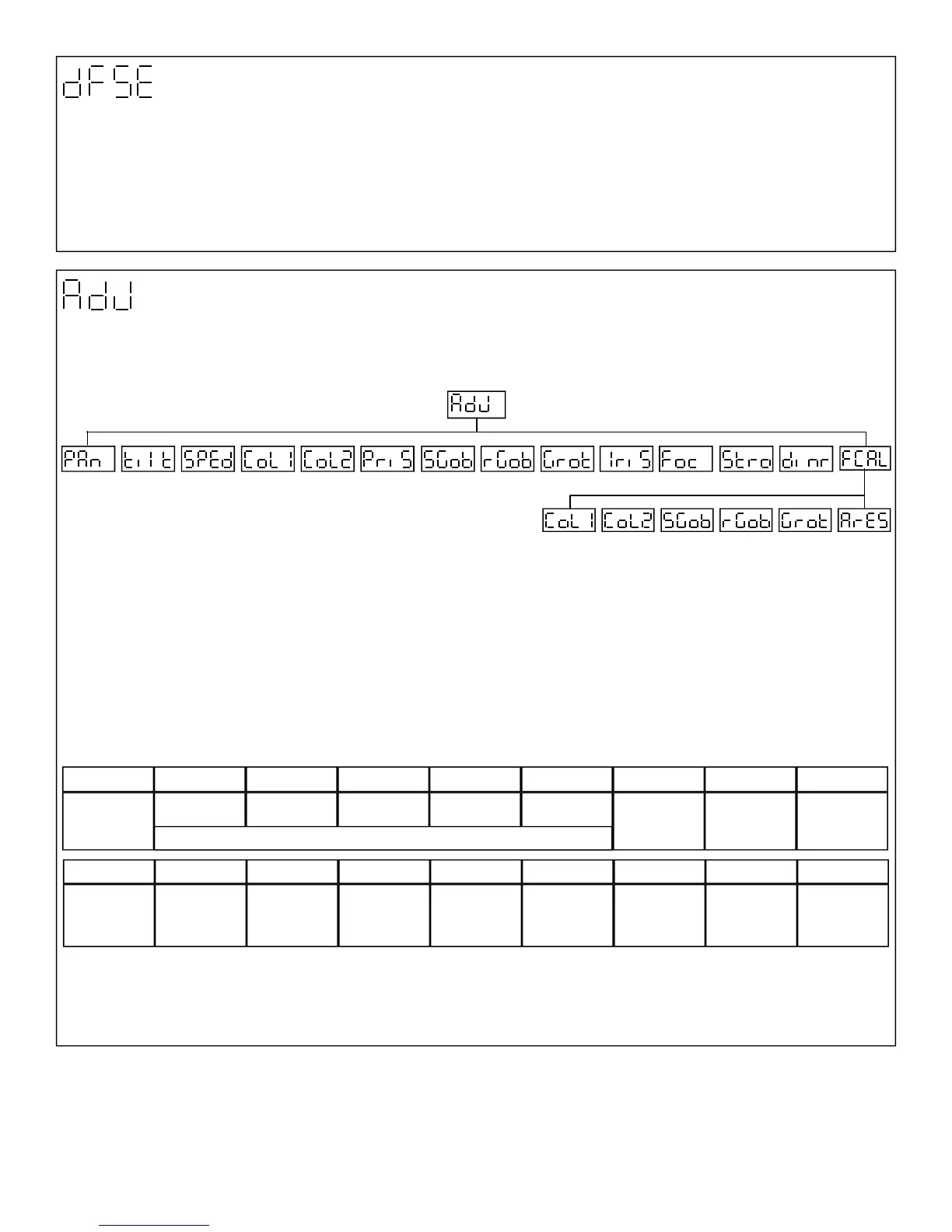

Adjusting the default positions of color, gobo and effect
With this function you can calibrate and adjust the color, gobo and effect wheel to their standard position. Use the up/down keys
to browse through the adjusting menu by which you can adjust the fixture to the required position (0-250)before the function
calibration.
1. Calibration via control board: Press Enter and the up/down keys in order to display the following message: Col1, Col2,
PriS, SGob, rGob, Grot for very smooth function calibration. Select the function that needs calibration by pressing Enter and use
the up/down keys in order to adjust the right value from 0 to 255. Then press Ente r to confirm or Mode to cancel and return
to the main menu. This can be repeated for each calibration required. When the calibration is finished it is necessary to use the
ArES function in order to write the calibration values to the memory (eeprom) and to make reset in order to check the newly
adjusted positions. When the reset of the fixture is completed the display will read FCAL message. Press E nter to repeat the
calibration or Mode to return to the ADJ menu.
0-255 0-255 0-255 0-255
0-255 0-255
0-255
0-255
0-255
0-255
0-255
0-255 0-255
2. Calibration via external controller: Press Enter and the up/down keys in order to display the following message: Colo,
EFEC, rGob, Grot for very smooth function calibration. Select the function that needs calibration by pressing Enter. Now you can
calibrate the color, gobo and effect wheel via your controller. The DMX calibration protocol is described in the table below.
When the calibration is finished it is necessary to use the ArES function in order to write the calibration values to the memory
(eeprom) and to make reset in order to check the newly adjusted positions. When the reset of the fixture is completed the dis-
play will read FCAL message. Press Enter to repeat the calibration or Mode to return to the ADJ menu.
DMX Channel 9 10 11 12 13 14 15 16
Function
PRISM
-
Standard
Protocol
STATIC GOBO
-
Standard
Protocol
ROTATIN GOBOS
-
Standard
Protocol
GOBO ROTATION
-
Standard
Protocol
IRIS
-
Standard
Protocol
FOCUS
-
Standard
Protocol
STROBE
-
Standard
Protocol
DIMMER
-
Standard
Protocol
DMX Channel 1 2 3 4 5 6 7 8
Function
Col.1 Col. 2 SGOB RGOB GROT - Colors 1
-
Standard
Protocol
Colors 2
-
Standard
Protocol
Smooth micro step movement
15
