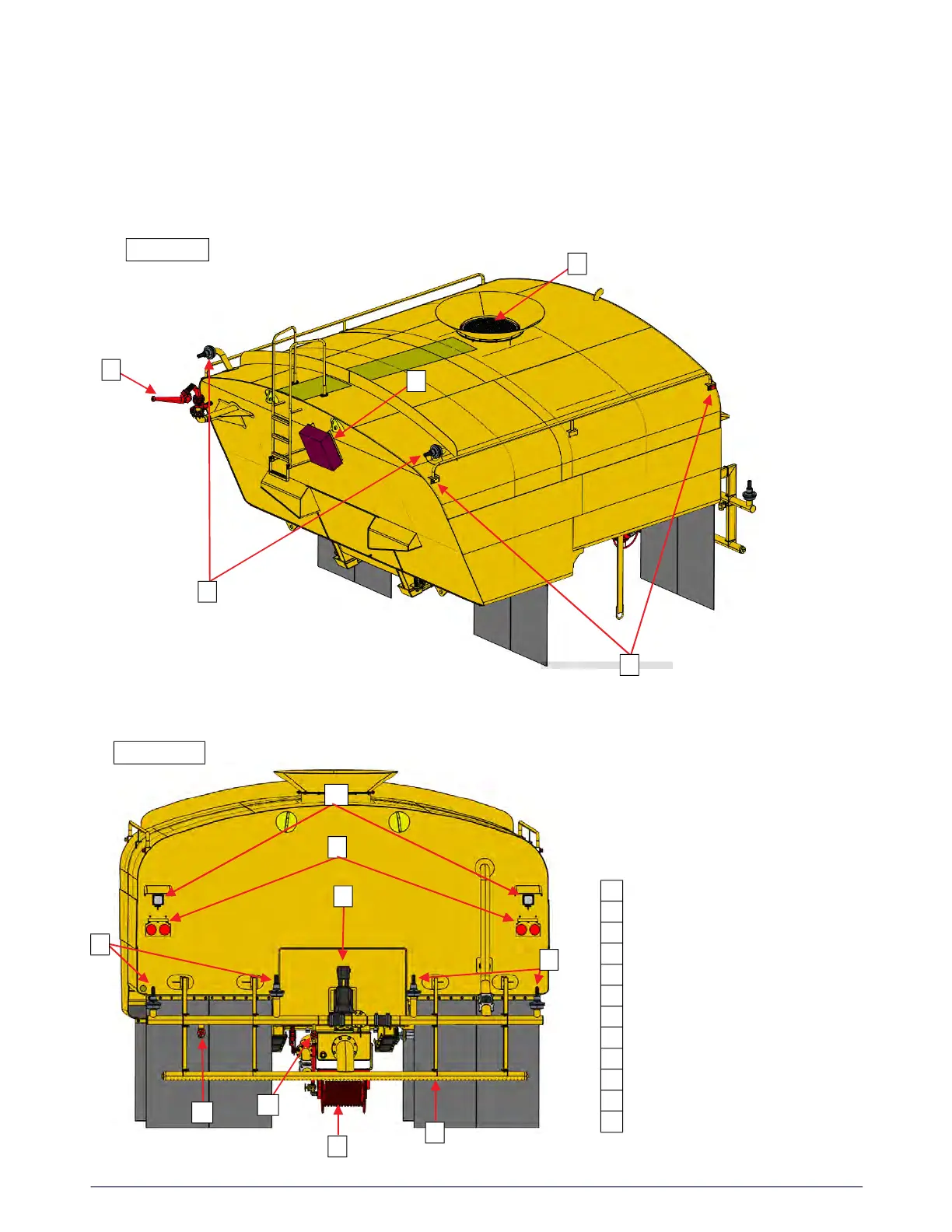

MTT OVERVIEW (TYPICAL)
9
1
WATER CANNON
2
TANK FILL PORT
3
SOLENOID CONTROL BOX
4
SPRAY HEADS
5
CLEARANCE LIGHTS
6
STOP, TURN, AND TAIL LIGHTS
7
WATER PUMP
8
DUMP BAR
9
HOSE REEL
10
HOSE REEL SHUT-OFF VALVE
11
SPRAY BAR DRAIN
12
WORK LIGHTS
SIDE VIEW
REAR VIEW
7
1
3
8
4
2
5
4
4
10
11
6
12
