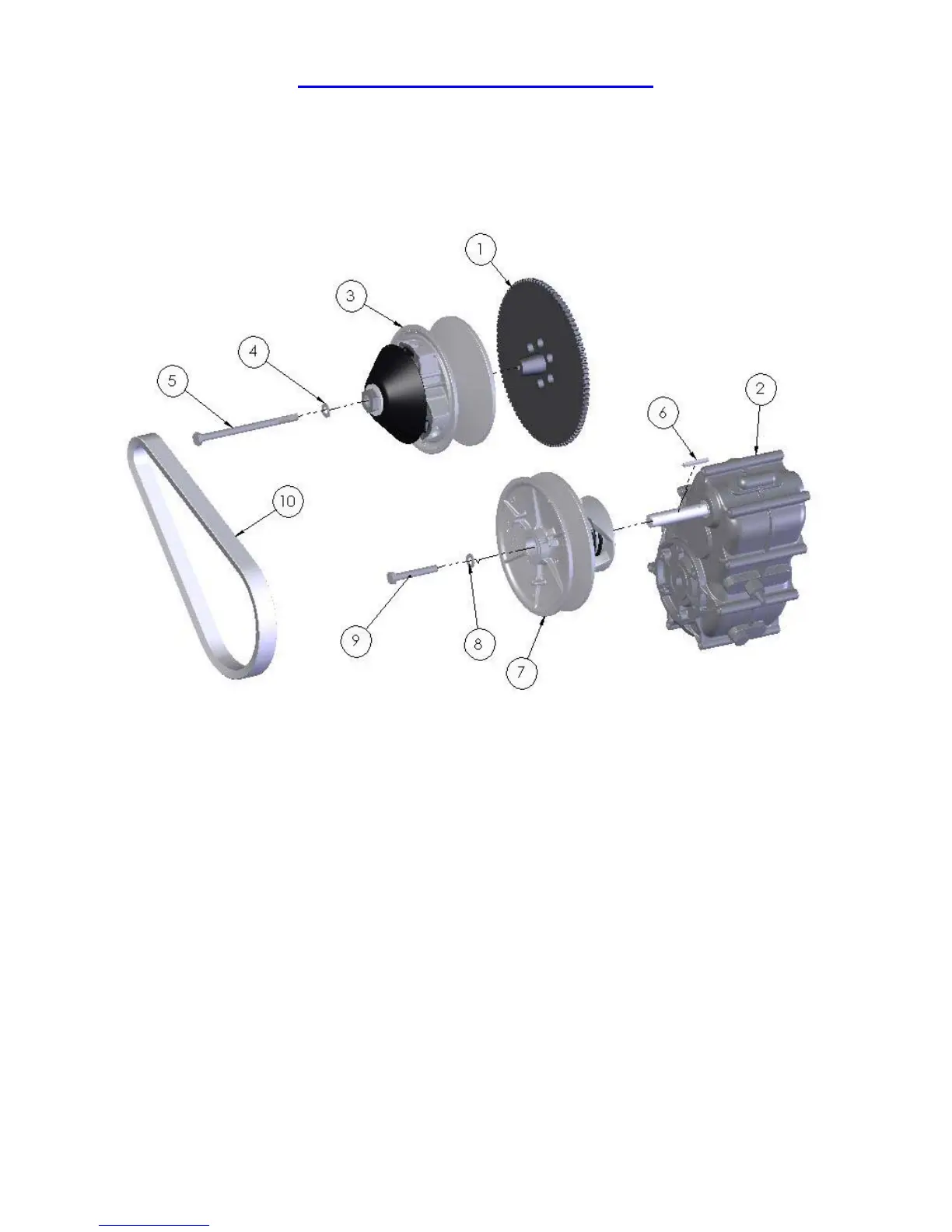

Parts of the Transmission System
The transmission system is made up of three main parts: the Drive Pulley (3), the Driven
Pulley (7) and the Drive Belt (10).
1...Flywheel
2...Gearbox
3...Drive pulley
4...Lock washer
5...Hexagon bolt (retaining)
6...Pin
7...Driven pulley
8...Lock washer
9...Hexagon bolt (retaining)
10.Drive belt
