13

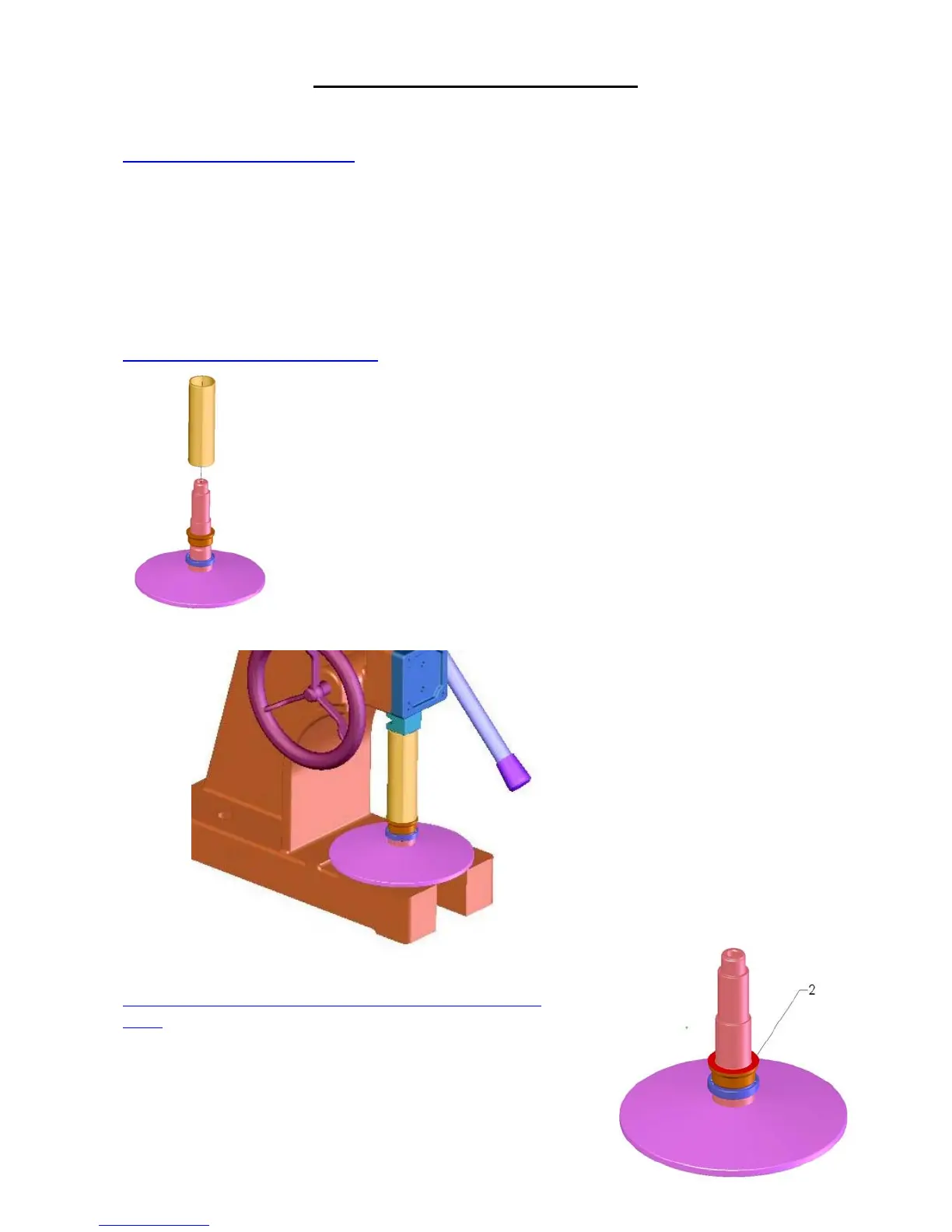

Reassembling the Drive Pulley
Reassembling the sliding sheaf
To reassemble the sliding sheaf, see the procedure “Disassembling the sliding sheaf” and
reverse the directions.
, Make sure you put the spacing washers back in their original positions.
Reassembling the stationary sheaf
Using a press and a tube (105mm long with an inner
diameter of 32mm), insert the bearing (1B).
Using the same tools, insert the locking ring (1C).
, Make sure the shoulder of the shaft, the bearing and the
locking ring make perfect contact with each other.
, Don’t use too much pressure with the press or you’ll
damage the components.
Mounting the sliding sheaf on the shaft of the stationary
sheaf
Before you mount the sliding sheaf (3) on the shaft of the
stationary sheaf (1), make sure you place the spacing washer
(2) on the shaft.
