15

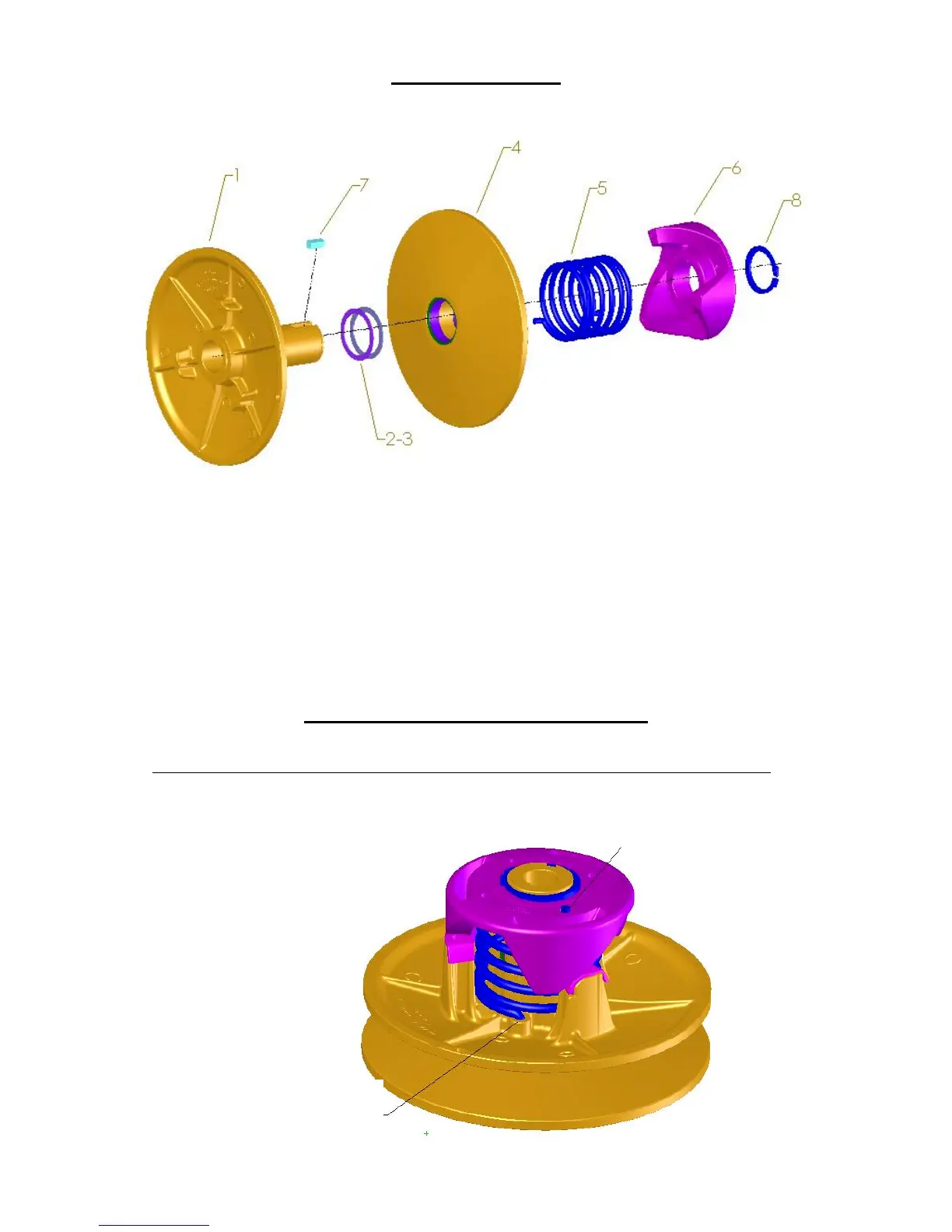

The Driven Pulley
1.... Stationary sheaf
2.... Spacing washer (1.2mm)
3.... Spacing washer (0.68mm)
4.... Sliding sheaf
5.... Spring
6.... Cam
7.... Pin
8.... Retaining ring
Disassembling the Driven Pulley
, Make sure you jot down the position of the spring on the sliding sheaf and the cam.
When you reassemble the pulley, the position of the spring must be the same as when
you disassembled it. This ensures that the performance of the pulley is not affected.
Position of the
sliding sheaf
Position of the cam
