Disassembling and Reassembling the Pulleys
, When disassembling the pulleys, jot down the direction in which the drive belt rotates
to make sure it rotates in the same direction when it is reassembled.

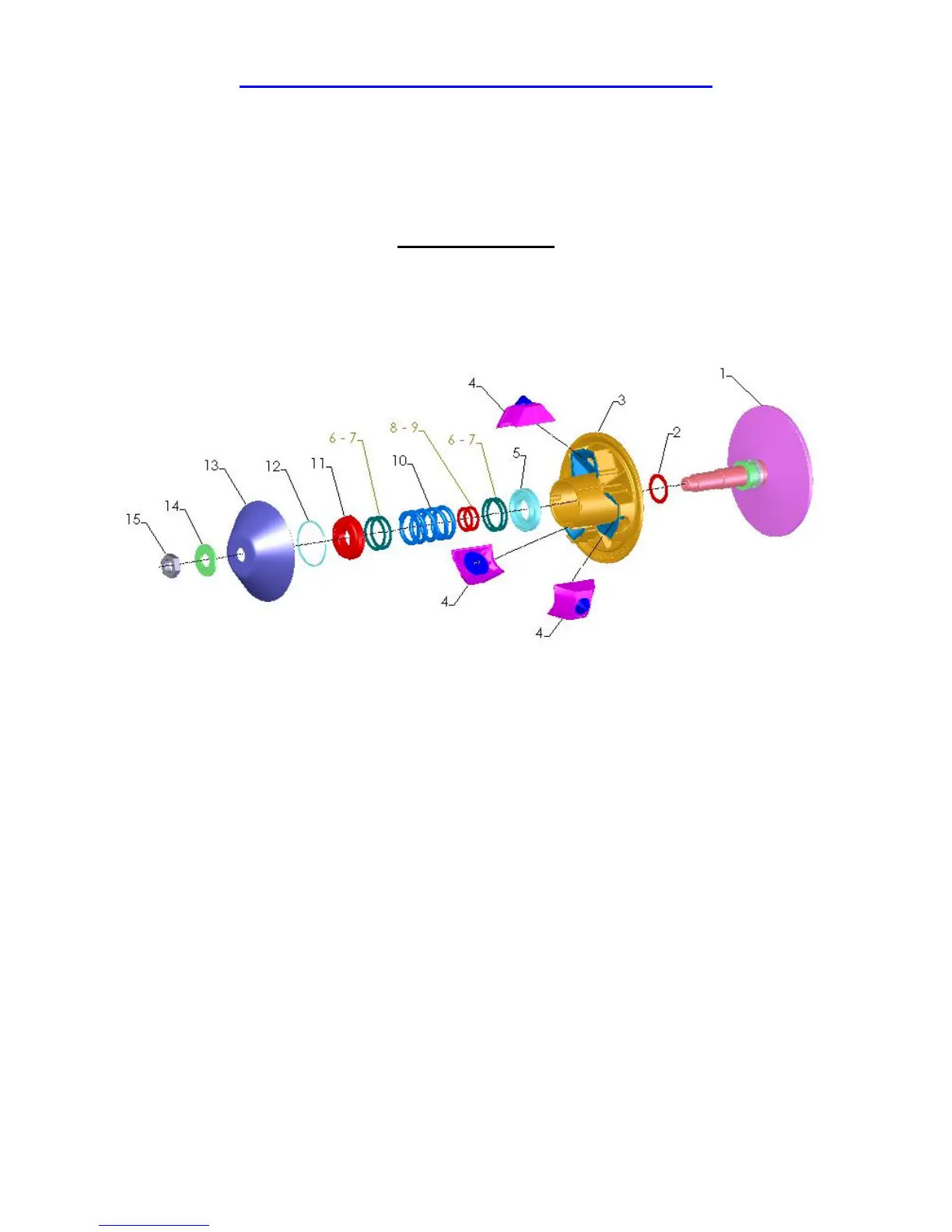

The Drive Pulley
1.... Stationary sheaf
2.... Spacing washer
3.... Sliding sheaf
4.... Assembled centrifuge unit
5.... Lower bearing
6.... Spacing washer (1.2mm)
7.... Spacing washer (0.68mm)
8.... Spacing washer (0.5mm)
9.... Spacing washer (1.0mm)
10.. Spring
11.. Upper bearing
12.. Retaining ring (washer)
13.. Cap
14.. Plate washer
15.. Nut
