18

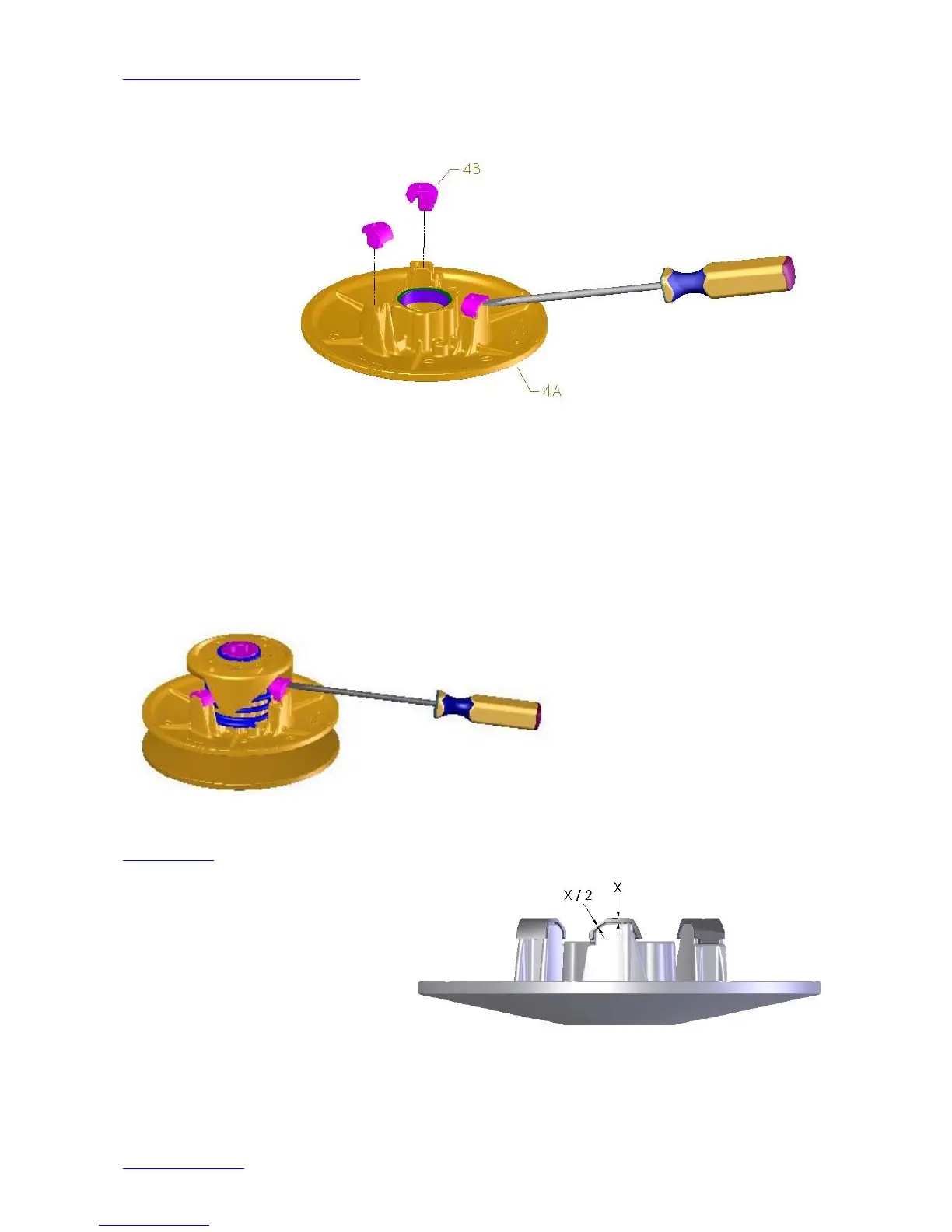

Disassembling the sliding sheaf
You can remove the cam fittings with a flathead screwdriver.
4A....Sliding sheaf
4B ....Cam fitting
_______________________________________
You can also remove the cam fittings without disassembling the pulley.
• Making sure the stationary sheaf doesn’t move, twist the sliding sheaf.
• Use a flathead screwdriver to remove the shoes.
L Be careful not to get a finger jammed when handling the shoes.
You should use a pair of long nose pliers.
_______________________________________
Inspection
• If the cam fittings (4B) are worn by half
the original thickness (X) (see illustration),
replace them.
• Wear in the sheaf’s working angle (4A)
• Wear to the inside bearings of the sheaf
(do not replace unless the sheaf has wear damage)
For peak performance, make sure you clean the inside bearings with a degreaser.
Stationary sheaf
