8

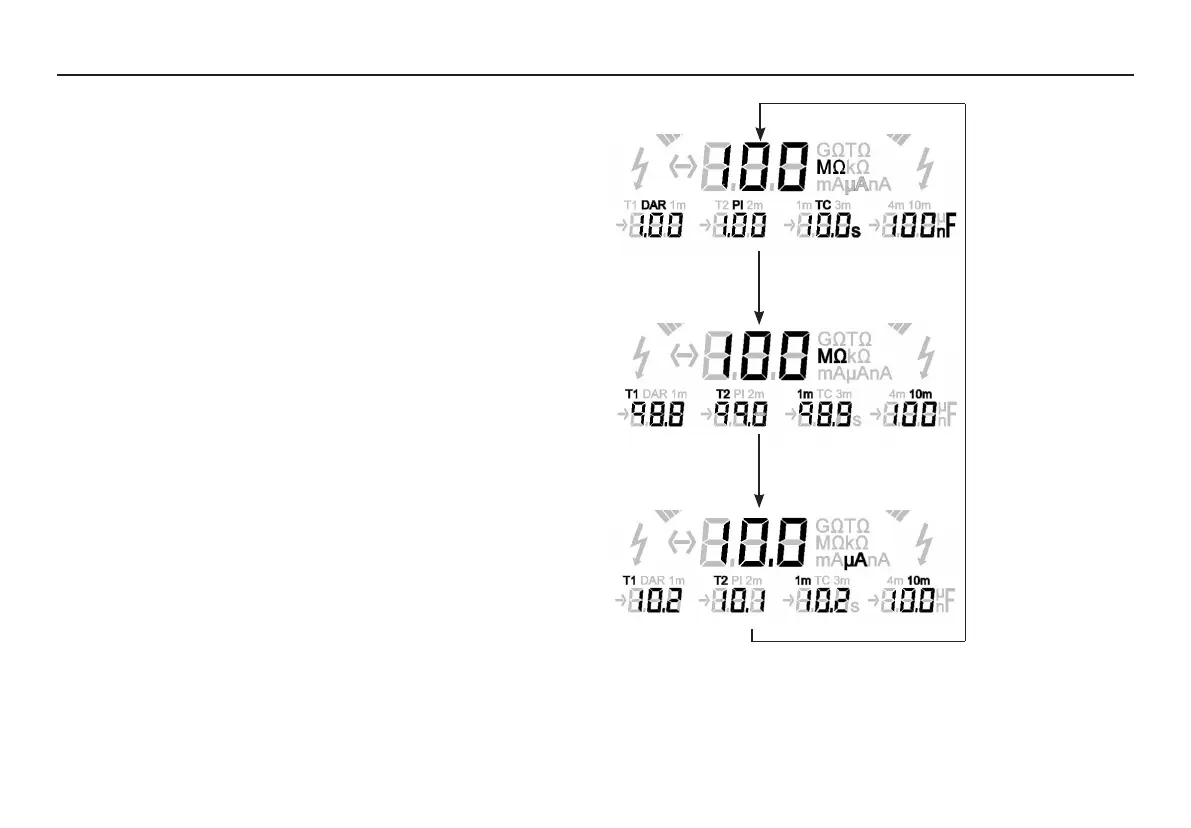

Figure 1 - The result of an insulation resistance test (IR)
Test settings: T1 and T2 times set in order to measure the DAR
Test conditions: test runs for longer than 10 minutes as this is required for
a PI reading.
In the ‘IR’, ‘PI’, and ‘DD’ modes the secondary display initially shows the
PI (polarity index), DAR (dielectric absorption ratio), and, on completion
of the test, the TC (time constant) and capacitance measurements.
Toggling the display shows insulation resistances and currents.
In the ‘SV’ (step voltage) mode, the secondary display toggles between
insulation resistances and currents.
Figures 1 to 4 illustrate the display status for sequential ‘Ω/I’ key presses in
the different modes.
Press Ω/I
Press Ω/I
Press Ω/I
To Next Page
