OTS80PB and OTS60PB OTS100AF, OTS80AF and OTS60AF
29
Manage test standards

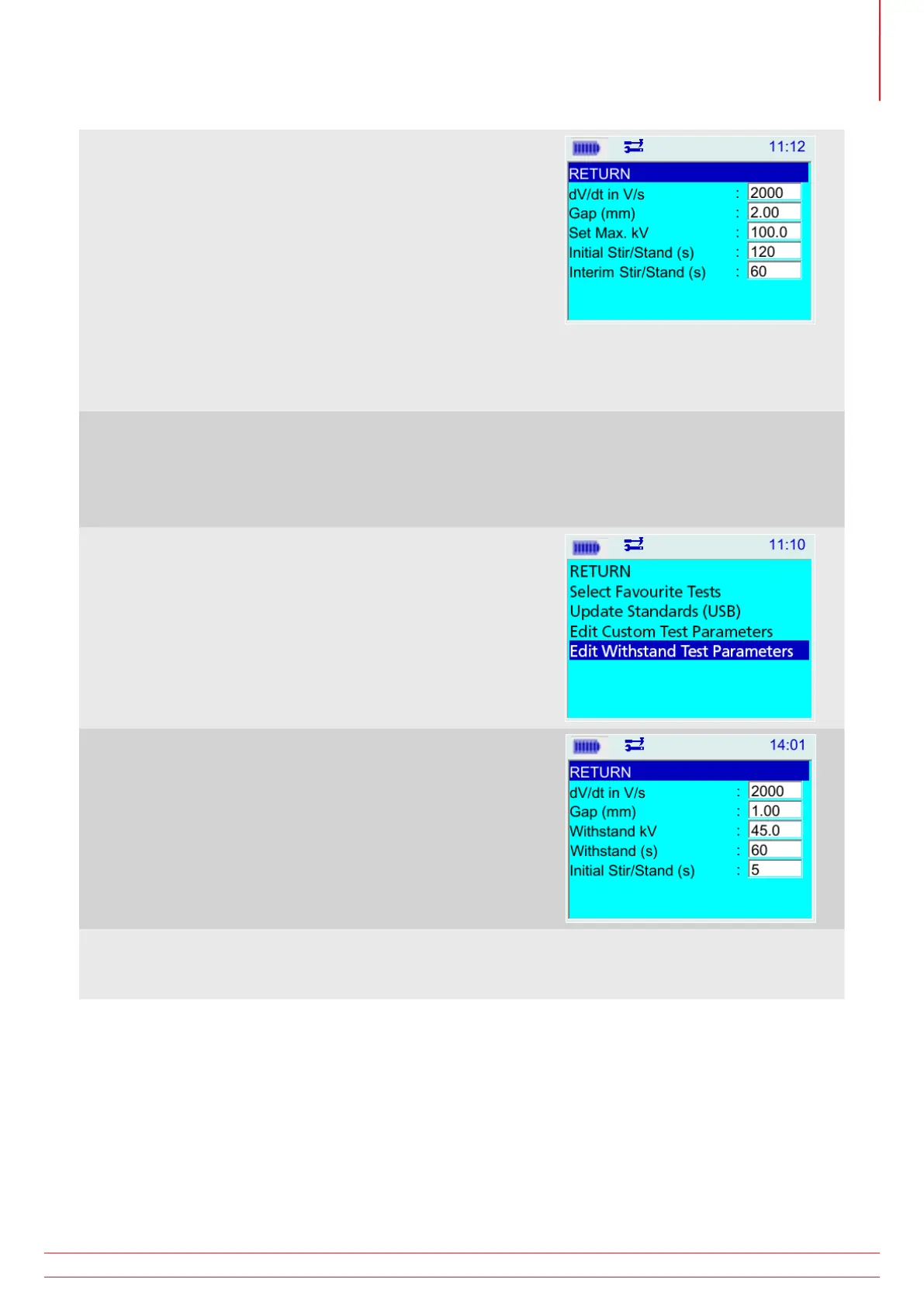

The custom parameters screen shows a set of variables that
control a breakdown test. Each variable is user settable, simply
navigate down to the required setting, press the OK button and
proceed to change the value as required.
For numeric entry on the OTS AF models the decimal point can
be entered by quickly pressing the digit ‘1’ twice. So to enter 2.5
mm gap setting the user enters the following sequence:
2
1, 1
5
OK
In the customs test parameters screen ‘set max. kV’ may appear as, ‘set kV (max. xxx)’ in certain versions of
firmware.
All entry fields in the custom test parameters screen are range checked to ensure it is valid. When all values are
set the user navigates back to the Tools screen via the RETURN function.
To edit withstand tests select “Edit Withstand Test Parameters”
and press the OK button.
The withstand parameters screen shows a set of variables that
control a withstand test. Each variable is user settable, simply
navigate down to the required setting, press the OK button and
proceed to change the value as required.
All entry fields in the withstand test parameters screen are range checked to ensure it is valid. When all values
are set the user navigates back to the Tools screen via the RETURN function.
Note : The user should ensure that the relevant custom or withstand tests are selected as favourite tests before
leaving the manage test standards screen.
