VM600 MPS quick start manual MAMPS-QS/E 1 - 1
Edition 2 - October 2018
Unpacking and inspecting
INSTALLATION
1 INSTALLATION
This chapter provides a brief overview on the installation of VM600 machinery protection
system (MPS) hardware. Information is provided on unpacking, installing a rack, connecting
power, connecting cards and software configuration.
NOTE: For further information on installing a VM600 machinery protection system (MPS),
refer to the VM600 machinery protection system (MPS) hardware manual.
1.1 Unpacking and inspecting
The procedure for unpacking VM600 MPS hardware is shown in Figure 1-1 and described
below:

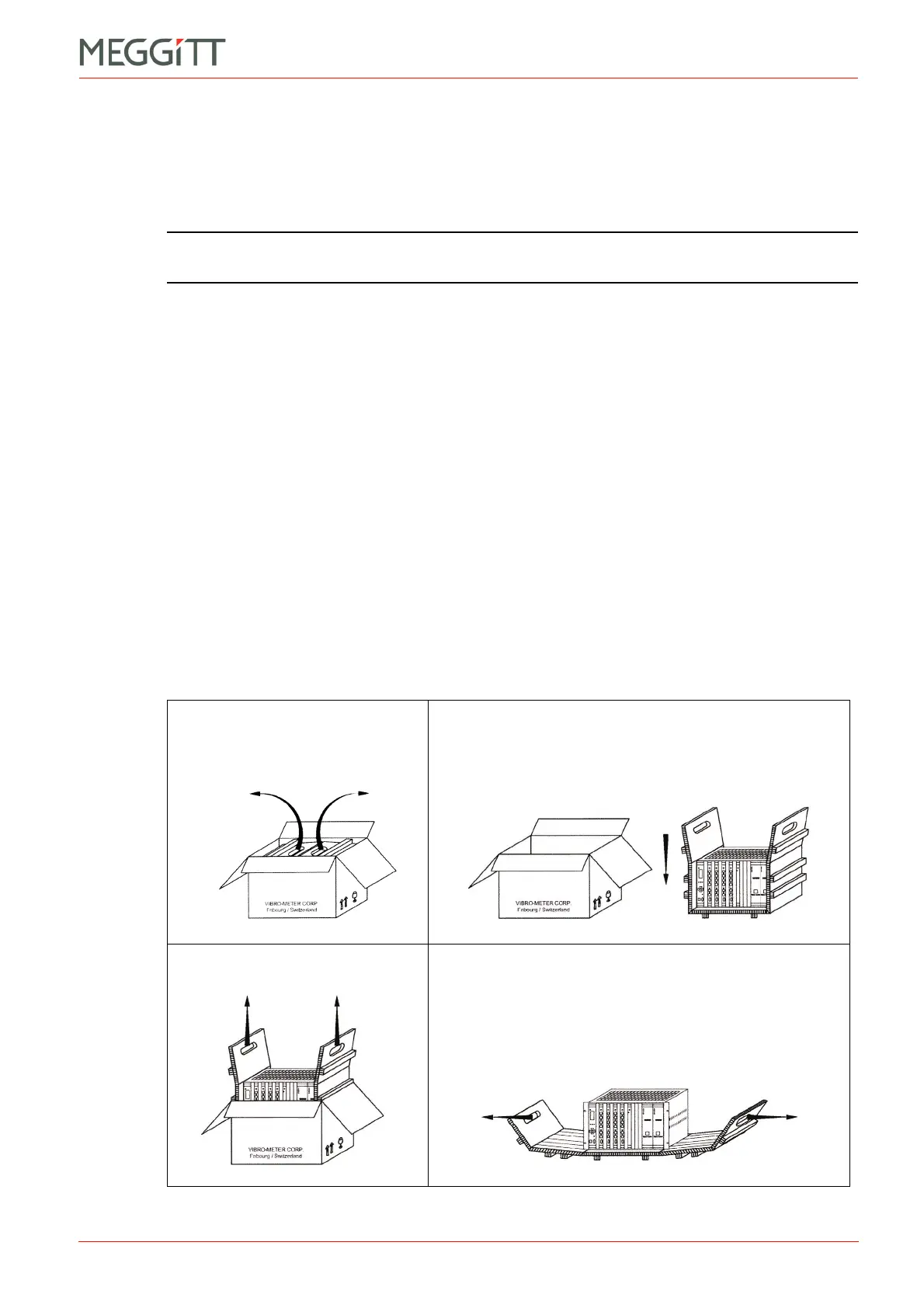

Figure 1-1: Procedure for unpacking and inspecting VM600 MPS hardware
Step 1: Place the outer box on a flat surface with the arrows on the side of the box
pointing upwards.
Step 2: Open the outer box along the tape using a pair of scissors.
Step 3: Pull the handles of the inner box outwards to a vertical position.
Step 4: Gently lift the inner box vertically out of the outer box using the handles of the
inner box.
Step 5: Place the inner box on a flat surface.
Step 6: Open the inner box using the handles.
Step 7: Inspect the VM600 MPS hardware to ensure that no damage has occurred
during delivery.
Steps 1 to 3
Step 5
Step 4
Steps 6 to 7
