Connecting power
INSTALLATION
1.4.3 AC-input rear panels
Figure 1-9 and Figure 1-10 show the AC-input rear panels used by a VM600 system rack.
NOTE: For a VM600 system rack (ABE04x) operating with an external AC-mains supply,
the AC-input panel with a common input (mains socket and on/off switch) is
the standard associated rear panel.
In general, AC-input versions of the RPS6U power supply are available for use with an
external 115/230 V
AC
(nominal) power supply, unless stated otherwise.

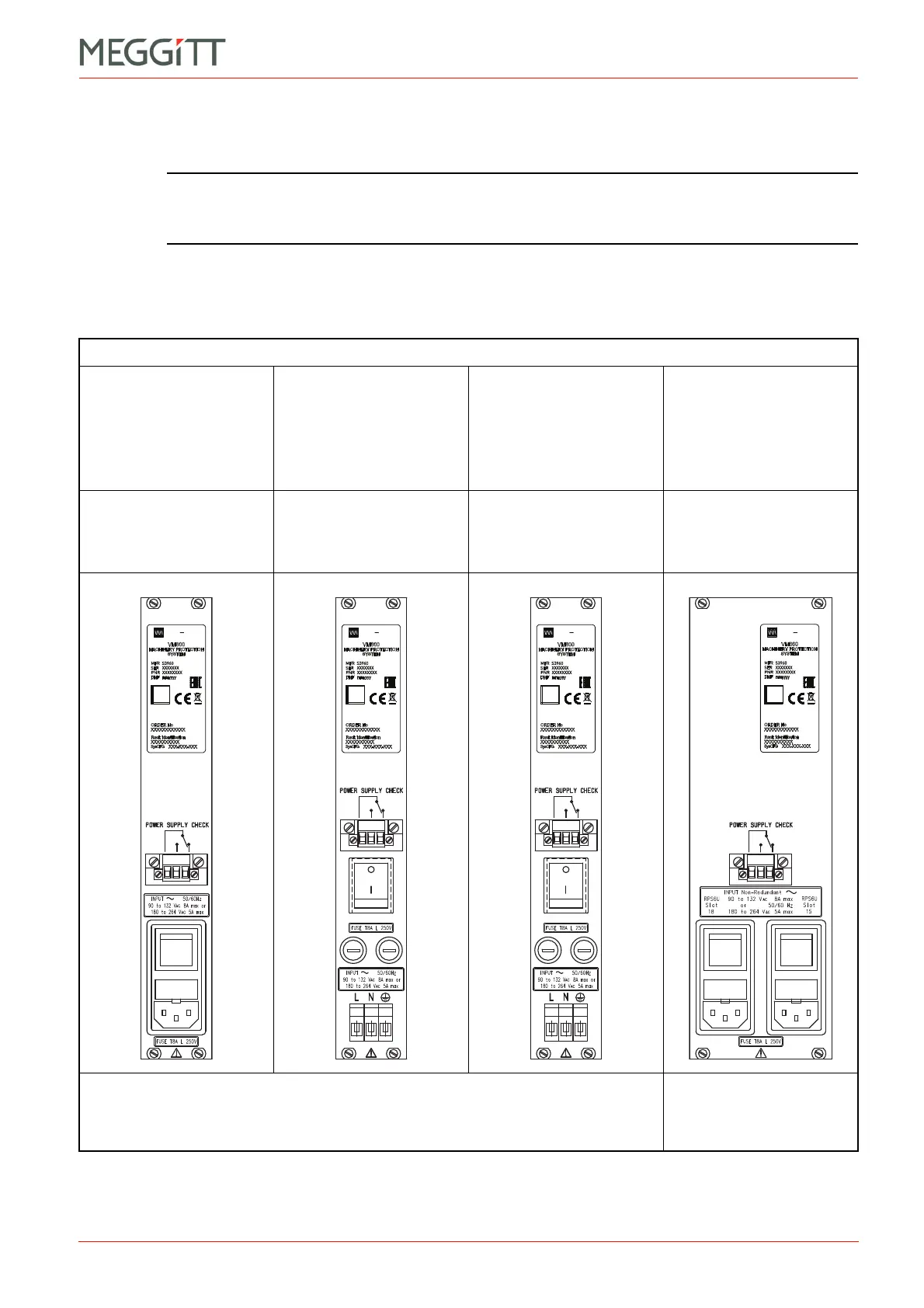

Figure 1-9: AC-input rear panels
for use with the AC-input version of the RPS6U rack power supply
AC-input rack panels
AC-input (120/230 V
AC
)
panel with a common
input
(mains socket and
on/off switch)
AC-input (120/230 V
AC
)
panel with a common
input
(screw-terminal
connector and on/off
switch)
AC-input (120/230 V
AC
)
panel with a common
input
(screw-terminal
connector)
AC-input (120/230 V
AC
)
panel with individual
inputs
(mains sockets and
on/off switches)
Rear panel ordering number:
200-582-910-NHh.
Equivalent VM600SYS order
option code: F100.
Rear panel ordering number:
200-582-911-NHh.
Equivalent VM600SYS order
option code: F110.
Rear panel ordering number:
200-582-912-NHh.
Equivalent VM600SYS order
option code: F120.
Rear panel ordering number:
200-582-963-NHh.
Equivalent VM600SYS order
option code: F630.
Intended for use with one AC-mains supply, that is,
a non-redundant external power-supply system.
Intended for use with two
AC-mains supplies, that is,
a non-redundant external
power-supply system.
vibro meter
DATA
MATRIX
2D
vibro meter
DATA
MATRIX
2D
vibro meter
DATA
MATRIX
2D
vibro meter
DATA
MATRIX
2D
