Connecting power
INSTALLATION

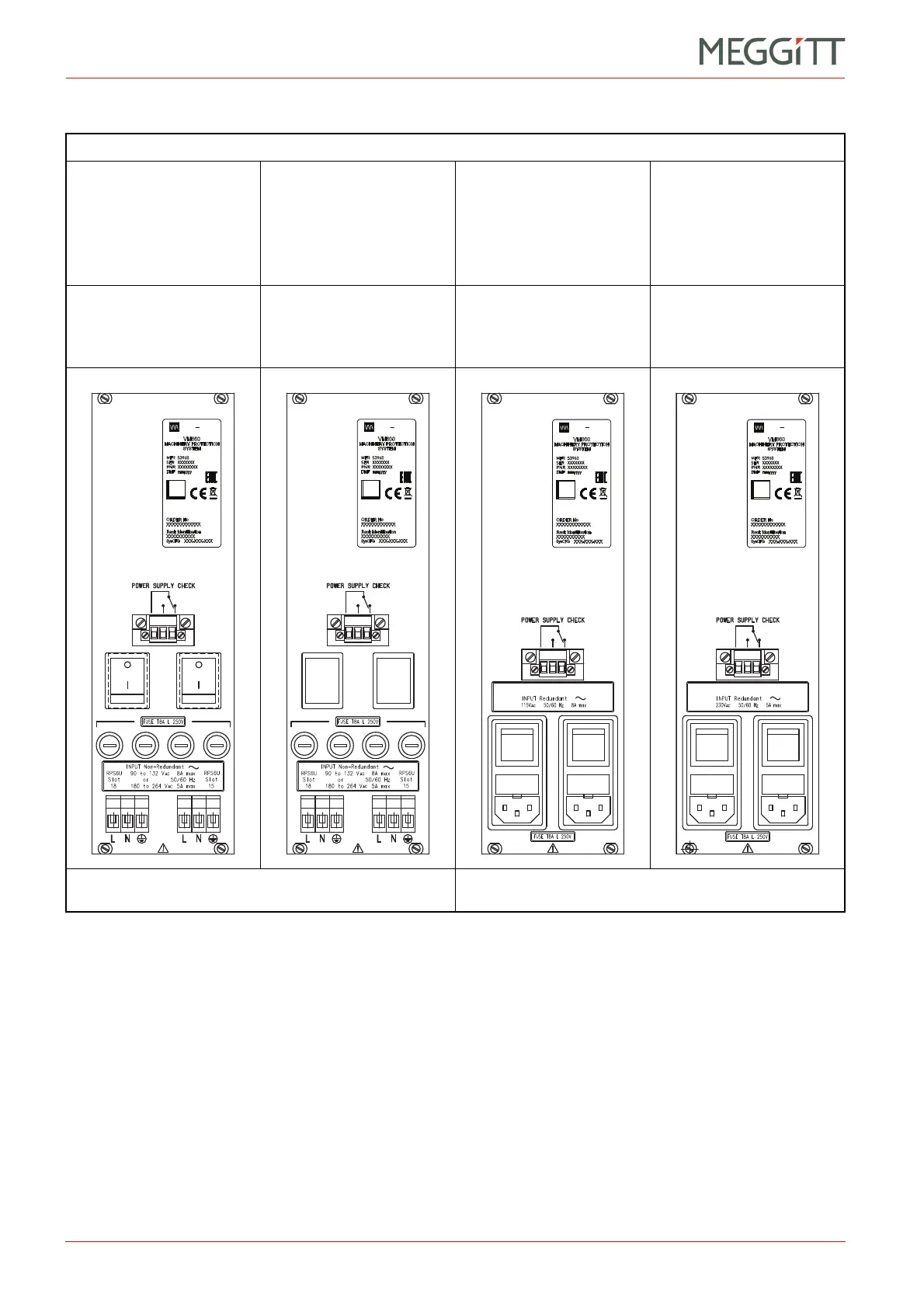

Figure 1-10: AC-input rear panels
for use with the AC-input version of the RPS6U rack power supply (continued)
AC-input rack panels (continued)
AC-input (120/230 V
AC
)
panel with individual
inputs
(screw-terminal
connectors and on/off
switches)
AC-input (120/230 V
AC
)
panel with individual
inputs
(screw-terminal
connectors)
AC-input (120 V
AC
only)
panel with individual
inputs supporting
external mains power
supply redundancy
AC-input (230 V
AC
only)
panel with individual
inputs supporting
external mains power
supply redundancy
Rear panel ordering number:
200-582-915-NHh.
Equivalent VM600SYS order
option code: F150.
Rear panel ordering number:
200-582-916-NHh.
Equivalent VM600SYS order
option code: F160.
Rear panel ordering number:
200-582-962-NHh.
Equivalent VM600SYS order
option code: F620.
Rear panel ordering number:
200-582-960-NHh.
Equivalent VM600SYS order
option code: F600.
Intended for use with two AC-mains supplies, that is,
a non-redundant external power-supply system.
Intended for use with two AC-mains supplies arranged as a
redundant external power-supply system.
vibro meter
DATA
MATRIX
2D
vibro meter
DATA
MATRIX
2D
vibro meter
DATA
MATRIX
2D
vibro meter
DATA
MATRIX
2D
