Meggitt VM600 Quick Start Manual

1 - 14 VM600 MPS quick start manual MAMPS-QS/E
Edition 2 - October 2018
Connecting power
INSTALLATION
1.4.2 DC-input rear panels
Figure 1-8 shows the DC-input rear panels used by a VM600 system rack.
NOTE: For a VM600 system rack (ABE04x) operating with an external DC-mains supply,
the DC-input panel with a common input is the standard associated rear panel.
In general, DC-input versions of the RPS6U power supply are available for use with an
external 24 V
DC
or 110 V
DC
(nominal) power supply.

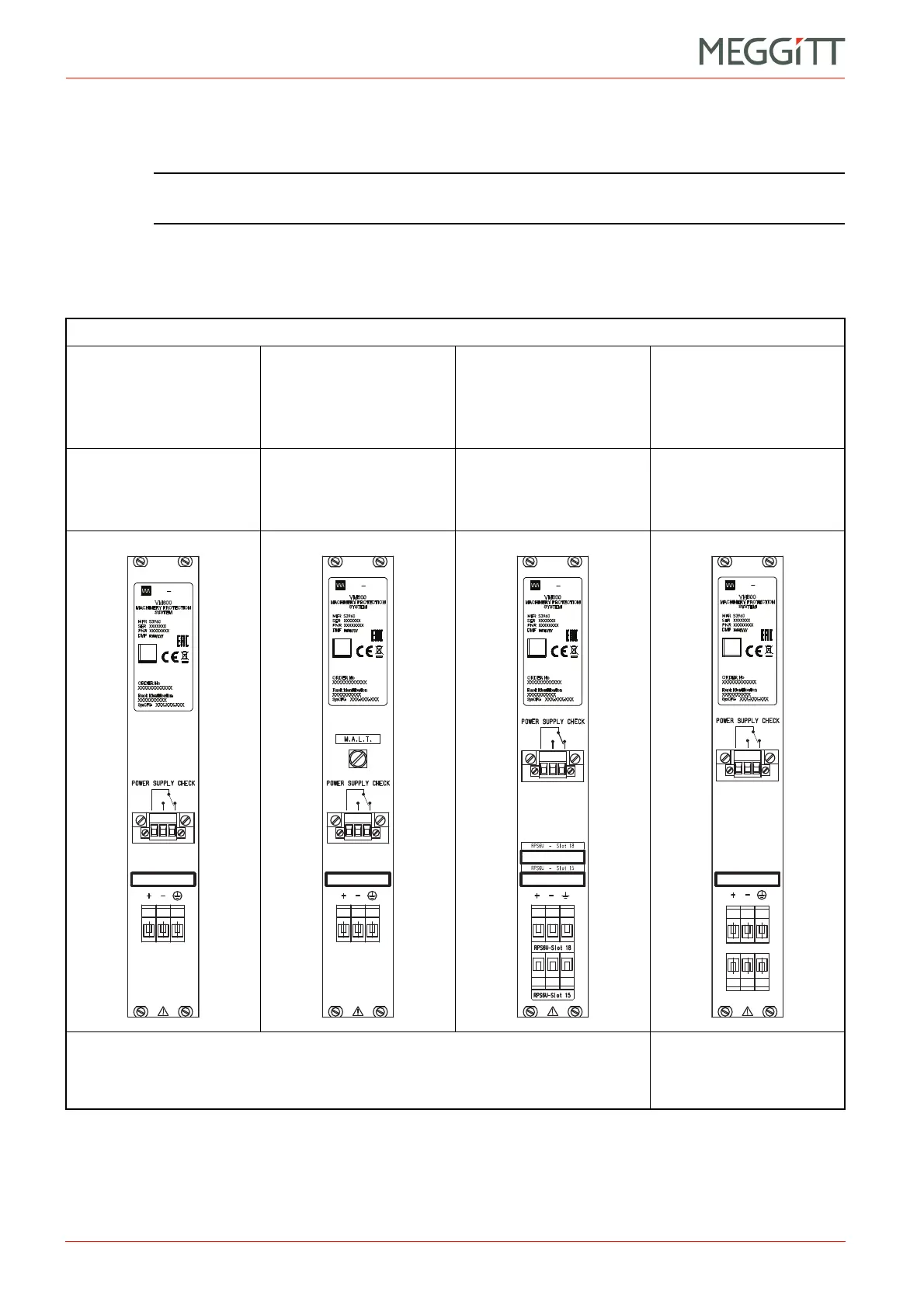

Figure 1-8: DC-input rear panels
for use with the DC-input versions of the RPS6U rack power supply
DC-input rack panels
DC-input panel with a
common input
DC-input panel with a
common input
(special earth terminal
(M.A.L.T.))
DC-input panel with
individual inputs
DC-input panel with
individual inputs
supporting external
mains power supply
redundancy
Rear panel ordering number:
200-582-920-NHh.
Equivalent VM600SYS order
option code: F200.
Rear panel ordering number:
200-582-922-NHh.
Equivalent VM600SYS order
option code: F220.
Rear panel ordering number:
200-582-993-NHh.
Equivalent VM600SYS order
option code: F930.
Rear panel ordering number:
200-582-990-NHh
(equivalent VM600SYS
order option code: F900).
Intended for use with one DC-mains supply, that is,
a non-redundant external power-supply system.
Intended for use with two
DC-mains supplies arranged
as a redundant external
power-supply system.
vibro meter
DATA
MATRIX
2D
DC input label
vibro meter
DATA
MATRIX
2D
DC input label
vibro meter
DATA
MATRIX
2D
DC input label
DC input label
vibro meter
DATA
MATRIX
2D
DC input label
