VM600 MPS quick start manual MAMPS-QS/E 1 - 17
Edition 2 - October 2018
Connecting power
INSTALLATION
1.4.4 Combined AC-input and DC-input rear panels

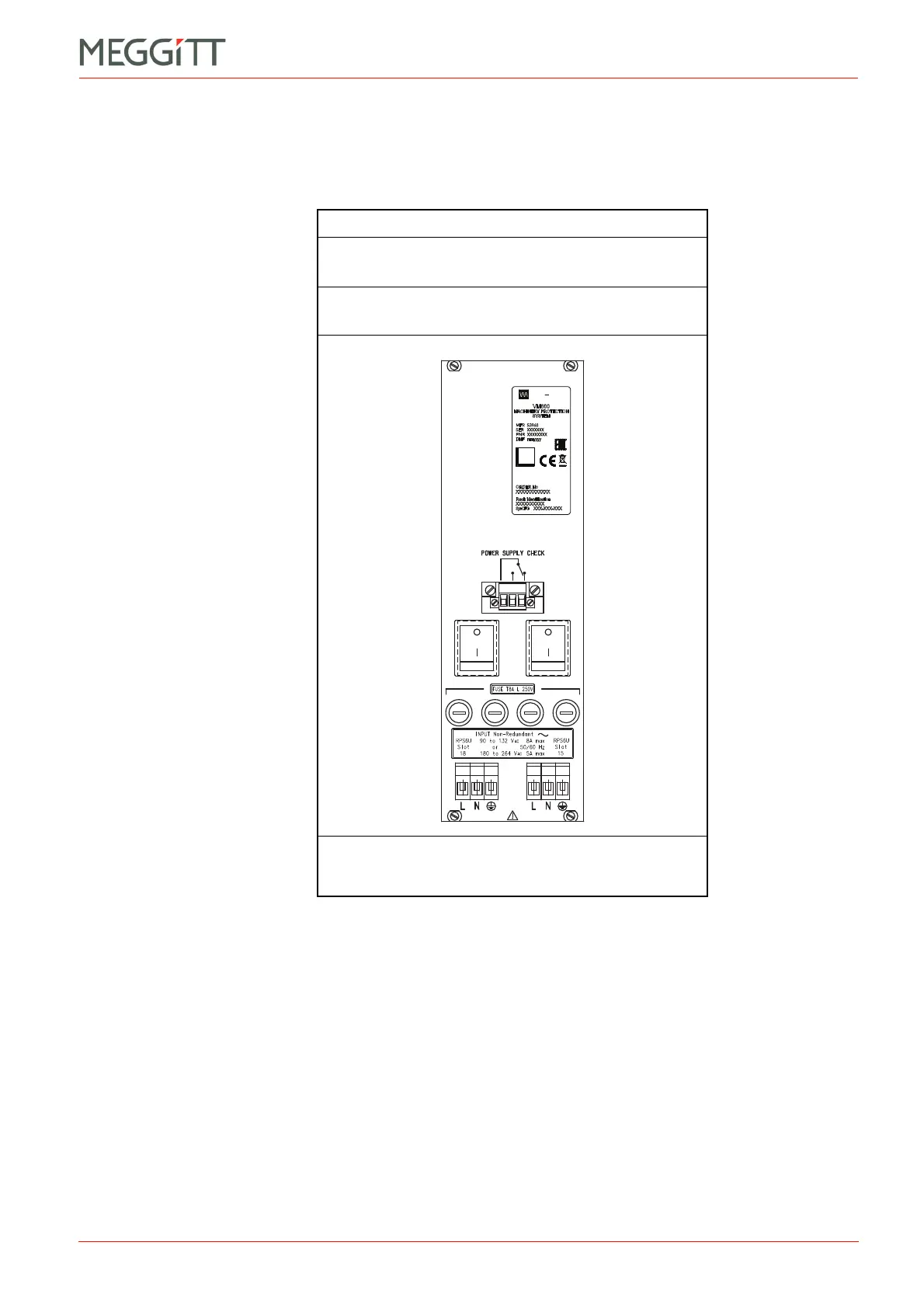

Figure 1-11 shows the combined AC-input and DC-input rear panel used by a VM600 system
rack.
Figure 1-11: Combined AC-input and DC-input rear panel
for use with an AC-input version and a DC-input version of the RPS6U rack power supply
Combined AC-input and DC-input rack panels
Combined AC-input (120/230 V
AC
) and DC-input
panel with individual inputs
Rear panel ordering number: 200-582-970-NHh.
Equivalent VM600SYS order option code: F700.
intended for use with one AC-mains (120/230 VAC) supply
and one DC-mains supply, that is, a non-redundant external
power-supply system.
vibro
meter
DATA
MATRIX
2D
