VM60
0 MPS qui
ck start
man
ual MAM
PS-Q
S/E
1
-
7
Edition 2
- Octo
ber 2018
Installi
ng a rack
INSTALLATION
Figure
1-4:
Vi

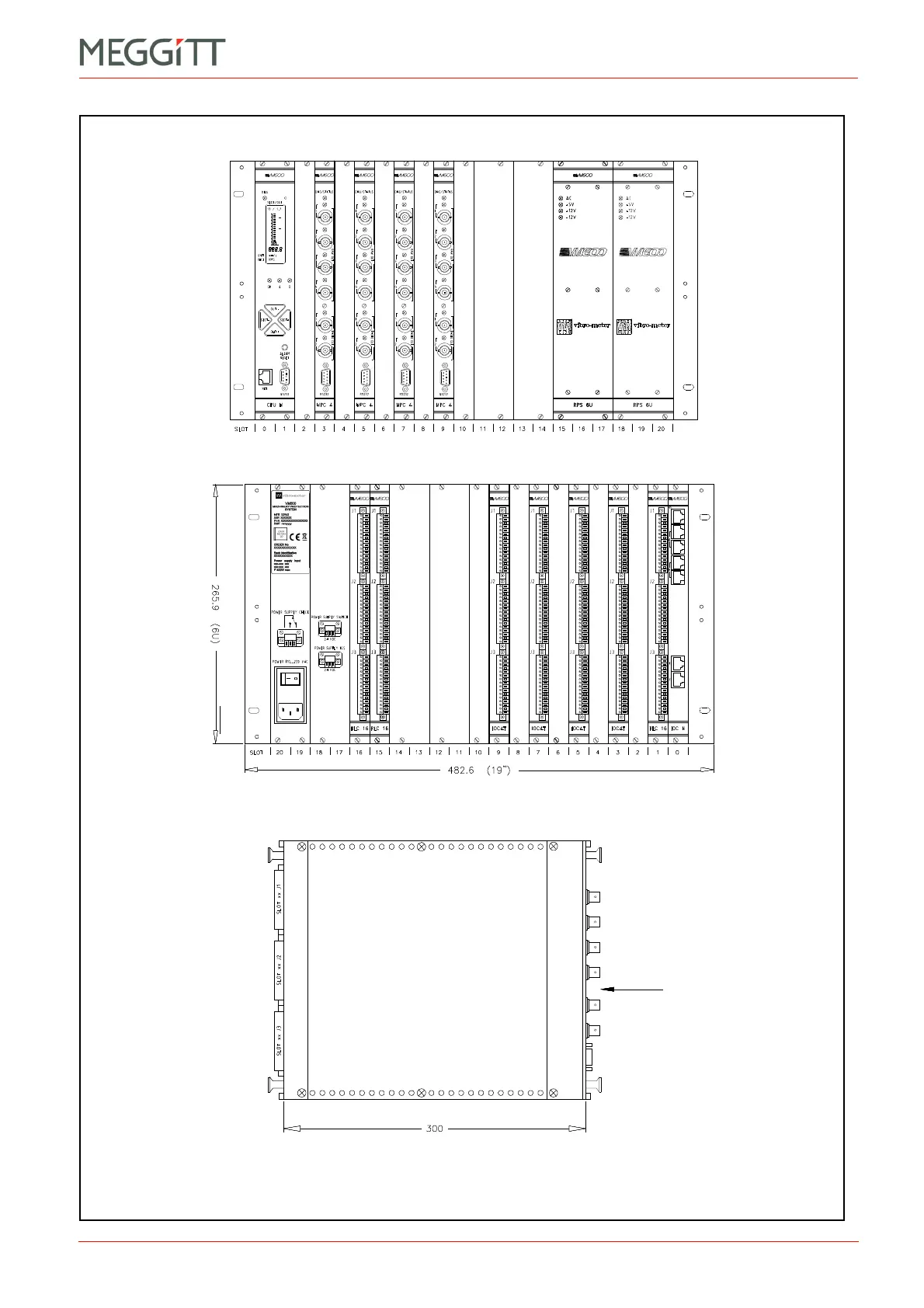

ews of a typical VM600 MPS rack (ABE040) with severa
l cards inst
alled
(machinery
protecti
on car
ds only
)
Front
Side vi
ew
Rear view
Fron
t vi
ew
(PS2)
(PS1)
18
20
Table of Contents
Revision Record Sheet
2
Preface
5
Safety
7
Table of Contents
11
1 Installation
13
Unpacking and Inspecting
13
System Overview
14
Installing a Rack
18
Ventilation
20
Circuit Breaker
22
Supply Wiring
22
Instructions for Locating and Mounting
23
Connecting Power
24
Front Panels
25
DC-Input Rear Panels
26
AC-Input Rear Panels
27
Combined AC-Input and DC-Input Rear Panels
29
Power Supply Check Relay
30
Handling Cards
32
Card Locations
32
Installation Restrictions
33
Communicating with a VM600 MPS
34
Connecting to a Computer
36
Software Configuration
36
Setting the IP Address of the CPUM Card
36
2 Operating the System
37
Card Features and Operation
37
MPC4 Machinery Protection Card
37
IOC4T Input/Output Card
37
AMC8 Analog Monitoring Card
40
IOC8T Input/Output Card
40
CPUM Modular CPU Card
43
IOCN Input/Output Card
43
RLC16 Relay Card
46
IRC4 Relay Card
46
3 Common Maintenance Procedures
49
Replacing Cards
49
Hot Swapping
49
Cards in a Stand-Alone Rack
50
Cards in a Networked Rack
50
Hot Swapping Cards in a VM600 Rack
51
Hot Swapping a Card in the Front of a VM600 Rack
51
Hot Swapping a Card in the Rear of a VM600 Rack
51
Removing Cards Safely
51
Software Configuration
53
4 Service and Support
55
Contacting Us
55
Technical Support
55
Sales and Repairs Support
55
Repairs and Returns
56
End-Of-Life Product Disposal
56
