Technical Support 1-800-345-8172 CASHFLOW SC66 Page-7
www.meiglobal.com Part # 252055066 G1
INSTALLATION

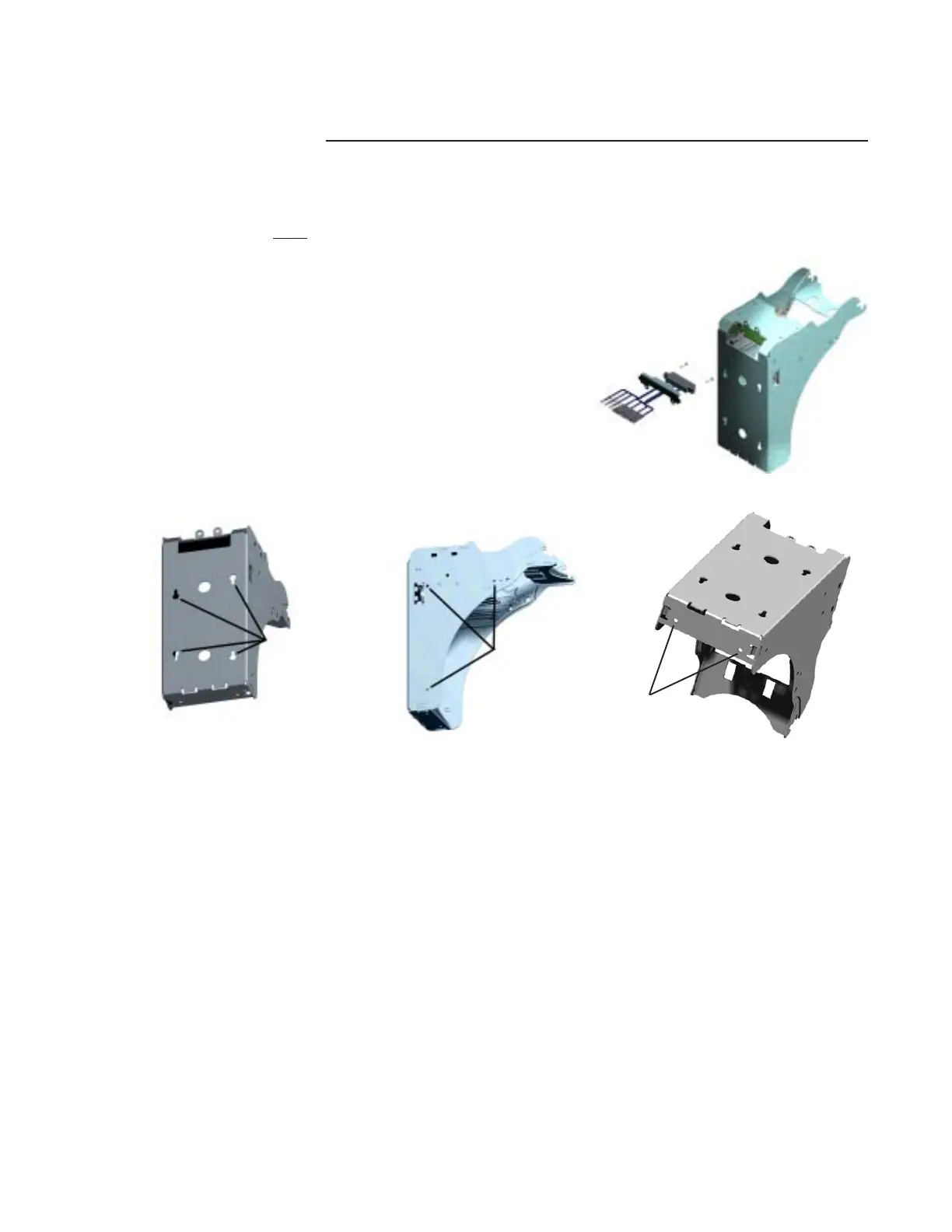

Mounting Holes
(use M4 screws)
Mounting Holes
(use M4 screws)
Bottom
Back
Side
Note: Always power down machine prior to Installation.
The cashbox does not lock to the chassis. When you remove the unit from the container or when the unit is not installed
in the machine, you must never carry the bill acceptor by the handle of the cashbox. The
cashbox may release causing the rest of the unit to fall and damage the
chassis.
Installing The Chassis
• Most models have a configuration-specific cable installed
on the back of the chassis (see Interface Manual 002850103
for more details). Connect the cable from the chassis to the
machine. Always dress all wires to avoid interference with
any equipment operation.
Note: If you have a custom configuration, you may need to contact our technical support group for assistance.
• Once the connections are made, you will need to line up the locating holes on the bottom of
the chassis with the machine’s locating pins. Then line up the mounting screw holes and insert
M4 screws through as many of the 10 mounting holes. There are three on each side of the chassis
and four located on the back. Leave screws slightly loose until the bezel is mounted and aligned
with the machine door closed. Screws must not exceed a 6mm depth through the mounting plate,
otherwise they may interfere with the removable cashbox.
Locating Holes
To Next Page
