6 Precision Time Protocol (PTP) / IEEE1588
6.1 Functionality in Slave Systems
10/100MBit
LAN
10 MHz
PPS
programmable
outputs
modulated
time code
RJ45 with
magnetics
and LEDs
PHYceiver
status LEDs
driver
circuits
FPGA
filter and
driver circuit
oscillator
DAC
microcontroller
with integrated MAC
and
progr. memory
FPGA
configuration
memory
10M/activity
100M/activity
Rx/Tx
MII interface
control
control
voltage
PWM time code
clock
adr/data
control
clock
status

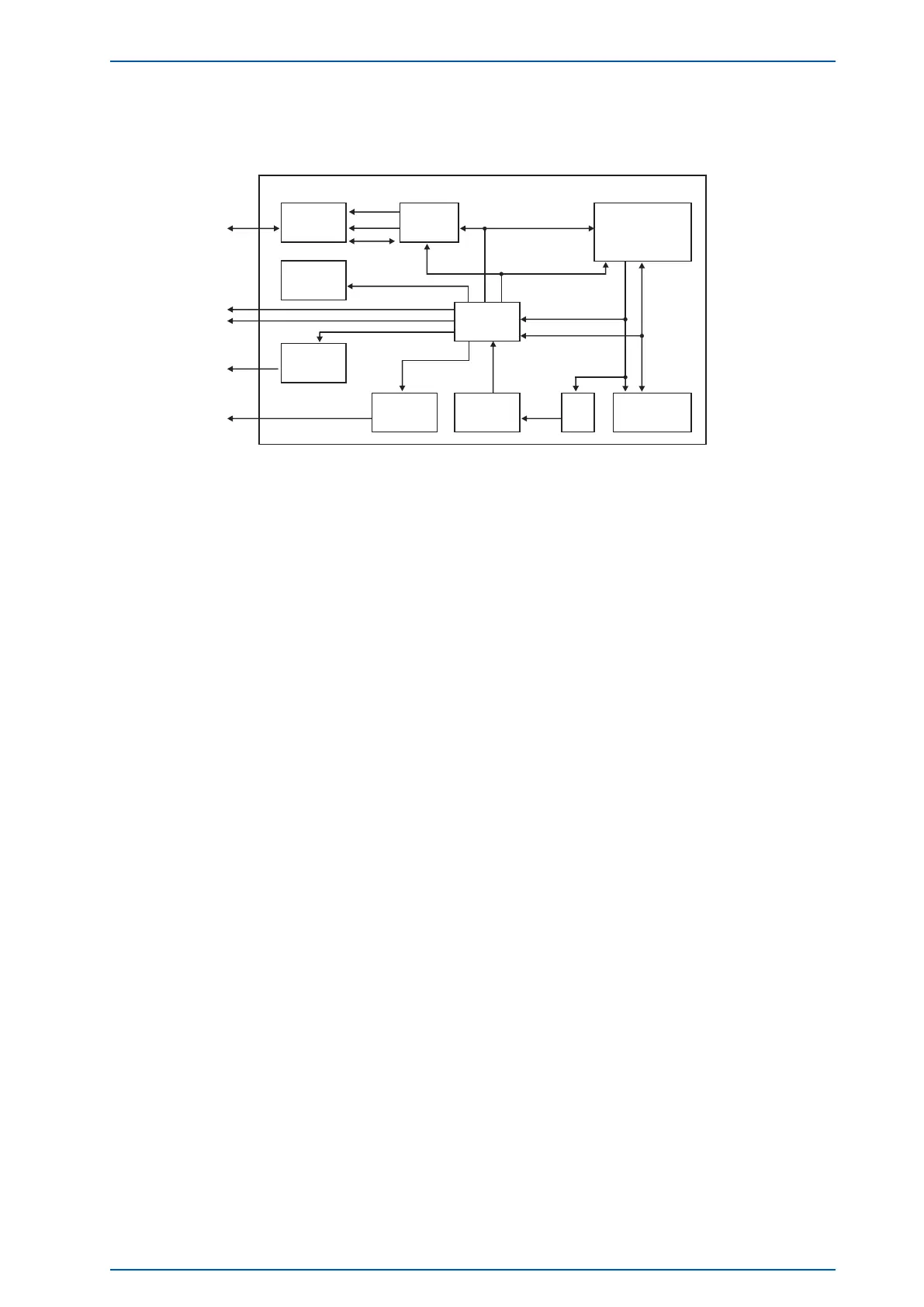

SyncBox N2X - PTP Slave
After decoding valid time information from a PTP Master, the system sets its own PTP seconds and nanoseconds
accordingly. The PTP offset calculated by the PTP driver software is used to adjust the master oscillator of the
SyncBox N2X. This allows the PTP Slave to generate very high accuracy output signals (10 MHz/1PPS/IRIG).
SyncBox N2X Date: 17th September 2019 19
