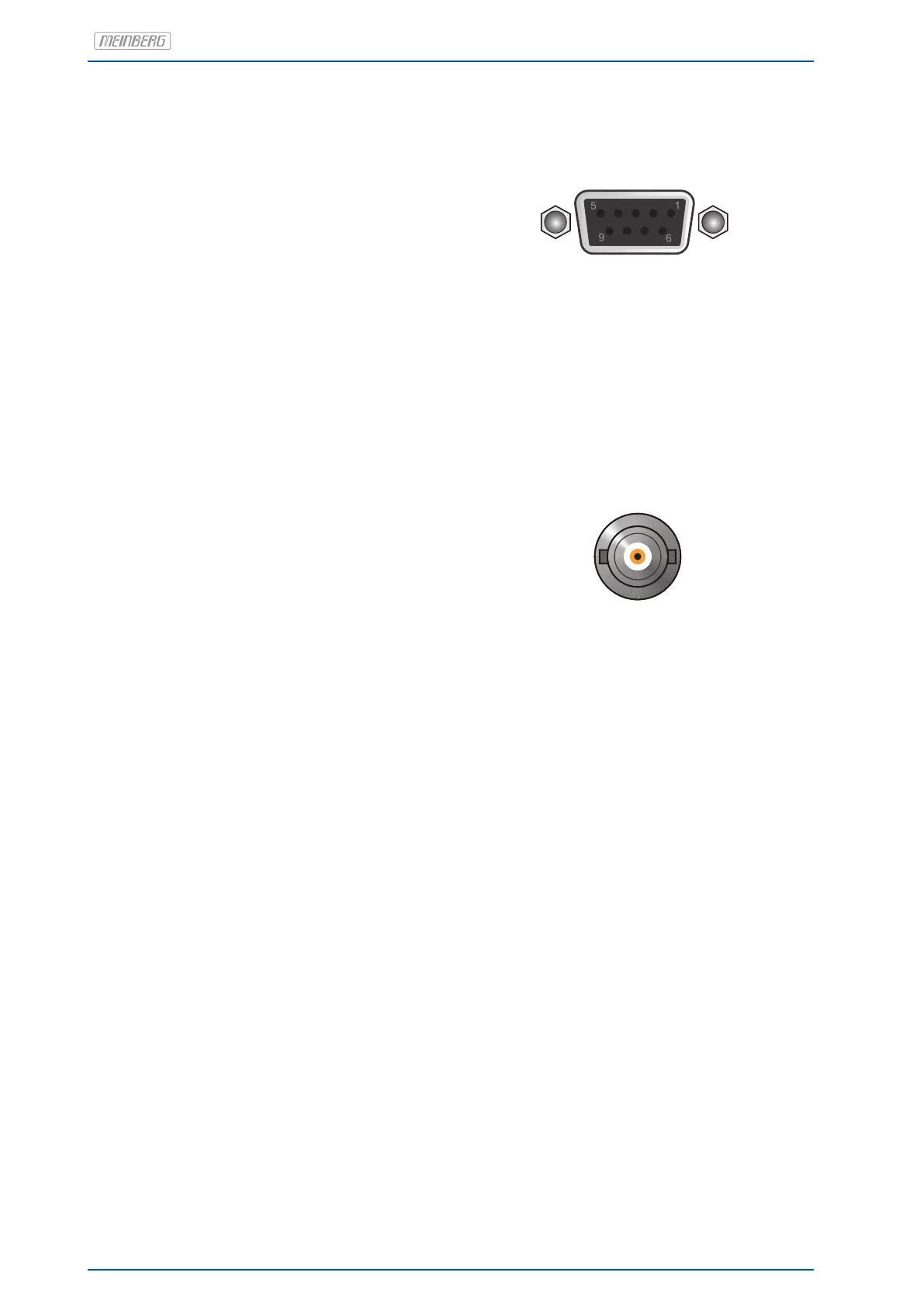

10.4 RS232 COMx Timestring / Configuration
Connector: D-SUB female 9pin.
Cabel: shielded data line
Assignment:
Pin 2: TxD (transmit)
Pin 3: RxD (receive)
Pin 5: GND (ground)
10.5 Programmable pulse Output
Level: TTL into 50 Ohm
Connector: BNC, female
Cable: shielded coax line
Pulse outputs: Pulse Per Second
Cyclic Pulse
Single Shot
Timer
Idle
All Sync
Time Sync
Position OK
DCF77 Marks
Pulse Per Hour
Pulse Per Min
46 Date: 17th September 2019 SyncBox N2X
