10 Attachment: Technical Information
10.2 SYNCBOX N2X Connectors
Name Type Signal Cable
————————————————————————————————————————
FRONT
Network RJ-45 10/100 BaseT CAT 5 network cable
Out 1 – 3 BNC connector TTL into 50 Ohm shielded coax line
(Optional outputs) ST connector FO Fiber Optic
2pin DFK Photo-MOS 2pin. MSTB clamp
9pin. SUB-D RS-232 shielded data line
REAR
COM 0 9pin. SUB-D RS-232 shielded data line
Input Voltage 5pin DFK clamp max. 20 - 60 V DC Power supply cord
(Optional power) PoE 10/100 BaseT CAT 5 network cable

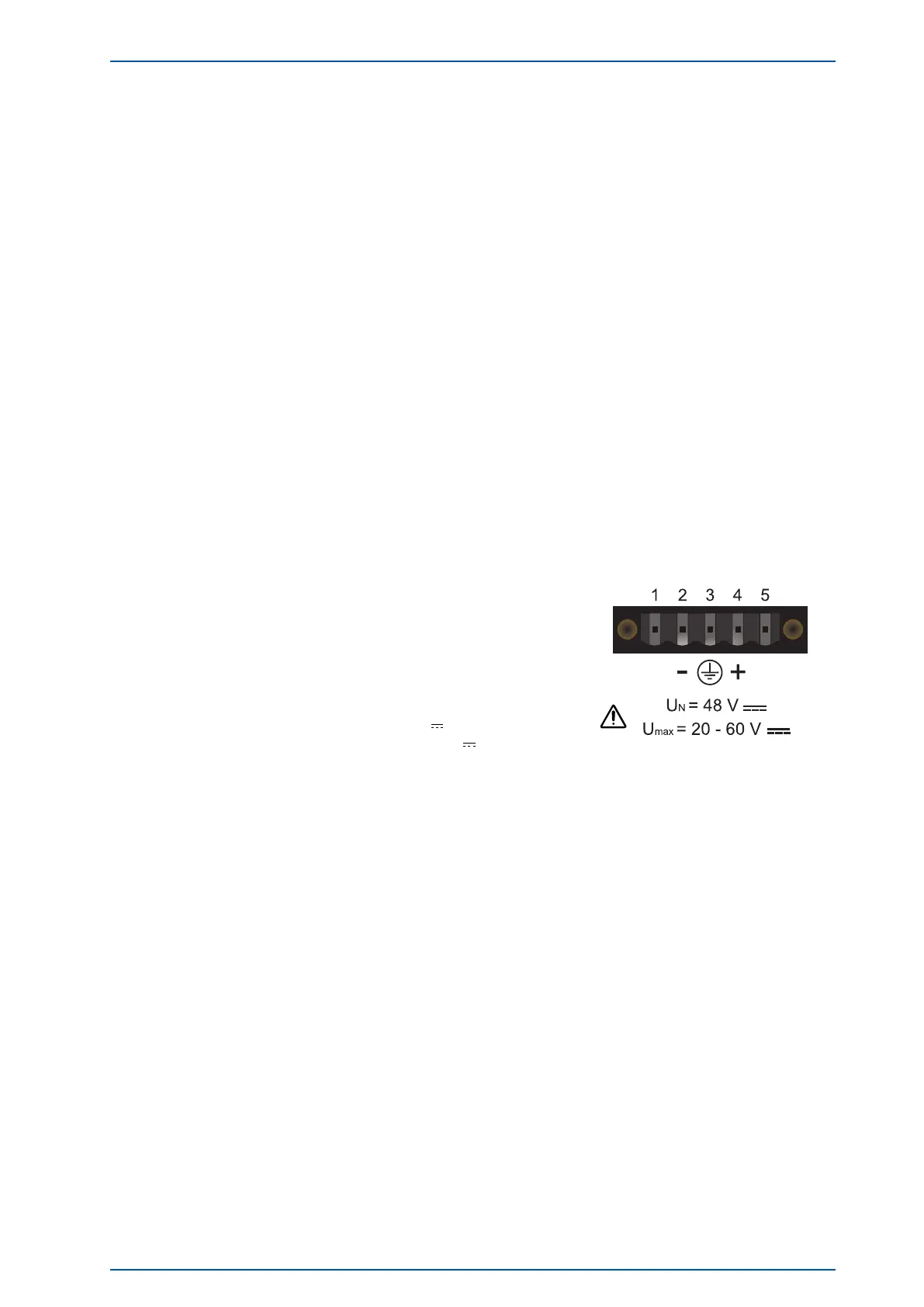

10.3 Power connect
Connector: 5pin DFK
Pin Assignment: 1: not connected
2: V
in
-
3: Protective Earth
4: V
in
+
5: not connected
Input Parameter
——————————————————————————–
Nominal voltage range: U
N
= 48 V
Maximum voltage range: U
max
= 20 - 60 V
Nominal current: I
N
= 0.22 A
Output Parameter
——————————————————————————–
Maximum power: P
max
= 10 W
Maximum heat: E
therm
= 36.01 kJ/h (34.13 BTU/h)
SyncBox N2X Date: 17th September 2019 45
