10.8.3 PMO6
Function
The expansion board PMO6 decouples pulses or signals by PhotoMOS Relays. The circuit inputs are connected
to the TTL output.
Technical Specifications
INPUT: TTL (e.g. PPS; PPM; progr. pulses out)
Technical details PMO6
LOAD
VOLTAGE: 250 V AC/DC
LOAD
CURRENT: 150mA (Peak AC, DC)
TOTAL
POWER
DISSIPATION: 410mW
ISOLATION
VOLTAGE: 1.500V AC
SWITCHING
SPEED: turn on time: 180µs
turn off time: 70µs

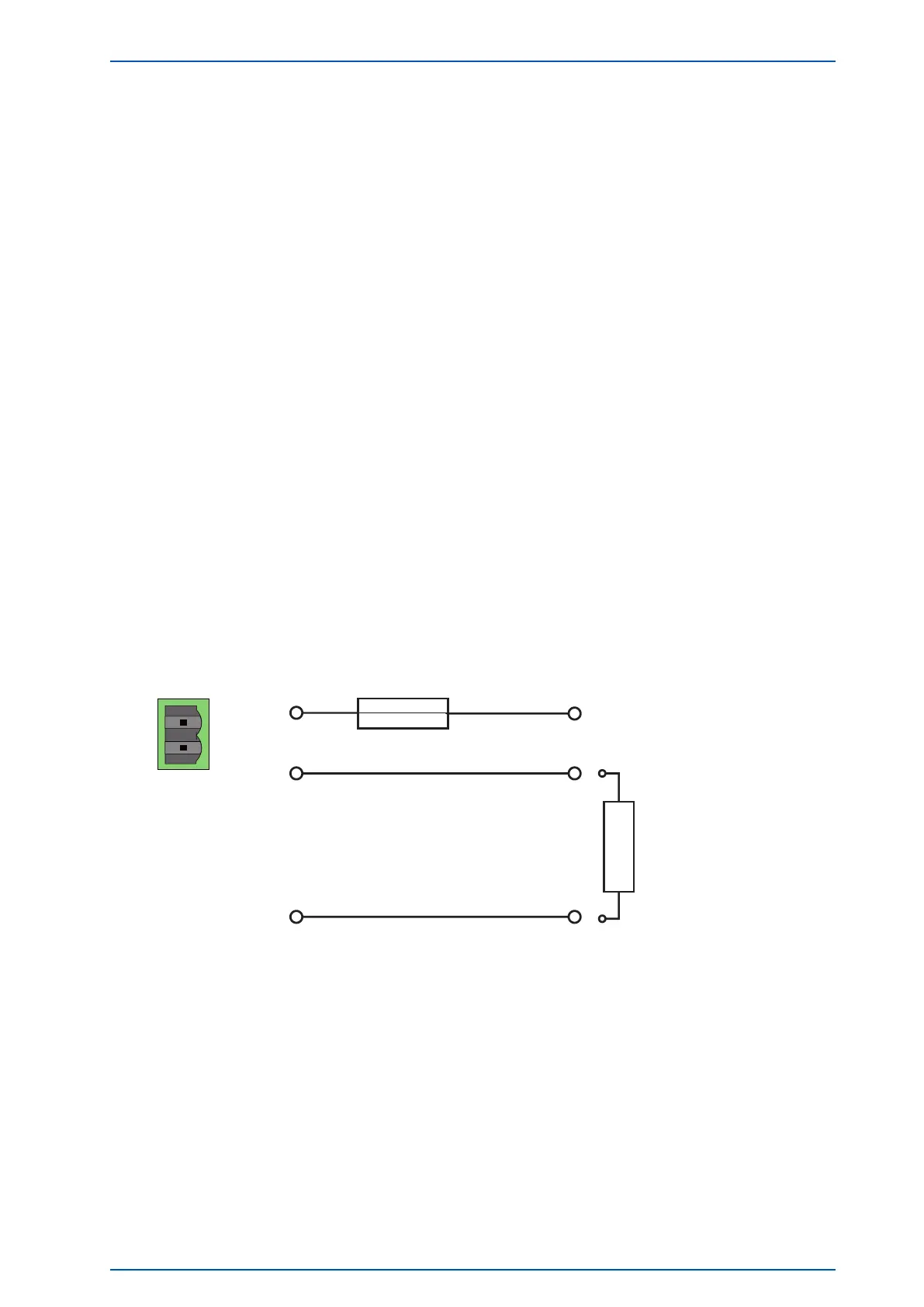

Vext +24V DC
Fuse
Vext GND
2
(CO)
1
(NO)
Load
SyncBox N2X Date: 17th September 2019 49
