10.8 SyncBox N2X - optional outputs

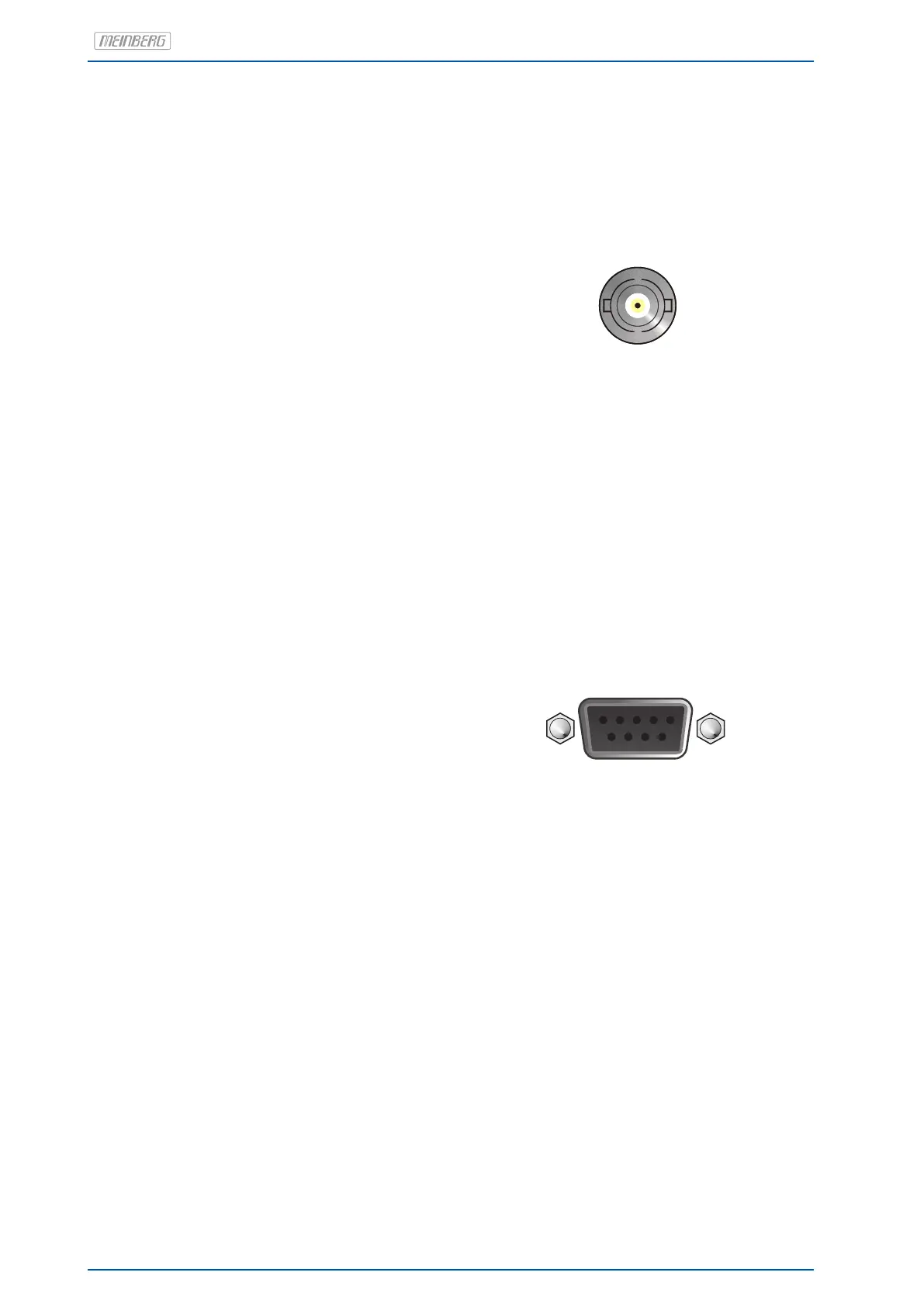

10.8.1 Fiber optic - Programmable pulse Output
Output: Fiber optic output, 850nm
Connector: ST-connector
Cable/Connection: GI 50/125µm or 62,5µm gradient fibre
Pulse outputs: Pulse Per Second
Cyclic Pulse
Single Shot
Timer
Idle
All Sync
Time Sync
Position OK
DCF77 Marks
Pulse Per Hour
Pulse Per Min
Out x
10.8.2 Programmable pulse Output
Level: TTL
Connector: 9pin. D-SUB, female
Pin assignment:
Pin 2: Signal (Programmable pulse)
Pin 5: GND (Ground)
Cable: shielded data line
Pulse outputs: Optional
Pulse Per Second
Cyclic Pulse
Single Shot
Timer
Idle
All Sync
Time Sync
Position OK
DCF77 Marks
Pulse Per Hour
Pulse Per Min
10MHz (not possible if use RS232)
Progr. Pulse
1
6
5
9
48 Date: 17th September 2019 SyncBox N2X
