Meinberg SyncBox N2X - Page 3

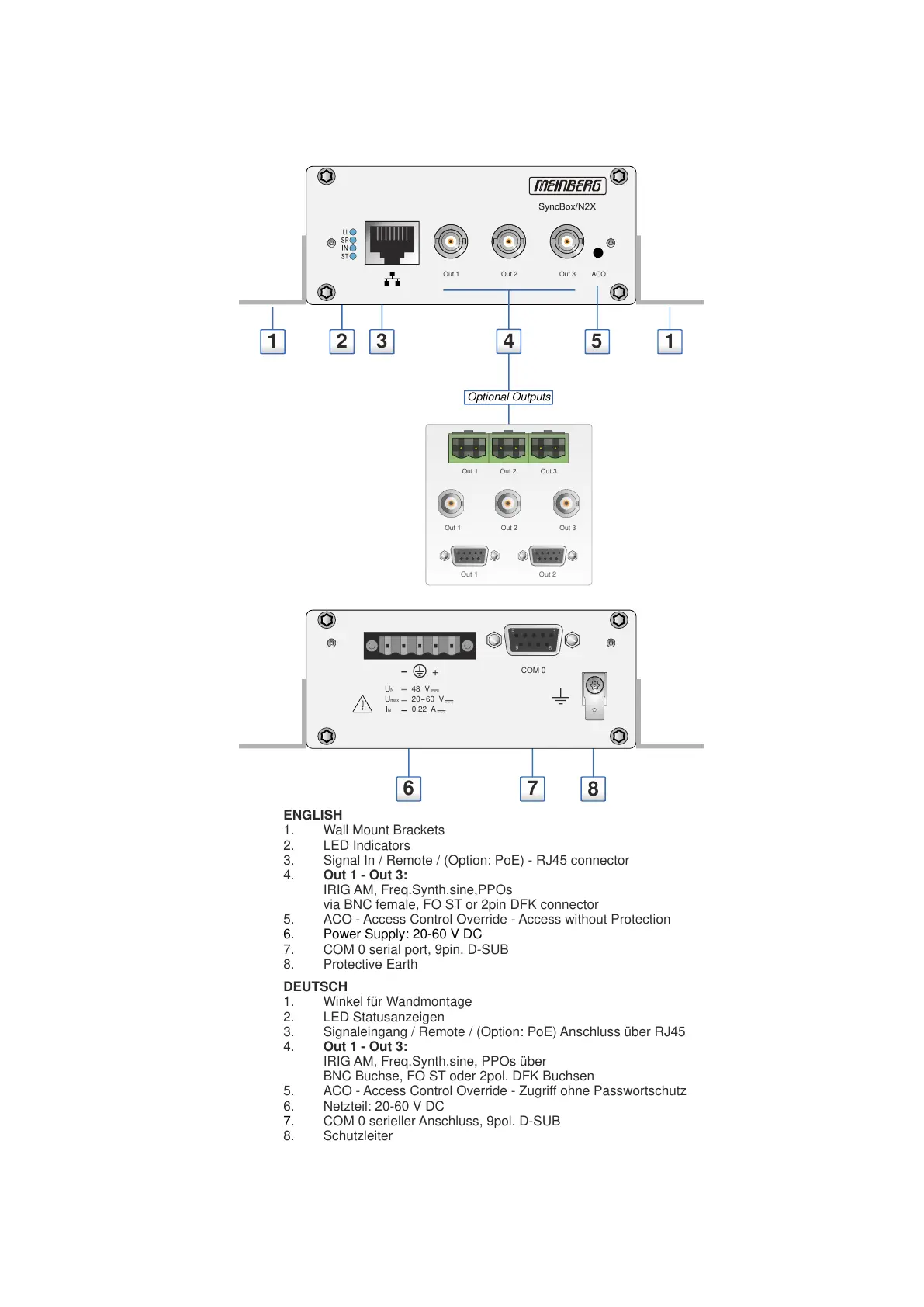

Front view (Frontansicht) SyncBox N2X
3 121
6 7
5
ENGLISH
1. Wall Mount Brackets
2. LED Indicators
3. Signal In / Remote / (Option: PoE) - RJ45 connector
4. Out 1 - Out 3:
IRIG AM, Freq.Synth.sine,PPOs
via BNC female, FO ST or 2pin DFK connector
5. ACO - Access Control Override - Access without Protection
7. COM 0 serial port, 9pin. D-SUB
8. Protective Earth
6. Power Supply: 20-60 V DC
DEUTSCH
1. Winkel für Wandmontage
2. LED Statusanzeigen
3. Signaleingang / Remote / (Option: PoE) Anschluss über RJ45
4. Out 1 - Out 3:
IRIG AM, Freq.Synth.sine, PPOs über
BNC Buchse, FO ST oder 2pol. DFK Buchsen
5. ACO - Access Control Override - Zugriff ohne Passwortschutz
6. Netzteil: 20-60 V DC
COM 0 serieller Anschluss, 9pol. D-SUB
8. Schutzleiter
7.
4
Out 1 Out 2 Out 3
Out 1 Out 2
Out 1 Out 2 Out 3
Optional Outputs
8
ACO
Out 1 Out 2 Out 3
COM 0
+
48 V
UN
Umax
IN
20 60 V
0.22 A
