EP 1 Operation Manual Melco Embroidery Systems
Attaching The Hoop To The Pantagraph
1. Hold the hoop at a slight angle (approximately 15 degrees) and slide the mounting plate into
the pantagraph opening, as shown in Figure 3-1.
2. Lower the hoop, with the mounting plate centered over the two guide pins, as shown in
Figure 3-2.
4. When the mounting plate is firmly placed on the guide pins, turn the mounting knob clock-
wise to secure the hoop, as shown in Figure 3-3.
To remove the rectangular embroidery hoop, turn the knob in the direction opposite the arrow
then remove the mounting plate from the guide pins.
NOTE: When removing a fabric from a rectangular hoop, press the fabric holder from the rear
side (lower face) of the hoop, and the fabric can be removed easily.

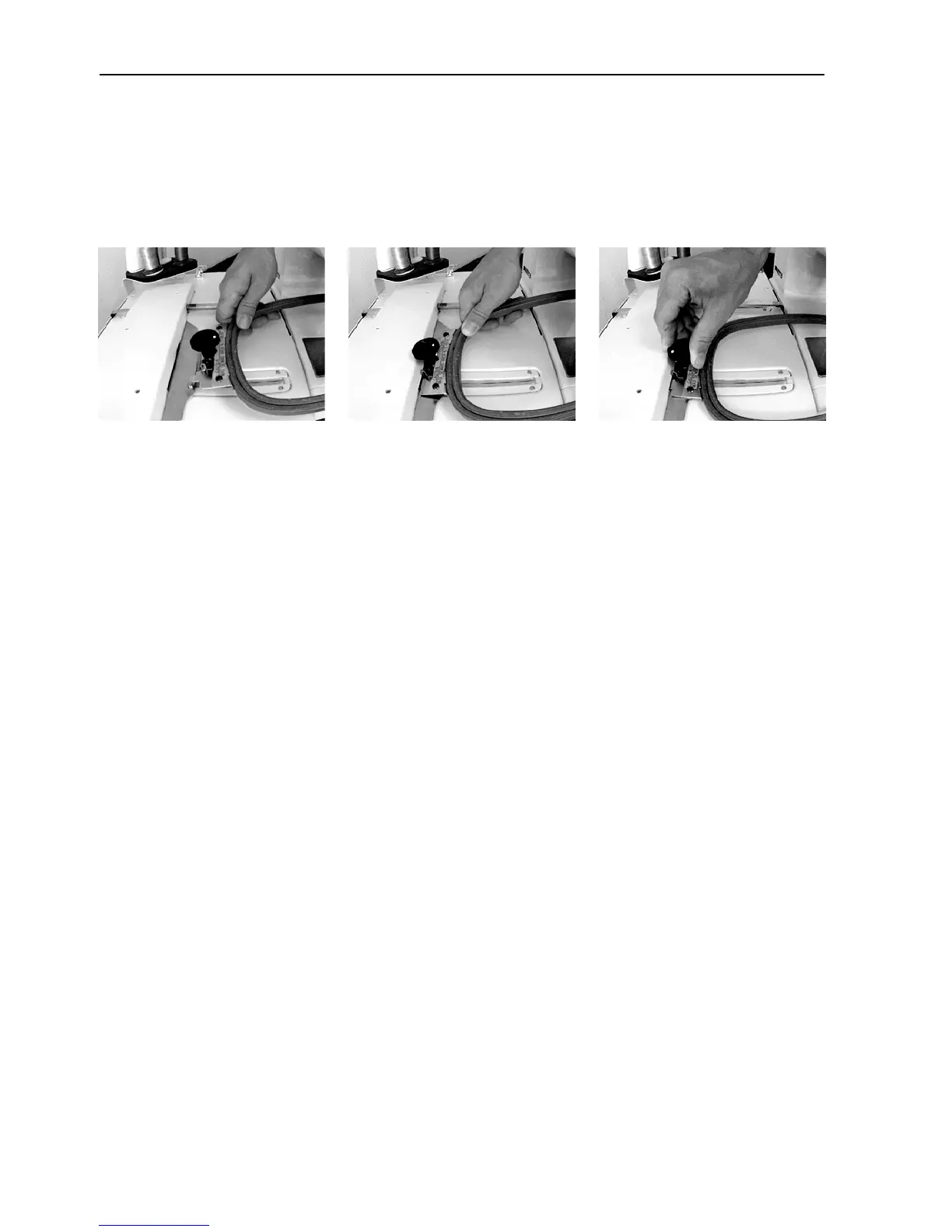

Figure 3-1 Figure 3-2 Figure 3-3
