Installation
Rev 2.2
25Mellanox Technologies

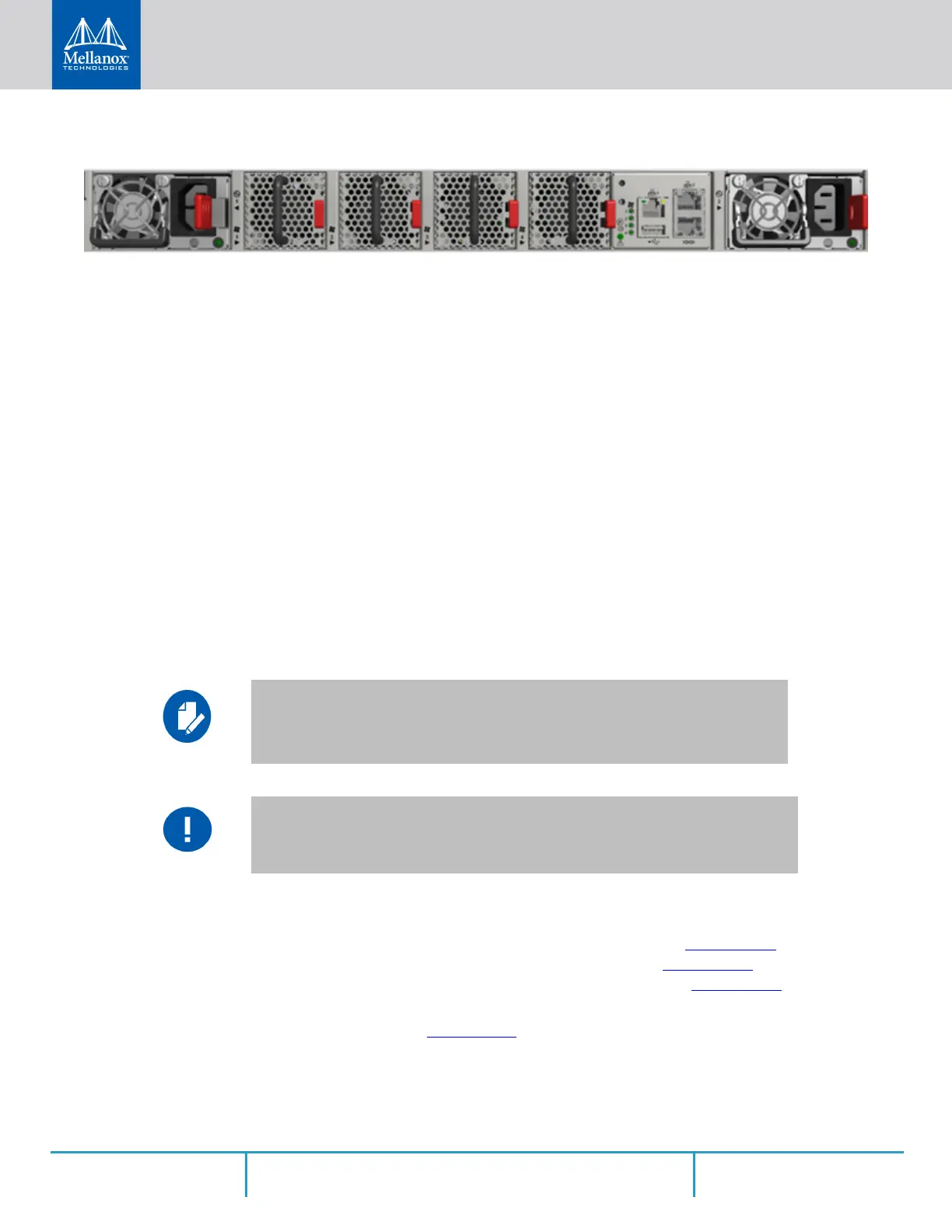

Figure 11: Air Flow Direction Marking - Connector Side Inlet to Power Side Outlet
2.4 Package Contents
Before installing your new system, unpack it and check against the parts list below that all the
parts have been sent. Check the parts for visible damage that may have occurred during shipping.
The SN2700, SN2740 and SN2410 package content is as follows:
• 1 – System
• 1 – Rail kit
• 1 – Power cable for each power supply unit – Type C13-C14
• 1 – Cable retainer for each power supply unit
• 1 – DB9 to RJ-45 2m harness
The SN2100/SN2010 package content is as follows:
• 1 – System
• 1 – Power cable for each power supply unit – Type C13-C14
• 1 – DB9 to RJ-45 2m harness
2.5 19” Systems Mounting Options
By default, the SN2700 systems are sold with the static rail kit described in Section 2.5.1. The
SN2410 and SN2740 systems are sold with the static rail kit described in Section 2.5.3. For the
telescopic rail kit installation instructions (can be used with SN2700 only), see Section 2.5.2.
The SN2100/SN2010 system is sold without a rail kit. A designated rail kit can be purchased sep-
arately. For installation instructions, see Section 2.5.4.
A designated rail kit for the SN2100/SN2010 systems can be purchased separately.
If anything is damaged or missing, contact your sales representative at support@mella-
nox.com.
