Memmert VO49 - Page 11

D39374 | Date 08/2018 11
Design and description
1
3
2
5
4
6
9
7 8
0
0
N
2
He
Ne
Ar
Kr
Xe
9
9
9
9
9

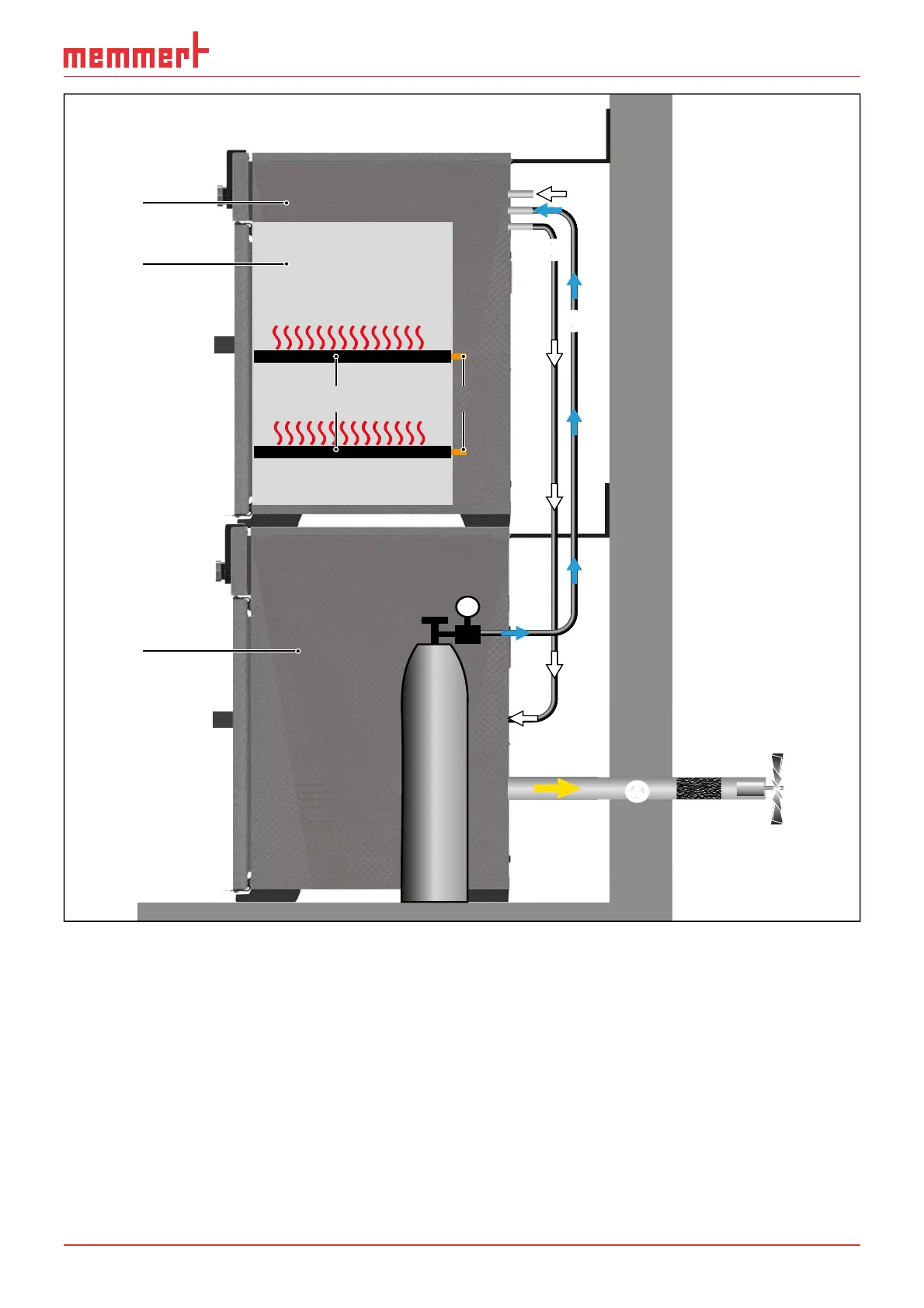

Fig. 3 Function of vacuum ovens VO in conjunction with a pump module
1 VO
2 Vacuum pump
3 VO working chamber
4 Hose connection between VO and vacuum pump
5 Gas cylinder ( inert gas, optional)
6 Inert gas supply
7 Thermoshelves
8 Contacting the Thermoshelves in the appliance
9 Suction (required if toxic gases or vapours may be produced as a result of the process)
10 Wall mounting (tilt protection, see page 23)
